Husqvarna Lr125 - Transmission

Husqvarna Lr125 - Transmission

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna Lr125 - Transmission

Husqvarna Lr125 - Transmission

Description

Husqvarna Lr125

Model Year - 1995-03

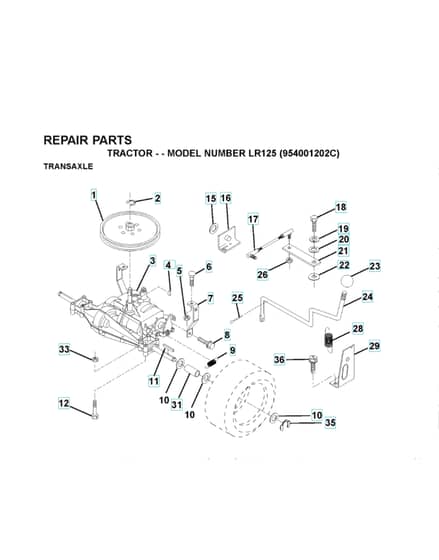

Transmission - Parts Diagram

Be the first to review this product

0 product questions

Ref.		Img.	Part No.	Details
	1		HV532 12 33-85 Out of stock	Pulley		£70.20 £58.50
	2		HV812 00 00-28 Out of stock	Clip		£0.54 £0.45
	4		HV532 12 50-96 Out of stock	Woodruff Key		£6.78 £5.65
	6		HV872 14 05-06 Out of stock	Bolt		£4.20 £3.50
	9		HV532 14 66-82 Out of stock	Spring		£3.38 £2.82
	10		HV532 12 17-49 Out of stock	Washer		£2.78 £2.32
	11		HV532 12 35-83 Out of stock	Key		£6.16 £5.13
	19		HV596 02 98-01 Out of stock	Washer		£2.44 £2.03
	23		HV532 12 12-74 Out of stock	Knob		£8.95 £7.46
	25		HV876 02 04-16 Out of stock	Split Pin		£1.86 £1.55
	28		HV532 12 80-85 Out of stock	Spring		£3.25 £2.71
	33		HV596 32 26-01 Out of stock	Nut		£3.14 £2.62
	35		HV812 00 00-01 Out of stock	Retainer Ring		£0.60 £0.50

Description

Husqvarna Lr125

Model Year - 1995-03

Transmission - Parts Diagram
