Husqvarna LC347 V - Engine

Name: Husqvarna LC347 V - Engine
SKU: lc347_v_2016_11_engine-group
Price: 1.08 GBP
Availability: InStock

Description

Husqvarna LC347 V

Model Year - 2016-11

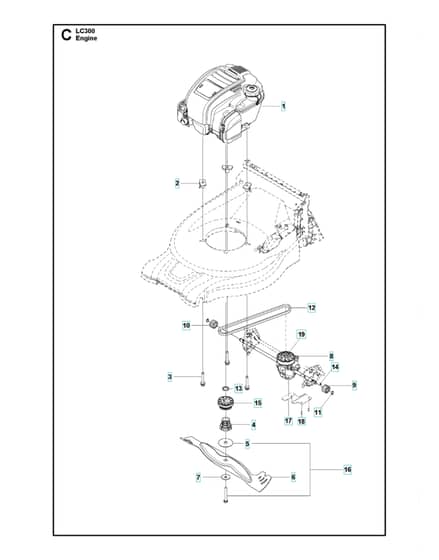

Engine - Parts Diagram

	Part No.	Details
2	HV578 29 51-01 Out of stock	Sleeve	£6.40 £5.33
3	HV578 29 48-01 Out of stock	Screw Ehhft	£2.20 £1.83
4	HV501 88 28-02 Out of stock	Blade Support	£23.32 £19.43
5	HV503 25 94-01 In stock	Washer	£3.29 £2.74
6	HV588 27 55-10 Out of stock	Blade	£31.04 £25.87
7	HV503 33 25-01 Out of stock	Spring	£5.51 £4.59
8	HV589 69 33-01 Out of stock	Transmission Kitdelivered With 4Pcs Circlips	£144.35 £120.29
9	HV501 86 97-02 Out of stock	Pinion	£12.38 £10.32
10	HV501 86 97-01 Out of stock	Pinion	£12.38 £10.32
12	HV589 32 46-02 Out of stock	Belt	£22.76 £18.97
13	HV582 35 69-02 Out of stock	Sleeve	£6.05 £5.04
14	HV582 04 11-01 Out of stock	Pin	£1.30 £1.08
15	HV582 17 89-01 Out of stock	Pulley Assy	£34.01 £28.34
16	HV589 69 22-01 Out of stock	Boltkit With Washer	£8.45 £7.04
18	HV502 43 53-01 Out of stock	Screw Itxpant	£1.36 £1.13
