Husqvarna LC 353VI - Engine

Name: Husqvarna LC 353VI - Engine
SKU: lc_353vi_engine-group
Price: 1.08 GBP
Availability: InStock

Description

Husqvarna LC 353VI

Model Year -

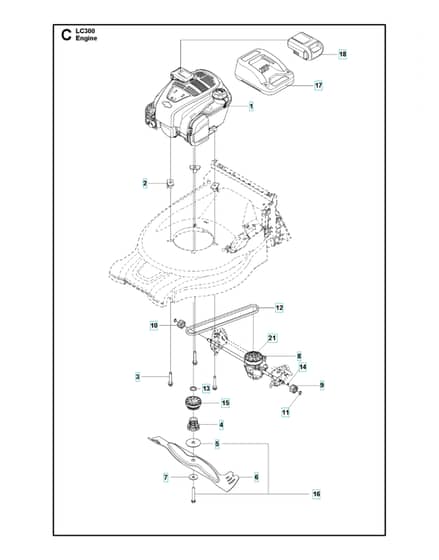

Engine - Parts Diagram

	Part No.	Details
2	HV578 29 51-01 Out of stock	Sleeve	£6.40 £5.33
3	HV578 29 48-01 Out of stock	Screw Ehhft	£2.20 £1.83
4	HV582 28 69-01 Out of stock	Blade Support	£26.60 £22.17
5	HV503 25 94-01 In stock	Washer	£3.29 £2.74
6	HV579 79 72-10 Out of stock	Blade	£31.36 £26.13
7	HV503 33 25-01 Out of stock	Spring	£5.51 £4.59

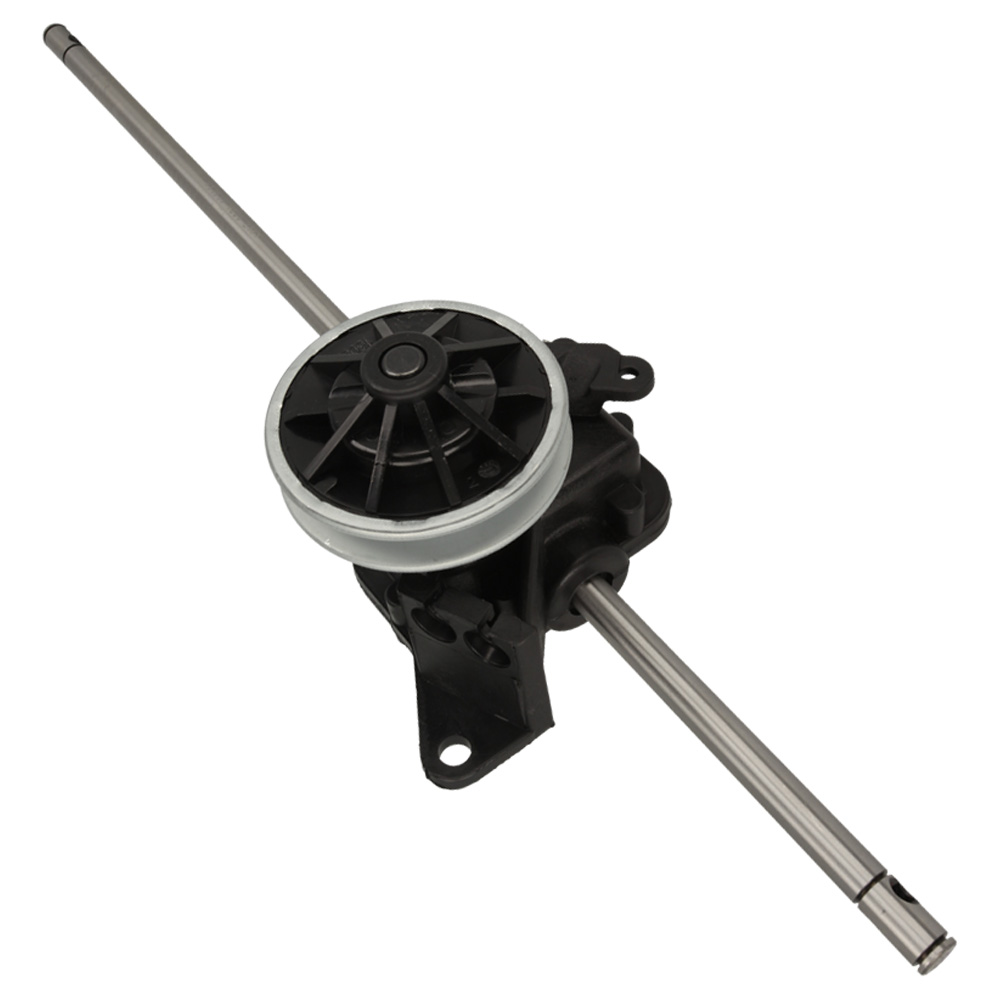

8	HV589 69 35-01 Out of stock	Transmission Kitdelivered With 4Pcs Circlips	£156.59 £130.49
9	HV501 86 97-02 Out of stock	Pinion	£12.38 £10.32
10	HV501 86 97-01 Out of stock	Pinion	£12.38 £10.32
12	HV589 32 46-05 Out of stock	Belt	£22.80 £19.00
13	HV582 35 69-02 Out of stock	Sleeve	£6.05 £5.04
14	HV582 04 11-01 In stock	Pin	£1.30 £1.08
15	HV582 17 89-01 Out of stock	Pulley Assy	£34.01 £28.34
16	HV589 69 26-01 Out of stock	Bolt	£8.87 £7.39
