Husqvarna LC 348VE - Mower Deck & Cutting Deck

Description

Husqvarna LC 348VE

Model Year -

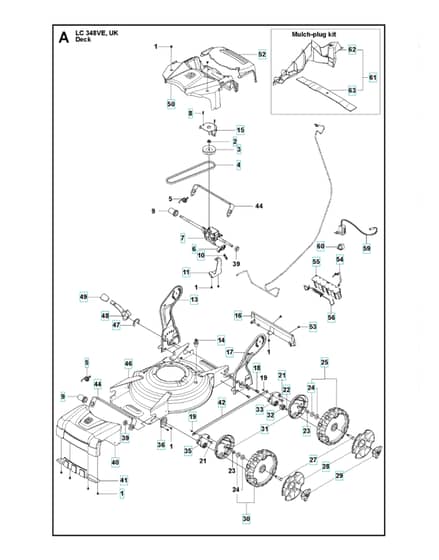

Mower Deck & Cutting Deck - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
4	HV501 98 66-01 Out of stock	Belt	£21.62 £18.02
5	HV522 02 46-01 Out of stock	Spring	£12.83 £10.69
8	HV502 43 53-01 Out of stock	Screw Itxpant	£1.36 £1.13
9	HV522 02 40-01 Out of stock	Nut	£3.73 £3.11
10	HV504 04 87-01 Out of stock	Spring	£6.10 £5.08
13	HV504 00 00-04 Out of stock	Handle Support	£54.61 £45.51
14	HV531 20 58-48 Out of stock	Connector	£7.94 £6.62
16	HV504 64 15-01 Out of stock	Skid Plate	£37.86 £31.55
17	HV504 00 32-04 Out of stock	Handle Support	£55.58 £46.32
18	HV506 55 83-02 Out of stock	Screw Ehhft	£3.43 £2.86
19	HV735 31 09-21 Out of stock	E-Clip	£0.98 £0.82
21	HV504 62 50-01 Out of stock	Shaft	£2.30 £1.92
22	HV504 70 28-01 Out of stock	Lock Ring	£1.01 £0.84
24	HV738 21 01-04 Out of stock	Ball Bearing	£6.01 £5.01
25	HV584 14 22-01 Out of stock	Wheel Assy	£25.99 £21.66
27	HV574 25 94-01 Out of stock	Screw	£7.76 £6.47
28	HV584 15 93-01 Out of stock	Hub Cap	£6.22 £5.18
29	HV584 15 94-01 Out of stock	Nut Cap	£3.97 £3.31
30	HV584 61 16-01 Out of stock	Wheel Assy	£21.66 £18.05
31	HV504 62 41-01 Out of stock	Dust Cover	£13.43 £11.19
32	HV544 34 23-01 Out of stock	Pinion	£10.22 £8.52
33	HV504 70 98-04 Out of stock	Link Arm Assy	£27.14 £22.62
35	HV504 70 98-02 Out of stock	Link Arm Assy	£32.95 £27.46
36	HV504 62 49-01 Out of stock	Bracket	£8.81 £7.34
39	HV505 52 10-01 Out of stock	Nut	£6.73 £5.61
40	HV583 90 18-01 Out of stock	Front Cover Assy	£36.80 £30.67
42	HV504 61 55-02 Out of stock	Rod	£16.54 £13.78
46	HV501 37 55-03 Out of stock	Chassis	£194.48 £162.07
47	HV735 31 36-21 Out of stock	Lockwasher	£1.69 £1.41
48	HV504 83 82-01 Out of stock	Lever	£9.38 £7.82
49	HV522 59 85-01 Out of stock	Knob	£8.39 £6.99
50	HV505 10 94-02 Out of stock	Rear Cover	£30.76 £25.63
53	HV502 43 52-01 Out of stock	Screw Itxpantt	£1.63 £1.36

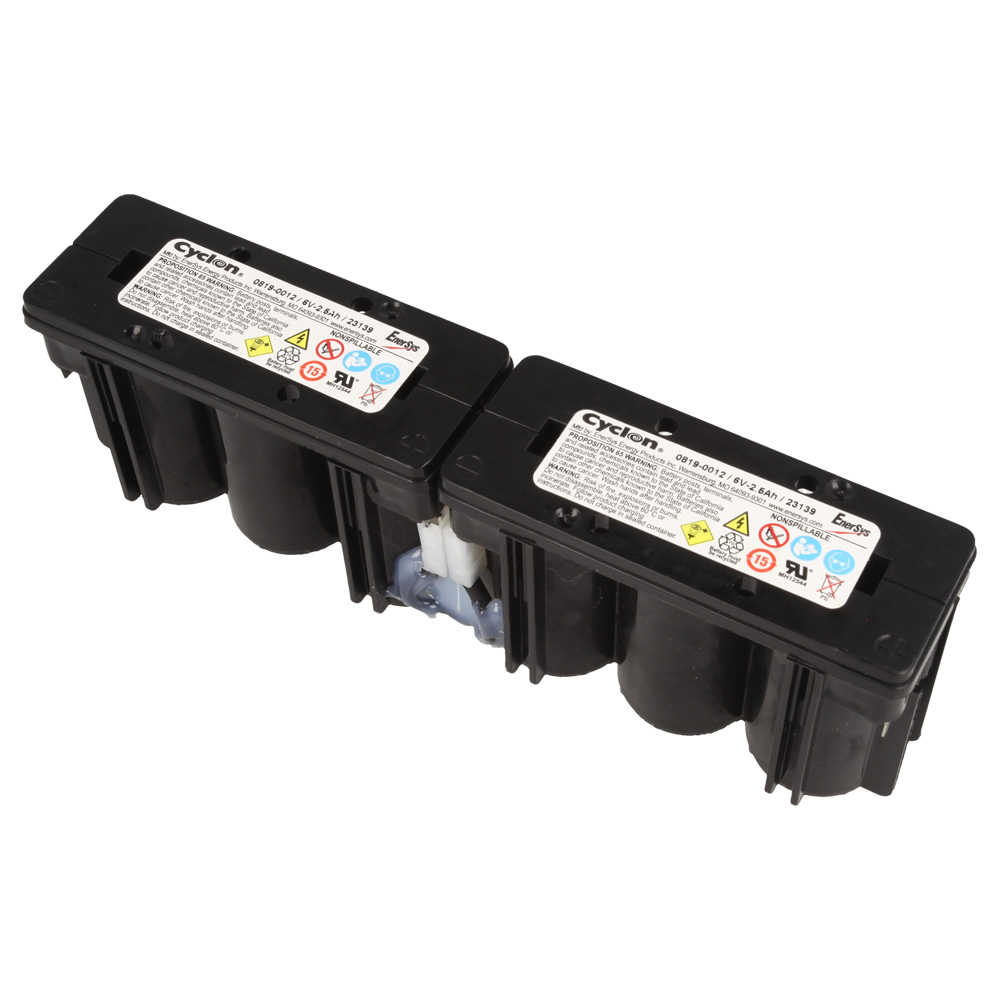

55	HV515 99 63-01 Out of stock	Battery	£64.88 £54.07
56	HV575 44 14-01 Out of stock	Wire Assy	£19.56 £16.30
60	HV574 65 80-01 Out of stock	Adapter	£14.87 £12.39
62	HV504 13 71-01 Out of stock	Mulch Plug	£42.85 £35.71
63	HV502 88 13-10 Out of stock	Blade	£31.34 £26.12
