Husqvarna LB448S - Mower Deck & Cutting Deck

Name: Husqvarna LB448S - Mower Deck & Cutting Deck
SKU: lb448s_mower_deck_cutting_deck-group
Price: 0.59 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna LB448S - Mower Deck & Cutting Deck

Description

Husqvarna LB448S

Model Year - -

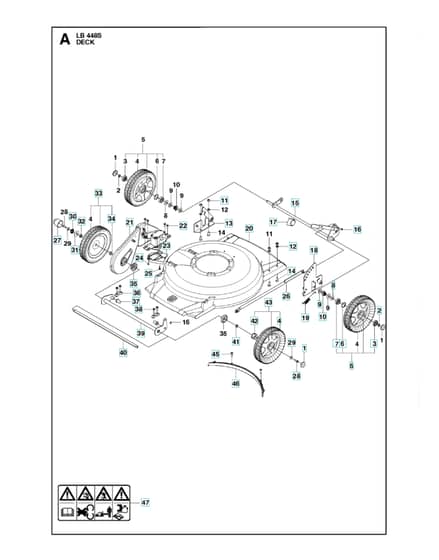

Mower Deck & Cutting Deck - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HV503 27 51-01 Out of stock	Hub Cap	£4.00 £3.33
2	HV504 45 83-01 Out of stock	Circlip	£2.56 £2.13
5	HV503 27 54-02 Out of stock	Wheel Assy	£28.90 £24.08
6	HV504 46 18-01 Out of stock	Spacer Ring	£3.53 £2.94
7	HV503 24 29-01 Out of stock	Ball Bearing6201-2Rs	£6.91 £5.76
8	HV504 45 76-01 Out of stock	Washer	£2.46 £2.05
9	HV504 45 73-01 Out of stock	Washer	£3.67 £3.06
11	HV731 23 18-01 Out of stock	Hexagon Nut	£2.99 £2.49
12	HV735 21 64-01 Out of stock	Lockwasher	£0.71 £0.59
13	HV503 26 58-02 Out of stock	Handle Support Assy	£51.97 £43.31
15	HV503 25 80-01 Out of stock	Rear Axle Assy	£65.06 £54.22
18	HV503 24 90-02 Out of stock	Index Plate Assy	£47.38 £39.48
20	HV505 43 87-05 Out of stock	Chassis	£256.84 £214.03
21	HV585 19 26-02 Out of stock	Transmission Kit	£120.60 £100.50
23	HV522 54 63-01 Out of stock	Belt Guard	£6.76 £5.63
25	HV504 46 70-01 Out of stock	Screw Itxpanm	£1.63 £1.36
26	HV503 24 95-02 Out of stock	Rod Assy	£24.18 £20.15
27	HV504 46 51-01 Out of stock	Hub Cap	£4.76 £3.97
28	HV504 45 67-01 Out of stock	Screw Ihscm	£1.87 £1.56
29	HV504 45 99-01 Out of stock	Washer	£2.69 £2.24
30	HV503 33 23-01 Out of stock	Spring	£3.79 £3.16
31	HV504 46 09-01 Out of stock	Washer	£3.67 £3.06
32	HV504 46 13-01 Out of stock	Driver	£8.21 £6.84
33	HV503 31 74-02 Out of stock	Wheel Assy	£73.33 £61.11
34	HV503 27 71-01 Out of stock	Bushing	£5.33 £4.44
35	HV504 46 36-01 Out of stock	Bushing	£6.22 £5.18
36	HV504 46 38-02 Out of stock	Bracket	£2.16 £1.80
39	HV503 26 92-01 Out of stock	Front Axle	£54.35 £45.29
42	HV503 27 64-01 Out of stock	Bushing	£6.49 £5.41
43	HV503 27 55-04 Out of stock	Wheel Assy	£29.06 £24.22
47	HV579 73 39-01 Out of stock	Decal	£2.72 £2.27
