Husqvarna K760 - Cylinder, Piston & Muffler

Husqvarna K760 - Cylinder, Piston & Muffler

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna K760 - Cylinder, Piston & Muffler

Husqvarna K760 - Cylinder, Piston & Muffler

Husqvarna K760 - Cylinder, Piston & Muffler

Description

Husqvarna K760

Model Year - - 2009-12

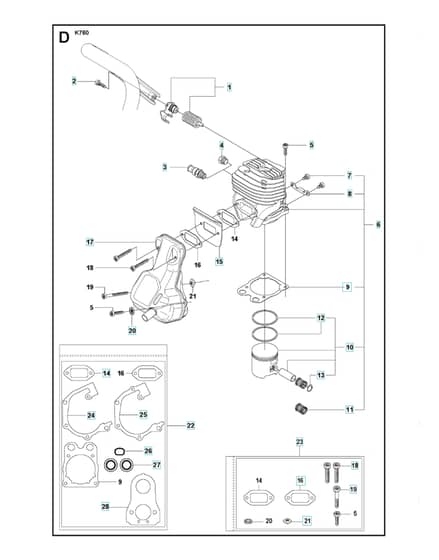

Cylinder, Piston & Muffler - Parts Diagram

Be the first to review this product

0 product questions

Ref.		Img.	Part No.	Details
	1		HV505 42 45-01 Out of stock	Antivibration Element		£17.20 £14.33
	2		HV544 06 12-01 Out of stock	Screw Itxscm		£1.99 £1.66
	3		HV503 71 53-01 In stock	Decompression Valve		£15.83 £13.19
	4		HV503 55 22-01 Out of stock	Plug		£7.99 £6.66
	7		HV503 21 53-16 Out of stock	Screw Itxscm		£1.75 £1.46
	8		HV506 36 88-01 Out of stock	Bracket		£2.56 £2.13
	9		HV506 37 67-01 Out of stock	Gasket		£4.24 £3.53
	11		HV503 25 56-01 Out of stock	Needle Bearing		£17.18 £14.32
	12		HV503 28 90-47 Out of stock	Piston Ring		£12.26 £10.22
	13		HV737 43 12-00 In stock	Snap Ring		£2.20 £1.83
	14		HV506 41 23-01 Out of stock	Gasket		£6.70 £5.58
	16		HV588 93 25-01 In stock	Gasket		£6.49 £5.41
	18		HV503 21 53-40 In stock	Screw Itxscm		£2.69 £2.24
	19		HV503 21 53-56 In stock	Screw Itxscm		£2.70 £2.25
	20		HV503 23 04-02 Out of stock	Washer		£4.12 £3.43
	21		HV503 22 65-04 Out of stock	Square Nut		£2.14 £1.78
	24		HV506 37 70-02 Out of stock	Gasket		£4.38 £3.65
	25		HV506 37 70-03 Out of stock	Gasket		£4.38 £3.65
	26		HV544 21 93-02 Out of stock	Insert		£2.28 £1.90
	27		HV503 26 02-04 Out of stock	Sealing Ring		£13.80 £11.50
	28		HV506 37 68-04 Out of stock	Gasket		£3.18 £2.65

Description

Husqvarna K760

Model Year - - 2009-12

Cylinder, Piston & Muffler - Parts Diagram
