Husqvarna K760 - Belt Guard & Pulley

Husqvarna K760 - Belt Guard & Pulley
Husqvarna K760 - Belt Guard & Pulley Husqvarna K760 - Belt Guard & Pulley Husqvarna K760 - Belt Guard & Pulley

Description

Husqvarna K760

Model Year - - 2009-12

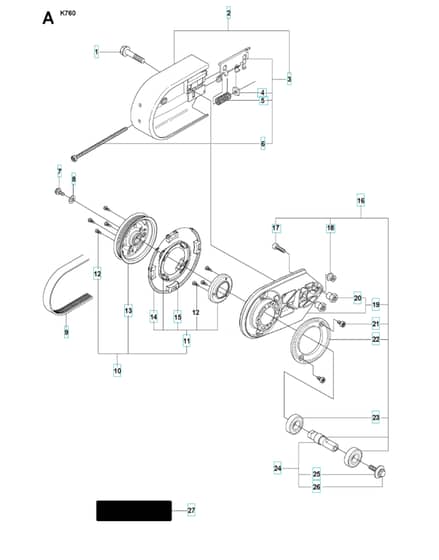

Belt Guard & Pulley - Parts Diagram

Ref. Img. Part No. Details
  1 Screw
Screw
HV506 28 44-01 Out of stock
Screw
£119.99 £99.99

  2 Belt Guardincl. 3
Belt Guardincl. 3
HV506 39 36-02 Out of stock
Belt Guardincl. 3
£38.39 £31.99

  3 Belt Tensioner Assyincl. 4 - 6
Belt Tensioner Assyincl. 4 - 6
HV506 26 66-04 Out of stock
Belt Tensioner Assyincl. 4 - 6
£21.01 £17.51

  4 Nut
Nut
HV506 40 93-01 Out of stock
Nut
£2.71 £2.26

  5 Compression Spring
Compression Spring
HV506 26 68-01 Out of stock
Compression Spring
£4.80 £4.00

  6 Screw Citxscm
Screw Citxscm
HV503 20 72-05 Out of stock
Screw Citxscm
£5.84 £4.87

  7 Screw Ehhfm
Screw Ehhfm
HV503 20 00-45 Out of stock
Screw Ehhfm
£3.74 £3.12

  8 Washer
Washer
HV503 23 01-16 Out of stock
Washer
£1.39 £1.16

  9 Non-Gen Belt
Non-Gen Belt
2318 In stock
Non-Gen Belt
£5.16 £4.30

  9 Belt
Belt
HV544 90 84-02 Out of stock
Belt
£15.12 £12.60

  10 Pulley
Pulley
HV588 47 04-03 Out of stock
Pulley
£51.26 £42.72

  11 Cassetteincl. 12. 14 - 15
Cassetteincl. 12. 14 - 15
HV505 44 54-03 Out of stock
Cassetteincl. 12. 14 - 15
£37.80 £31.50

  11 Cassetteincl. 12. 14 - 15
Cassetteincl. 12. 14 - 15
HV505 44 54-05 Out of stock
Cassetteincl. 12. 14 - 15
£36.62 £30.52

  12 Screw Ccrpant
Screw Ccrpant
HV503 21 28-10 Out of stock
Screw Ccrpant
£1.20 £1.00

  13 Pulley
Pulley
HV504 06 22-01 Out of stock
Pulley
£23.09 £19.24

  14 Draw Spring
Draw Spring
HV544 44 10-01 Out of stock
Draw Spring
£4.21 £3.51

  15 Brake Shoe
Brake Shoe
HV544 44 04-02 Out of stock
Brake Shoe
£5.84 £4.87

  16 Bearing Housingm10. Incl. 17 - 19. 21 - 23
Bearing Housingm10. Incl. 17 - 19. 21 - 23
HV581 35 17-09 Out of stock
Bearing Housingm10. Incl. 17 - 19. 21 - 23
£87.24 £72.70

  16 Bearing Housingm8. Incl. 17-19. 21-23. Uk & Jp Only
Bearing Housingm8. Incl. 17-19. 21-23. Uk & Jp Only
HV581 35 17-10 Out of stock
Bearing Housingm8. Incl. 17-19. 21-23. Uk & Jp Only
£81.72 £68.10

  17 Screw Itxscm
Screw Itxscm
HV505 57 41-16 Out of stock
Screw Itxscm
£1.98 £1.65

  18 Nut Cap
Nut Cap
HV506 14 32-01 Out of stock
Nut Cap
£9.01 £7.51

  20 Nut
Nut
HV506 28 73-01 Out of stock
Nut
£9.60 £8.00

  21 Screw Itxscm
Screw Itxscm
HV503 21 53-10 Out of stock
Screw Itxscm
£2.12 £1.77

  22 Sealing Washer
Sealing Washer
HV579 73 37-01 Out of stock
Sealing Washer
£6.60 £5.50

  22 Screen
Screen
HV506 28 84-01 Out of stock
Screen
£5.56 £4.63

  23 Ball Bearing
Ball Bearing
HV583 95 33-01 Out of stock
Ball Bearing
£15.60 £13.00

  23 Ball Bearing
Ball Bearing
HV503 25 21-01 Out of stock
Ball Bearing
£23.72 £19.77

  24 Shaftincl. 25 - 26
Shaftincl. 25 - 26
HV506 29 83-65 Out of stock
Shaftincl. 25 - 26
£61.08 £50.90

  24 Shaftm10
Shaftm10
HV588 99 24-03 Out of stock
Shaftm10
£34.80 £29.00

  25 Screwm8
Screwm8
HV581 85 52-01 Out of stock
Screwm8
£16.45 £13.71

  25 Screwm10
Screwm10
HV590 50 38-01 In stock
Screwm10
£13.09 £10.91

  27 Labeljapan Only
Labeljapan Only
HV506 30 97-05 Out of stock
Labeljapan Only
£3.94 £3.28


Description

Husqvarna K760

Model Year - - 2009-12

Belt Guard & Pulley - Parts Diagram
