Husqvarna Iz25 - Chassis Lower

Husqvarna Iz25 - Chassis Lower

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna Iz25 - Chassis Lower

Husqvarna Iz25 - Chassis Lower

Description

Husqvarna Iz25

Model Year - 2007-09

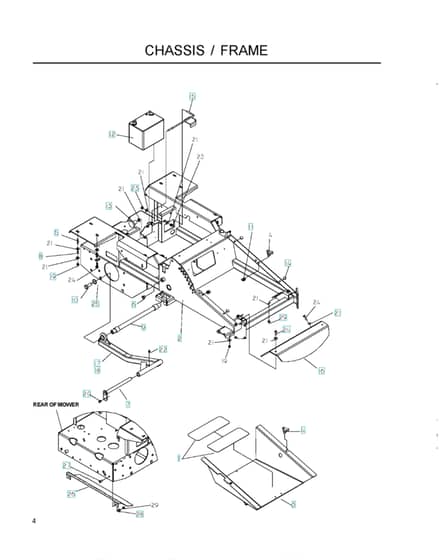

Chassis Lower - Parts Diagram

Be the first to review this product

0 product questions

Ref.		Img.	Part No.	Details
	14		HV539 10 25-87 Out of stock	Absorber		£7.76 £6.47
	19		HV539 99 07-17 Out of stock	Nut		£2.30 £1.92
	20		HV539 97 69-34 Out of stock	Screw		£3.43 £2.86
	22		HV539 97 69-98 Out of stock	Nipple		£5.66 £4.72
	23		HV539 99 01-84 Out of stock	Nut		£2.30 £1.92
	24		HV539 99 02-09 Out of stock	Screw		£3.37 £2.81
	25		HV539 99 03-33 Out of stock	Washer		£3.76 £3.13
	27		HV539 99 01-34 Out of stock	Bolt		£4.70 £3.92
	28		HV539 99 05-17 Out of stock	Washer		£3.67 £3.06
	29		HV539 97 69-79 Out of stock	Nut		£2.78 £2.32

Description

Husqvarna Iz25

Model Year - 2007-09

Chassis Lower - Parts Diagram
