Husqvarna HU600F - Frame & Engine

Name: Husqvarna HU600F - Frame & Engine
SKU: hu600f_2011_03_frame_engine-group
Price: 0.49 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Husqvarna HU600F

Model Year - 2011-03

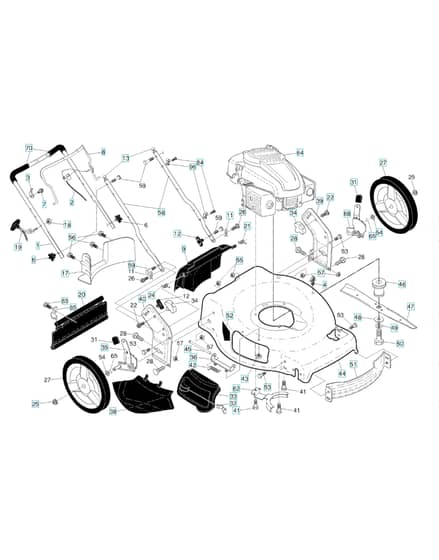

Frame & Engine - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HV532 42 76-58 Out of stock	Handle Assy	£40.36 £33.63
2	HV532 42 09-39 In stock	Cable	£18.95 £15.79
3	HV532 43 00-34 Out of stock	Bracket	£6.13 £5.11
4	HV532 14 50-06 Out of stock	Clip	£0.73 £0.61
6	HV532 18 23-98 Out of stock	Knob	£6.91 £5.76
7	HV532 75 06-34 Out of stock	Screw	£1.19 £0.99
11	HV532 42 55-75 Out of stock	Cotter	£0.59 £0.49
19	HV532 19 47-88 Out of stock	Guide	£3.43 £2.86
25	HV532 40 91-49 Out of stock	Nut	£4.51 £3.76
26	HV532 41 99-45 Out of stock	Screw	£4.98 £4.15
31	HV532 70 10-37 Out of stock	Knob	£4.72 £3.93
32	HV532 44 11-92 Out of stock	Latch	£4.30 £3.58
34	HV532 43 81-34 Out of stock	Bracket	£5.39 £4.49
35	HV532 43 11-40 Out of stock	Adjusterrh	£23.56 £19.63
36	HV532 17 57-35 Out of stock	Hinge	£6.82 £5.68
38	HV532 42 61-29 Out of stock	Deflector	£12.66 £10.55
42	HV532 19 30-00 Out of stock	Hinge	£5.84 £4.87
45	HV532 17 56-50 Out of stock	Rod	£4.51 £3.76
48	HV532 85 10-74 Out of stock	Washer	£4.06 £3.38
50	HV532 85 10-84 Out of stock	Screw	£6.26 £5.22
51	HV532 43 05-99 Out of stock	Baffle	£41.59 £34.66
53	HV817 00 05-10 Out of stock	Bolt	£2.96 £2.47
54	HV532 08 83-48 Out of stock	Washer	£1.93 £1.61
55	HV532 19 17-30 Out of stock	Nut	£1.81 £1.51
57	HV532 15 53-77 Out of stock	Nut	£2.02 £1.68
59	HV532 19 15-74 Out of stock	Screw	£4.74 £3.95
62	HV532 42 57-11 Out of stock	Belt Guard	£6.84 £5.70
65	HV532 19 74-80 Out of stock	O-Ring	£3.06 £2.55
68	HV532 43 11-41 Out of stock	Adjusterlh	£23.56 £19.63
84	HV532 42 81-24 Out of stock	Fastener	£6.05 £5.04
96	HV532 19 79-91 Out of stock	Clip	£0.60 £0.50
