Description

Husqvarna Gth3052Tf

Model Year -

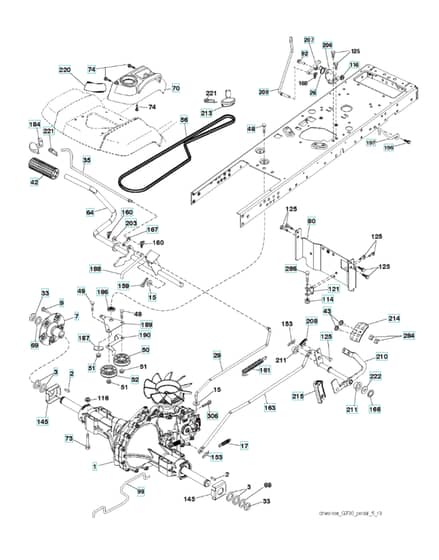

Drive - Parts Diagram

Ref. Img. Part No. Details
  9 Bolt
Bolt
HV532 14 00-80 Out of stock
Bolt
£5.65 £4.71

  26 Spring
Spring
HV532 19 96-79 Out of stock
Spring
£3.06 £2.55

  29 *Mud Tie And Wheel Front Passe
*Mud Tie And Wheel Front Passe
HV532 41 81-86 Out of stock
*Mud Tie And Wheel Front Passe
£24.73 £20.61

  33 E-Clip
E-Clip
HV812 00 00-53 Out of stock
E-Clip
£0.73 £0.61

  35 Rod
Rod
HV583 86 45-01 Out of stock
Rod
£16.62 £13.85

  43 Screw
Screw
HV874 18 04-12 Out of stock
Screw
£2.08 £1.73

  49 Bolt
Bolt
HV872 11 06-14 Out of stock
Bolt
£5.65 £4.71

  50 Pulley
Pulley
HV532 19 43-27 Out of stock
Pulley
£35.15 £29.29

  52 Pulley
Pulley
HV532 19 43-26 Out of stock
Pulley
£34.79 £28.99

  74 Screw
Screw
HV532 14 24-32 Out of stock
Screw
£1.84 £1.53

  80 Strap Torque
Strap Torque
HV532 41 81-84 Out of stock
Strap Torque
£45.40 £37.83

  99 *1 Front Mud Tire And Alloy W
*1 Front Mud Tire And Alloy W
HV532 41 81-88 Out of stock
*1 Front Mud Tire And Alloy W
£9.72 £8.10

  114 Lock Nut
Lock Nut
HV596 04 05-01 Out of stock
Lock Nut
£2.02 £1.68

  116 Nut
Nut
HV873 90 05-00 Out of stock
Nut
£2.20 £1.83

  160 Pin
Pin
HV532 16 94-84 Out of stock
Pin
£3.89 £3.24

  161 Spring
Spring
HV532 10 57-09 Out of stock
Spring
£15.65 £13.04

  163 *Mud Tire And Wheel Front 1
*Mud Tire And Wheel Front 1
HV532 41 81-85 Out of stock
*Mud Tire And Wheel Front 1
£25.69 £21.41

  166 Nut
Nut
HV532 42 91-64 Out of stock
Nut
£1.42 £1.18

  167 Latch
Latch
HV532 40 52-57 Out of stock
Latch
£4.74 £3.95

  186 Spacer
Spacer
HV532 19 43-21 Out of stock
Spacer
£11.27 £9.39

  188 Link
Link
HV532 19 43-23 Out of stock
Link
£7.91 £6.59

  189 Decal
Decal
HV532 40 75-04 Out of stock
Decal
£13.09 £10.91

  190 Spring
Spring
HV532 40 75-05 Out of stock
Spring
£5.65 £4.71

  196 Screw
Screw
HV817 00 06-16 Out of stock
Screw
£5.18 £4.32

  197 Bracket
Bracket
HV532 19 97-69 Out of stock
Bracket
£10.01 £8.34

  208 Support
Support
HV532 19 78-69 Out of stock
Support
£8.77 £7.31

  209 Rod
Rod
HV532 19 95-92 Out of stock
Rod
£13.19 £10.99

  211 Bearing
Bearing
HV532 12 01-83 Out of stock
Bearing
£5.96 £4.97

  213 Control
Control
HV532 40 31-19 Out of stock
Control
£13.16 £10.97

  214 Pedal.Forward.Husqvarna.Dealer
Pedal.Forward.Husqvarna.Dealer
HV532 41 68-63 Out of stock
Pedal.Forward.Husqvarna.Dealer
£29.69 £24.74

  215 Pedal
Pedal
HV532 40 17-23 Out of stock
Pedal
£29.69 £24.74

  221 Spring
Spring
HV532 40 31-87 Out of stock
Spring
£3.14 £2.62

  222 Washer
Washer
HV879 21 20-10 Out of stock
Washer
£4.66 £3.88

  284 Nut
Nut
HV532 41 76-93 Out of stock
Nut
£2.36 £1.97

  286 Bolt
Bolt
HV872 01 05-20 Out of stock
Bolt
£5.65 £4.71


Description

Husqvarna Gth3052Tf

Model Year -

Drive - Parts Diagram
