Husqvarna Gth26K54 T - Drive

Name: Husqvarna Gth26K54 T - Drive
SKU: gth26k54_t_2006_03_drive-group
Price: 0.50 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Husqvarna Gth26K54 T

Model Year - 2006-03

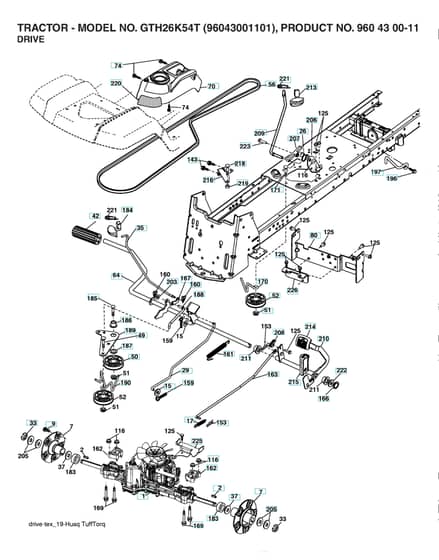

Drive - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
2	HV532 18 62-11 Out of stock	Key	£5.57 £4.64
7	HV532 19 98-44 Out of stock	Hub	£71.03 £59.19
9	HV532 14 00-80 Out of stock	Bolt	£5.65 £4.71
26	HV532 19 96-79 Out of stock	Spring	£3.06 £2.55
33	HV812 00 00-01 Out of stock	Retainer Ring	£0.60 £0.50
35	HV532 19 95-91 Out of stock	Rod	£9.76 £8.13
37	HV532 12 17-49 Out of stock	Washer	£2.78 £2.32
49	HV872 11 06-14 Out of stock	Bolt	£5.65 £4.71
50	HV532 19 43-27 Out of stock	Pulley	£35.15 £29.29
52	HV532 19 43-26 Out of stock	Pulley	£34.79 £28.99
56	HV532 13 09-69 Out of stock	Belt	£54.73 £45.61
74	HV532 14 24-32 Out of stock	Screw	£1.84 £1.53
116	HV873 90 05-00 Out of stock	Nut	£2.20 £1.83
143	HV817 49 05-08 Out of stock	Screw	£2.96 £2.47
160	HV532 16 94-84 Out of stock	Pin	£3.89 £3.24
162	HV532 19 57-85 Out of stock	Spacer	£9.89 £8.24
163	HV532 40 10-34 Out of stock	Rod	£66.19 £55.16
166	HV532 19 72-90 Out of stock	Nut	£1.42 £1.18
171	HV872 11 06-16 Out of stock	Bolt	£5.75 £4.79
183	HV532 40 04-24 Out of stock	Spacer	£6.29 £5.24
186	HV532 19 43-21 Out of stock	Spacer	£11.27 £9.39
188	HV532 19 43-23 Out of stock	Link	£7.91 £6.59
189	HV532 19 43-17 Out of stock	Plate	£12.12 £10.10
196	HV817 00 06-16 Out of stock	Screw	£5.18 £4.32
197	HV532 19 97-69 Out of stock	Bracket	£10.01 £8.34
205	HV532 12 17-48 Out of stock	Washer	£4.90 £4.08
208	HV532 19 78-69 Out of stock	Support	£8.77 £7.31
209	HV532 19 95-92 Out of stock	Rod	£13.19 £10.99
211	HV532 12 01-83 Out of stock	Bearing	£5.96 £4.97
213	HV532 40 31-19 Out of stock	Control	£13.16 £10.97
215	HV532 40 17-23 Out of stock	Pedal	£29.69 £24.74
221	HV532 40 31-87 Out of stock	Spring	£3.14 £2.62
225	HV532 40 33-19 Out of stock	Belt Guide	£12.53 £10.44
