Husqvarna Gth2548 - 48" 122cm Cutting Deck

Name: Husqvarna Gth2548 - 48" 122cm Cutting Deck
SKU: gth2548_2005_05_48_122cm_cutting_deck-group
Price: 1.37 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna Gth2548 - 48" 122cm Cutting Deck

Description

Husqvarna Gth2548

Model Year - 2005-05

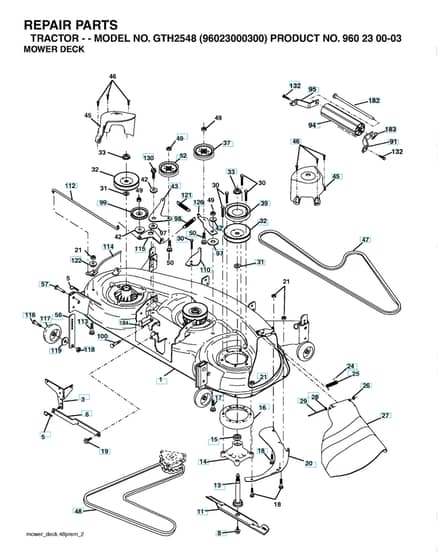

48" 122cm Cutting Deck - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
-1	HV532 18 00-54 Out of stock	Blade	£22.84 £19.03
0	HV532 17 43-56 Out of stock	Mandrel	£107.40 £89.50
6	HV532 17 80-24 Out of stock	Lever	£19.08 £15.90
11	HV532 17 39-21 Out of stock	Blade	£22.61 £18.84
13	HV532 17 43-60 Out of stock	Shaft	£47.41 £39.51
14	HV532 17 43-58 Out of stock	Mandrel	£57.76 £48.13
15	HV532 11 04-85 Out of stock	Bearing	£7.69 £6.41
16	HV531 16 77-01 In stock	Stripper. Mandrel.Black	£12.86 £10.72
18	HV596 13 64-01 Out of stock	Bolt	£3.16 £2.63
19	HV532 13 28-27 Out of stock	Spec. Bolt	£5.46 £4.55
20	HV532 17 43-78 Out of stock	Baffle	£32.57 £27.14
24	HV532 10 53-04 Out of stock	Hub Cap	£2.87 £2.39
26	HV532 11 04-52 Out of stock	Nut	£1.64 £1.37
29	HV532 13 14-91 In stock	Shaft	£13.98 £11.65
31	HV532 18 76-90 In stock	Washer	£2.96 £2.47
32	HV532 17 34-36 Out of stock	Pulley	£34.13 £28.44
37	HV532 17 79-68 Out of stock	Pulley	£49.49 £41.24
39	HV532 17 43-75 Out of stock	Pulley	£32.45 £27.04
45	HV532 18 08-06 Out of stock	Cover	£14.64 £12.20
46	HV532 13 77-29 Out of stock	Screw	£2.40 £2.00
47	HV532 18 08-08 Out of stock	V-Belt	£70.31 £58.59
48	HV532 17 43-68 Out of stock	V-Belt	£84.12 £70.10
94	HV532 17 60-66 Out of stock	Roller	£12.60 £10.50
95	HV532 18 05-34 Out of stock	Bracket	£10.97 £9.14
97	HV532 17 85-15 In stock	Washer	£7.02 £5.85
98	HV532 17 94-79 Out of stock	Spring	£14.32 £11.93
100	HV872 11 06-16 Out of stock	Bolt	£5.75 £4.79
113	HV872 11 05-06 Out of stock	Bolt	£3.20 £2.67
116	HV596 43 44-04 Out of stock	Bolt	£4.36 £3.63
117	HV532 17 48-73 In stock	Wheel	£16.66 £13.88
121	HV532 17 43-71 Out of stock	Spring	£16.64 £13.87
130	HV817 00 06-16 Out of stock	Screw	£5.18 £4.32
132	HV817 00 06-12 Out of stock	Screw	£4.74 £3.95
