Husqvarna Gth2250C - Mower Deck & Cutting Deck

Name: Husqvarna Gth2250C - Mower Deck & Cutting Deck
SKU: gth2250c_2001_05_mower_deck_cutting_deck-group
Price: 1.37 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna Gth2250C - Mower Deck & Cutting Deck

Description

Husqvarna Gth2250C

Model Year - 2001-05

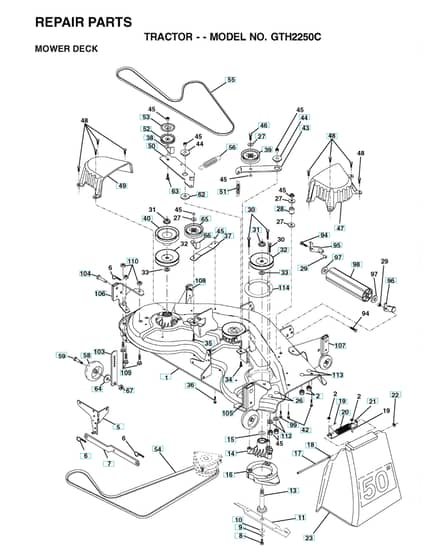

Mower Deck & Cutting Deck - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
-1	HV532 14 36-51 Out of stock	Mandrel	£105.89 £88.24
8	HV532 85 08-57 Out of stock	Bolt	£6.12 £5.10
10	HV532 14 02-96 Out of stock	Washer	£7.86 £6.55
11	HV532 13 73-80 Out of stock	Ride On Blade	£23.38 £19.48
13	HV532 13 75-53 Out of stock	Shaft	£40.18 £33.48
14	HV532 13 71-52 Out of stock	Bearing Housing	£62.00 £51.67
15	HV532 11 04-85 Out of stock	Bearing	£7.69 £6.41
16	HV531 16 77-01 Out of stock	Stripper. Mandrel.Black	£12.86 £10.72
19	HV532 10 53-04 Out of stock	Hub Cap	£2.87 £2.39
20	HV532 12 37-13 Out of stock	Spring	£9.56 £7.97
21	HV532 13 76-07 Out of stock	Bracket	£14.10 £11.75
22	HV532 11 04-52 Out of stock	Nut	£1.64 £1.37
29	HV596 04 05-01 Out of stock	Lock Nut	£2.02 £1.68
32	HV532 17 34-36 Out of stock	Pulley	£34.13 £28.44
35	HV872 11 06-16 Out of stock	Bolt	£5.75 £4.79
36	HV872 11 06-08 Out of stock	Bolt	£5.40 £4.50
39	HV597 02 50-01 Out of stock	Pulley	£47.03 £39.19
42	HV872 14 05-06 Out of stock	Bolt	£4.20 £3.50
45	HV596 32 26-01 Out of stock	Nut	£3.14 £2.62
48	HV532 13 77-29 Out of stock	Screw	£2.40 £2.00
51	HV532 13 72-73 Out of stock	Spring	£8.50 £7.08
52	HV532 13 92-45 Out of stock	Pulley	£35.83 £29.86
55	HV532 14 49-59 Out of stock	Belt	£58.52 £48.77
56	HV532 13 86-87 Out of stock	Spring	£12.30 £10.25
58	HV532 13 39-57 Out of stock	Wheel	£20.86 £17.38
94	HV874 78 05-16 Out of stock	Bolt	£3.43 £2.86
95	HV532 17 57-46 Out of stock	Bracket	£10.19 £8.49
96	HV532 17 57-47 Out of stock	Bracket	£10.40 £8.67
98	HV532 13 22-64 Out of stock	Roller	£14.69 £12.24
99	HV872 11 06-14 Out of stock	Bolt	£5.65 £4.71
