Husqvarna Gth200 - Chassis & Enclosures

Husqvarna Gth200 - Chassis & Enclosures

Description

Husqvarna Gth200

Model Year - 1999-05

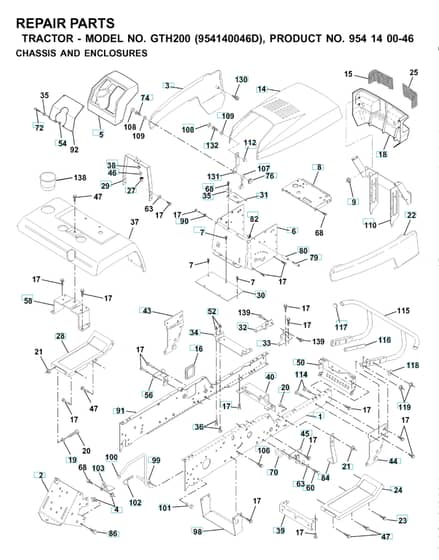

Chassis & Enclosures - Parts Diagram

Be the first to review this product

0 product questions

Ref.		Img.	Part No.	Details
	20		HV874 76 06-16 Out of stock	Bolt		£2.08 £1.73
	36		HV874 78 05-12 Out of stock	Screw		£2.96 £2.47
	38		HV596 02 98-01 Out of stock	Washer		£2.44 £2.03
	47		HV817 49 06-08 Out of stock	Screw		£4.30 £3.58
	52		HV596 04 05-01 Out of stock	Lock Nut		£2.02 £1.68
	68		HV817 49 05-08 Out of stock	Screw		£2.96 £2.47
	80		HV532 00 72-06 Out of stock	Spacer		£2.18 £1.82
	100		HV532 12 42-36 Out of stock	Plunger		£4.60 £3.83
	101		HV817 49 06-28 Out of stock	Screw		£5.99 £4.99
	107		HV532 10 98-08 Out of stock	Latch		£7.16 £5.97
	119		HV596 32 26-01 Out of stock	Nut		£3.14 £2.62

Description

Husqvarna Gth200

Model Year - 1999-05

Chassis & Enclosures - Parts Diagram
