Husqvarna Cth151 T

Model Year -

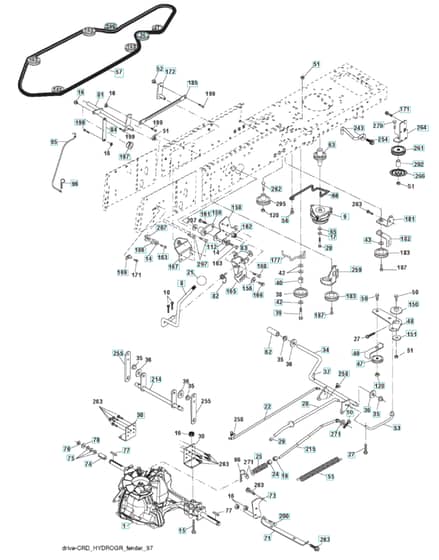

Drive - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
9	HV532 19 81-43	Clutch	Out of stock	£356.16 £296.80
10	HV876 02 04-16	Split Pin	Out of stock	£1.91 £1.59
14	HV596 02 98-01	Washer	Out of stock	£2.44 £2.03
15	HV874 49 05-44	Screw	Out of stock	£6.65 £5.54
16	HV596 04 05-01	Lock Nut	Out of stock	£2.06 £1.72
17	HV532 12 61-97	Washer	Out of stock	£14.29 £11.91
20	HV532 17 39-37	Bolt	Out of stock	£10.03 £8.36
21	HV532 12 12-74	Knob	Out of stock	£10.57 £8.81
28	HV532 17 57-65	Shaft	Out of stock	£12.58 £10.48
29	HV532 07 16-73	Cover	Out of stock	£3.54 £2.95
30	HV532 16 95-92	Bracket	Out of stock	£23.63 £19.69
34	HV532 17 55-78	Shaft	Out of stock	£49.03 £40.86
35	HV532 12 01-83	Bearing	Out of stock	£5.96 £4.97
36	HV819 21 16-16	Washer	Out of stock	£2.75 £2.29
38	HV532 16 59-36	Pulley	Out of stock	£40.80 £34.00
40	HV532 12 49-65	Spacer	Out of stock	£5.34 £4.45
48	HV532 15 44-07	Guide	Out of stock	£8.20 £6.83
49	HV532 12 32-05	Belt Guide	Out of stock	£6.85 £5.71
51	HV596 32 26-01	Nut	Out of stock	£3.24 £2.70
55	HV532 10 57-09	Spring	Out of stock	£15.65 £13.04
56	HV817 06 06-20	Screw	Out of stock	£6.85 £5.71
57	HV583 03 67-01	Belt	Out of stock	£60.48 £50.40
65	HV810 04 07-00	Washer	Out of stock	£3.28 £2.73
66	HV531 15 10-01	Tensioner	Out of stock	£12.23 £10.19
71	HV532 16 91-83	Rod	Out of stock	£23.81 £19.84
74	HV532 13 70-57	Spacer	Out of stock	£9.34 £7.78
75	HV532 12 17-49	Washer	Out of stock	£3.34 £2.78
76	HV812 00 00-01	Retainer Ring	Out of stock	£0.74 £0.62
77	HV532 12 35-83	Key	Out of stock	£6.48 £5.40
78	HV532 12 17-48	Washer	Out of stock	£5.74 £4.78
82	HV532 16 57-11	Spring	Out of stock	£4.60 £3.83
84	HV532 17 00-07	Link	Out of stock	£9.46 £7.88
150	HV532 16 58-50	Bushing	Out of stock	£38.10 £31.75
156	HV532 16 60-02	Washer	Out of stock	£4.72 £3.93
158	HV532 43 74-58	Bracket	Out of stock	£8.81 £7.34
159	HV532 44 43-04	Lever	Out of stock	£8.71 £7.26
162	HV873 68 04-00	Nut	Out of stock	£2.26 £1.88
163	HV874 78 04-16	Bolt	Out of stock	£3.41 £2.84
165	HV532 43 82-50	Bracket	Out of stock	£11.32 £9.43
166	HV817 49 05-10	Screw	Out of stock	£3.85 £3.21
167	HV532 16 55-88	Bracket	Out of stock	£26.11 £21.76
168	HV532 16 54-92	Bolt	Out of stock	£4.86 £4.05
171	HV817 49 06-08	Screw	Out of stock	£5.09 £4.24
177	HV532 16 59-32	Holder	Out of stock	£10.69 £8.91
183	HV532 19 95-34	Pulley	In stock	£21.43 £17.86
186	HV532 16 56-14	Hub	Out of stock	£6.94 £5.78
187	HV817 58 05-20	Bolt	Out of stock	£5.09 £4.24
199	HV532 16 96-12	Screw	Out of stock	£5.83 £4.86
200	HV872 14 05-08	Bolt	Out of stock	£4.37 £3.64
214	HV532 17 56-09	Lever	Out of stock	£44.75 £37.29
243	HV532 19 07-36	Bracket	Out of stock	£9.95 £8.29
254	HV817 00 06-16	Screw	Out of stock	£6.11 £5.09
262	HV872 11 06-22	Bolt	Out of stock	£8.09 £6.74
263	HV817 00 06-12	Screw	Out of stock	£5.60 £4.67
279	HV872 11 06-16	Bolt	Out of stock	£6.85 £5.71
295	HV532 17 91-14	Pulley	Out of stock	£42.89 £35.74
