Husqvarna Cth130 - Mower Deck & Cutting Deck

Name: Husqvarna Cth130 - Mower Deck & Cutting Deck
SKU: cth130_2001_02_mower_deck_cutting_deck-group
Price: 1.56 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna Cth130 - Mower Deck & Cutting Deck

Description

Husqvarna Cth130

Model Year - 2001-02

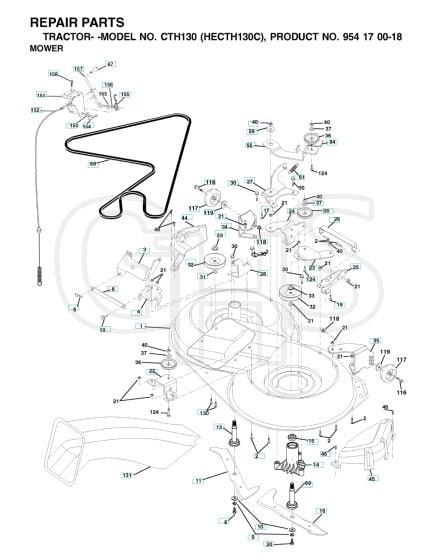

Mower Deck & Cutting Deck - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
-1	HV532 13 07-94 Out of stock	Mandrel	£135.53 £112.94
0	HV532 16 55-79 Out of stock	Spindle	£125.34 £104.45
2	HV872 14 05-06 Out of stock	Bolt	£4.20 £3.50
6	HV532 16 55-57 Out of stock	Rod	£18.64 £15.53
8	HV532 85 08-57 Out of stock	Bolt	£6.12 £5.10
10	HV532 14 02-96 Out of stock	Washer	£7.86 £6.55
11	HV532 42 63-23 Out of stock	Blade	£58.33 £48.61
14	HV532 12 87-74 Out of stock	Bearing Housing	£62.72 £52.27
15	HV532 11 04-85 Out of stock	Bearing	£7.69 £6.41
18	HV872 11 06-08 Out of stock	Bolt	£5.40 £4.50
19	HV532 13 28-27 Out of stock	Spec. Bolt	£5.46 £4.55
20	HV532 16 54-84 Out of stock	Bolt	£6.07 £5.06
23	HV532 16 54-46 Out of stock	Plate	£23.88 £19.90
25	HV532 16 52-44 Out of stock	Bracket	£55.64 £46.37
26	HV532 16 52-37 Out of stock	Rod	£28.03 £23.36
27	HV532 16 55-68 In stock	Bracket	Was £35.28 £29.40 Special Price £24.13 £20.11
28	HV532 16 55-67 Out of stock	Bracket	£31.80 £26.50
40	HV596 32 26-01 Out of stock	Nut	£3.14 £2.62
46	HV532 13 77-29 Out of stock	Screw	£2.40 £2.00
56	HV532 16 57-23 Out of stock	Spacer	£9.58 £7.98
61	HV532 16 59-45 Out of stock	Spring	£14.32 £11.93
67	HV532 10 69-32 Out of stock	Knob	£8.47 £7.06
69	HV532 16 54-82 Out of stock	Shaft	£54.40 £45.33
117	HV532 13 39-57 Out of stock	Wheel	£20.86 £17.38
130	HV872 11 05-06 Out of stock	Bolt	£3.20 £2.67
131	HV532 16 56-61 Out of stock	Pipe	£94.96 £79.13
151	HV532 16 96-70 Out of stock	Bracket	£15.38 £12.82
154	HV532 16 96-75 Out of stock	Pin	£4.15 £3.46
155	HV532 16 96-71 Out of stock	Spring	£3.70 £3.08
156	HV532 16 96-72 Out of stock	Spacer	£1.87 £1.56
