Description

Husqvarna Cth130

Model Year - 2001-02

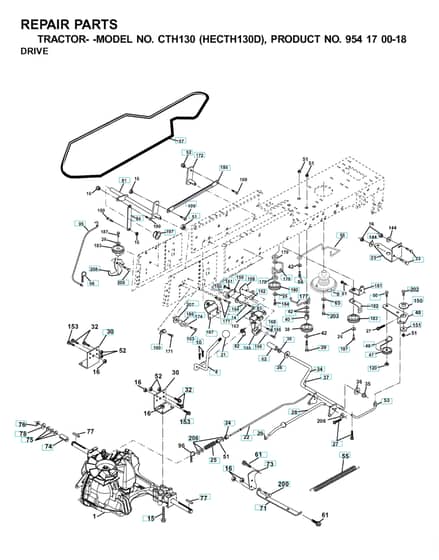

Drive - Parts Diagram

Ref. Img. Part No. Details
  -1 Pulley
Pulley
HV532 16 59-36 Out of stock
Pulley
£34.57 £28.81

  9 Clutch
Clutch
HV532 17 01-63 Out of stock
Clutch
£422.87 £352.39

  10 Split Pin
Split Pin
HV876 02 04-16 Out of stock
Split Pin
£1.86 £1.55

  14 Washer
Washer
HV596 02 98-01 Out of stock
Washer
£2.44 £2.03

  15 Screw
Screw
HV874 49 05-44 Out of stock
Screw
£6.47 £5.39

  16 Lock Nut
Lock Nut
HV596 04 05-01 Out of stock
Lock Nut
£2.02 £1.68

  21 Knob
Knob
HV532 12 12-74 Out of stock
Knob
£8.95 £7.46

  29 Cover
Cover
HV532 07 16-73 Out of stock
Cover
£2.94 £2.45

  30 Bracket
Bracket
HV532 16 95-92 Out of stock
Bracket
£19.62 £16.35

  33 Bolt
Bolt
HV872 14 05-06 Out of stock
Bolt
£4.20 £3.50

  34 Shaft
Shaft
HV532 16 54-96 Out of stock
Shaft
£85.37 £71.14

  35 Bearing
Bearing
HV532 12 01-83 Out of stock
Bearing
£5.96 £4.97

  36 Washer
Washer
HV819 21 16-16 Out of stock
Washer
£2.36 £1.97

  40 Spacer
Spacer
HV532 12 49-65 Out of stock
Spacer
£4.56 £3.80

  48 Guide
Guide
HV532 15 44-07 Out of stock
Guide
£6.78 £5.65

  49 Belt Guide
Belt Guide
HV532 12 32-05 Out of stock
Belt Guide
£5.66 £4.72

  51 Nut
Nut
HV596 32 26-01 Out of stock
Nut
£3.14 £2.62

  55 Spring
Spring
HV532 10 57-09 Out of stock
Spring
£15.65 £13.04

  57 Belt
Belt
HV583 03 67-01 In stock
Belt
£63.64 £53.03

  65 Washer
Washer
HV810 04 07-00 Out of stock
Washer
£3.20 £2.67

  66 Tensioner
Tensioner
HV531 15 10-01 Out of stock
Tensioner
£11.92 £9.93

  71 Rod
Rod
HV532 16 91-83 Out of stock
Rod
£23.21 £19.34

  74 Spacer
Spacer
HV532 13 70-57 Out of stock
Spacer
£7.73 £6.44

  75 Washer
Washer
HV532 12 17-49 Out of stock
Washer
£2.78 £2.32

  76 Retainer Ring
Retainer Ring
HV812 00 00-01 Out of stock
Retainer Ring
£0.60 £0.50

  77 Key
Key
HV532 12 35-83 Out of stock
Key
£6.16 £5.13

  78 Washer
Washer
HV532 12 17-48 Out of stock
Washer
£4.90 £4.08

  82 Torsion Spring
Torsion Spring
HV532 12 37-82 Out of stock
Torsion Spring
£3.91 £3.26

  84 Link
Link
HV532 17 00-07 Out of stock
Link
£9.22 £7.68

  150 Bushing
Bushing
HV532 16 58-50 Out of stock
Bushing
£37.15 £30.96

  156 Washer
Washer
HV532 16 60-02 Out of stock
Washer
£4.06 £3.38

  158 Bracket
Bracket
HV532 16 55-89 Out of stock
Bracket
£8.59 £7.16

  162 Nut
Nut
HV873 68 04-00 Out of stock
Nut
£1.63 £1.36

  163 Bolt
Bolt
HV874 78 04-16 Out of stock
Bolt
£3.41 £2.84

  167 Bracket
Bracket
HV532 16 55-88 Out of stock
Bracket
£22.13 £18.44

  168 Bolt
Bolt
HV532 16 54-92 Out of stock
Bolt
£4.09 £3.41

  171 Screw
Screw
HV817 49 06-08 Out of stock
Screw
£4.30 £3.58

  177 Holder
Holder
HV532 16 59-32 Out of stock
Holder
£9.01 £7.51

  178 Holder
Holder
HV532 16 59-33 Out of stock
Holder
£7.44 £6.20

  179 Washer
Washer
HV532 12 09-58 Out of stock
Washer
£13.60 £11.33

  180 Pulley
Pulley
HV532 16 56-30 Out of stock
Pulley
£36.92 £30.77

  183 Pulley
Pulley
HV532 16 56-26 Out of stock
Pulley
£30.19 £25.16

  184 Screw
Screw
HV596 56 40-05 Out of stock
Screw
£6.28 £5.23

  186 Hub
Hub
HV532 16 56-14 Out of stock
Hub
£5.66 £4.72

  187 Screw
Screw
HV817 06 06-20 Out of stock
Screw
£5.36 £4.47

  197 Sleeve
Sleeve
HV532 16 96-13 Out of stock
Sleeve
£4.60 £3.83

  199 Screw
Screw
HV532 16 96-12 Out of stock
Screw
£4.98 £4.15

  200 Bolt
Bolt
HV872 14 05-08 Out of stock
Bolt
£3.65 £3.04


Description

Husqvarna Cth130

Model Year - 2001-02

Drive - Parts Diagram
