Husqvarna Cth130 - Chassis & Enclosures

Husqvarna Cth130 - Chassis & Enclosures

Description

Husqvarna Cth130

Model Year - 2001-02

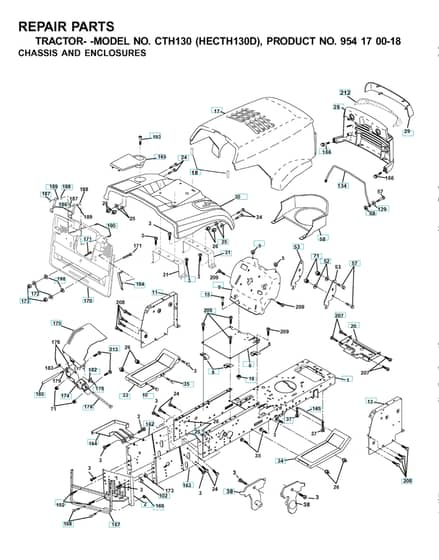

Chassis & Enclosures - Parts Diagram

Be the first to review this product

0 product questions

Ref.		Img.	Part No.	Details
	-1		HV532 13 27-96 Out of stock	Spring		£10.40 £8.67
	8		HV532 12 64-71 Out of stock	Clip		£0.74 £0.62
	24		HV874 78 06-16 Out of stock	Bolt		£5.18 £4.32
	31		HV532 16 51-56 Out of stock	Bracket		£30.16 £25.13
	37		HV817 49 05-08 Out of stock	Screw		£2.96 £2.47
	52		HV819 09 14-16 Out of stock	Washer		£2.54 £2.12
	71		HV873 68 04-00 Out of stock	Nut		£1.63 £1.36
	164		HV532 16 56-05 Out of stock	Support		£91.00 £75.83
	168		HV872 05 04-12 Out of stock	Bolt		£2.96 £2.47
	170		HV532 17 52-64 Out of stock	Cover		£120.32 £100.27
	171		HV872 14 06-20 Out of stock	Bolt		£6.31 £5.26
	173		HV873 51 06-00 Out of stock	Nut		£2.58 £2.15
	184		HV532 17 46-62 Out of stock	Bracket		£6.54 £5.45
	185		HV532 16 59-40 Out of stock	Pipe		£5.34 £4.45
	186		HV597 00 06-01 Out of stock	Latch		£8.92 £7.43
	188		HV819 06 12-16 Out of stock	Washer		£2.36 £1.97
	189		HV810 07 10-00 Out of stock	Washer		£2.11 £1.76
	190		HV596 03 90-01 Out of stock	Screw		£1.19 £0.99
	193		HV817 07 04-12 Out of stock	Screw		£1.81 £1.51
	208		HV817 67 06-08 Out of stock	Screw		£4.30 £3.58
	209		HV817 00 06-12 Out of stock	Screw		£4.74 £3.95
	213		HV872 11 04-06 Out of stock	Bolt		£1.57 £1.31

Description

Husqvarna Cth130

Model Year - 2001-02

Chassis & Enclosures - Parts Diagram
