Husqvarna Automower 430Xh - Chassis Upper

Name: Husqvarna Automower 430Xh - Chassis Upper
SKU: automower_430xh_chassis_upper-group
Price: 0.55 GBP
Availability: InStock

Description

Husqvarna Automower 430Xh

Model Year -

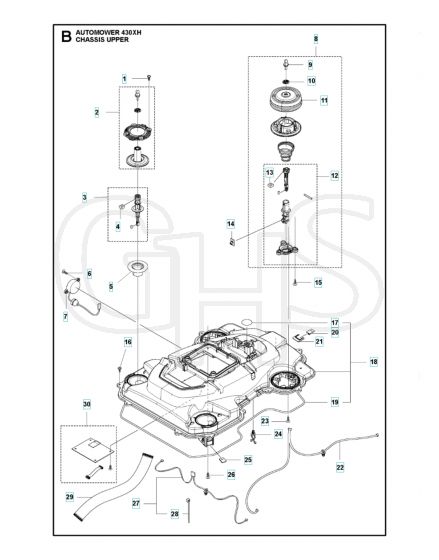

Chassis Upper - Parts Diagram

	Part No.	Details
2	HV501 06 13-01 Out of stock	Joystick Kitrear	£14.69 £12.24
3	HV501 12 26-02 Out of stock	Joystick Kitcolumn Kit	£14.69 £12.24
5	HV535 14 32-01 Out of stock	Deflection Limiter	£7.46 £6.22
7	HV579 70 63-02 Out of stock	Buzzer	£27.59 £22.99
8	HV581 62 09-03 Out of stock	Joystick Kitfront	£66.16 £55.13
9	HV580 52 67-01 Out of stock	Stud	£1.39 £1.16
10	HV579 52 57-01 Out of stock	Washer	£2.20 £1.83
11	HV579 47 46-01 Out of stock	Bellows	£11.80 £9.83
12	HV587 44 88-02 Out of stock	Joystick Kit	£19.79 £16.49
13	HV503 22 66-01 Out of stock	Square Nut	£2.36 £1.97
14	HV592 85 23-01 Out of stock	Printed Circuit Assypcba Lift Sensor	£20.92 £17.43
16	HV574 45 01-01 Out of stock	Screw Itxpant	£1.63 £1.36
17	HV577 75 37-01 Out of stock	Filterair Filter 10 Pcs	£60.68 £50.57
18	HV581 62 08-02 Out of stock	Chassis Kit	£58.08 £48.40
19	HV574 87 47-05 Out of stock	Sealing Strip1 Pcs. Diam 5 mm	£5.33 £4.44
21	HV587 83 49-01 Out of stock	Clip	£1.10 £0.92
22	HV581 66 09-01 Out of stock	Wiring Assywiring	£18.04 £15.03
24	HV580 68 29-01 Out of stock	Holderholder Twist Lock	£0.95 £0.79
25	HV592 85 24-01 Out of stock	Printed Circuit Assypcba Collision Sensor	£18.04 £15.03
26	HV575 54 33-14 In stock	Screw	£1.37 £1.14
27	HV581 62 11-01 Out of stock	Loom Kitwiring	£18.04 £15.03
28	HV900 23 87-08 Out of stock	Tie Wrap	£0.66 £0.55
29	HV579 70 62-01 Out of stock	Cable Assyloom	£46.67 £38.89
