Husqvarna 7021RH - Drive

Name: Husqvarna 7021RH - Drive
SKU: 7021rh_drive-group
Price: 0.49 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Husqvarna 7021RH

Model Year - -

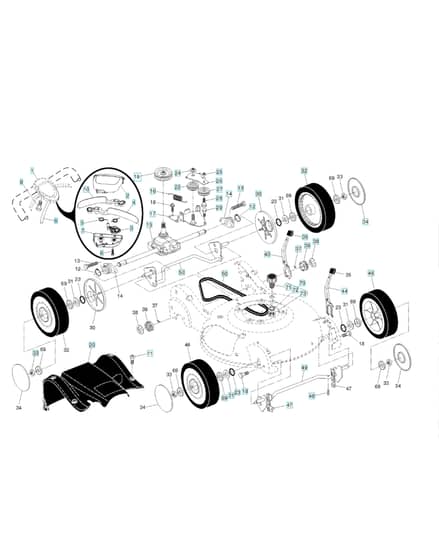

Drive - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
6	HV532 18 16-98 Out of stock	Screw	£1.39 £1.16
8	HV532 17 88-48 Out of stock	Screwrh	£1.20 £1.00
10	HV532 43 29-77 Out of stock	Lever	£15.64 £13.03
11	HV532 19 41-88 Out of stock	Screw	£1.84 £1.53
12	HV812 00 00-12 Out of stock	Retainer Ring	£0.85 £0.71
14	HV532 40 80-27 Out of stock	Bearing	£9.34 £7.78
16	HV532 40 65-58 Out of stock	Spring	£2.96 £2.47
17	HV532 40 80-05 Out of stock	Belt	£19.14 £15.95
18	HV532 16 34-09 Out of stock	Screw	£1.10 £0.92
20	HV532 43 26-77 Out of stock	Guardincludes Screw & Palnut	£51.20 £42.67
22	HV532 19 37-91 Out of stock	Pulley	£8.83 £7.36
23	HV532 19 74-80 Out of stock	O-Ring	£3.06 £2.55
24	HV532 40 91-49 Out of stock	Nut	£4.51 £3.76
25	HV873 93 05-00 Out of stock	Nut	£1.81 £1.51
27	HV532 16 60-43 Out of stock	Pulley	£10.69 £8.91
28	HV532 16 08-29 Out of stock	Bolt	£5.65 £4.71
29	HV817 06 04-10 Out of stock	Screw	£1.84 £1.53
30	HV532 18 34-57 Out of stock	Shield	£5.04 £4.20
31	HV532 08 83-48 Out of stock	Washer	£1.93 £1.61
32	HV532 19 26-22 Out of stock	Wheel	£22.58 £18.82
33	HV532 40 91-48 Out of stock	Nut	£2.81 £2.34
34	HV532 18 34-42 Out of stock	Radkappe	£8.03 £6.69
35	HV532 42 52-42 Out of stock	Knob	£8.12 £6.77
37	HV532 40 48-45 Out of stock	Pawl. Drive	£5.21 £4.34
38	HV812 00 00-58 Out of stock	E-Clip	£0.59 £0.49
39	HV532 40 38-49 Out of stock	Pinion	£8.06 £6.72
46	HV532 19 22-32 Out of stock	Wheel	£22.58 £18.82
47	HV532 18 34-38 Out of stock	Bushing	£9.66 £8.05
48	HV532 16 96-75 Out of stock	Pin	£4.15 £3.46
50	HV532 40 80-31 Out of stock	Belt	£20.71 £17.26
53	HV532 41 67-40 Out of stock	Rear Axlerear	£45.34 £37.78
69	HV532 75 10-68 Out of stock	Bearing	£5.59 £4.66
70	HV532 42 11-14 Out of stock	Water Connector	£19.91 £16.59
