Husqvarna 7021 - Frame & Engine

Name: Husqvarna 7021 - Frame & Engine
SKU: 7021_2010_02_frame_engine-group
Price: 0.50 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Husqvarna 7021

Model Year - 2010-02 - 376823

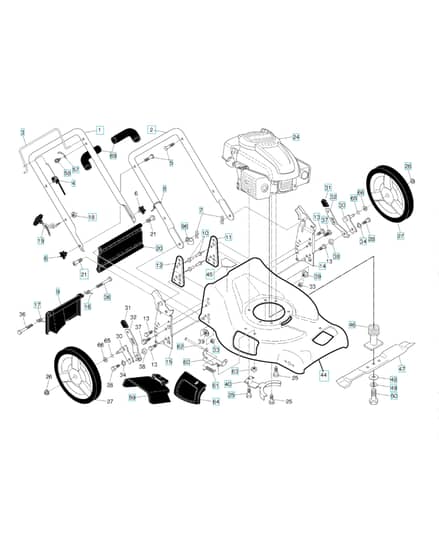

Frame & Engine - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HV532 42 76-58 Out of stock	Handle Assyincludes Foam Grip	£40.36 £33.63
5	HV532 19 15-74 Out of stock	Screw	£4.74 £3.95
6	HV532 18 23-98 Out of stock	Knob	£6.91 £5.76
7	HV532 05 17-93 Out of stock	Pin	£3.88 £3.23
10	HV532 12 84-15 Out of stock	Rivet	£2.60 £2.17
13	HV817 06 04-10 Out of stock	Screw	£1.84 £1.53
14	HV532 43 45-50 Out of stock	Bracket	£45.60 £38.00
16	HV532 40 54-17 Out of stock	Spring	£5.87 £4.89
17	HV532 40 54-18 Out of stock	Spring	£5.87 £4.89
19	HV532 19 47-88 Out of stock	Guide	£3.43 £2.86
26	HV532 40 91-49 Out of stock	Nut	£4.51 £3.76
28	HV532 40 16-38 Out of stock	Bolt	£6.79 £5.66
30	HV532 41 31-41 Out of stock	Arm	£13.96 £11.63
31	HV532 70 10-37 Out of stock	Knob	£4.72 £3.93
33	HV532 15 53-77 Out of stock	Nut	£2.02 £1.68
34	HV532 40 16-30 Out of stock	Washer	£2.69 £2.24
36	HV532 18 41-93 Out of stock	Bolt	£6.04 £5.03
37	HV874 78 05-12 Out of stock	Screw	£2.96 £2.47
38	HV532 40 16-29 Out of stock	Spacer	£2.18 £1.82
39	HV596 04 05-01 Out of stock	Lock Nut	£2.02 £1.68
40	HV532 42 57-11 Out of stock	Belt Guard	£6.84 £5.70
47	HV532 40 67-12 Out of stock	Mower Blade	£32.90 £27.42
50	HV532 85 10-74 Out of stock	Washer	£4.06 £3.38
58	HV532 75 06-34 Out of stock	Screw	£1.19 £0.99
59	HV532 18 55-82 Out of stock	Deflector	£36.48 £30.40
60	HV532 17 57-35 Out of stock	Hinge	£6.82 £5.68
61	HV532 19 30-00 Out of stock	Hinge	£5.84 £4.87
62	HV532 17 56-50 Out of stock	Rod	£4.51 £3.76
64	HV532 18 55-76 Out of stock	Door	£14.02 £11.68
65	HV532 19 74-80 Out of stock	O-Ring	£3.06 £2.55
66	HV532 08 83-48 Out of stock	Washer	£1.93 £1.61
96	HV532 19 79-91 Out of stock	Clip	£0.60 £0.50
