Husqvarna 565 - Fuel Tank

Husqvarna 565 - Fuel Tank

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna 565 - Fuel Tank

Husqvarna 565 - Fuel Tank

Description

Husqvarna 565

Model Year -

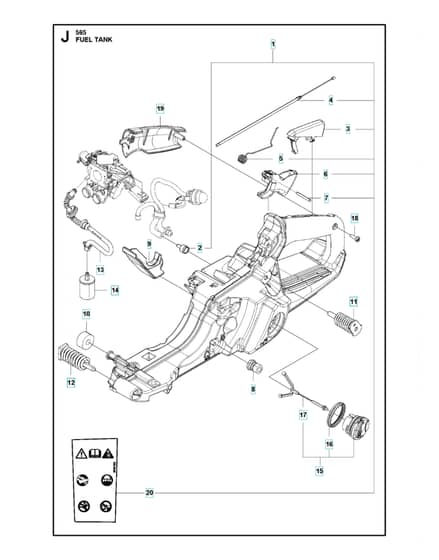

Fuel Tank - Parts Diagram

Be the first to review this product

0 product questions

Ref.		Img.	Part No.	Details

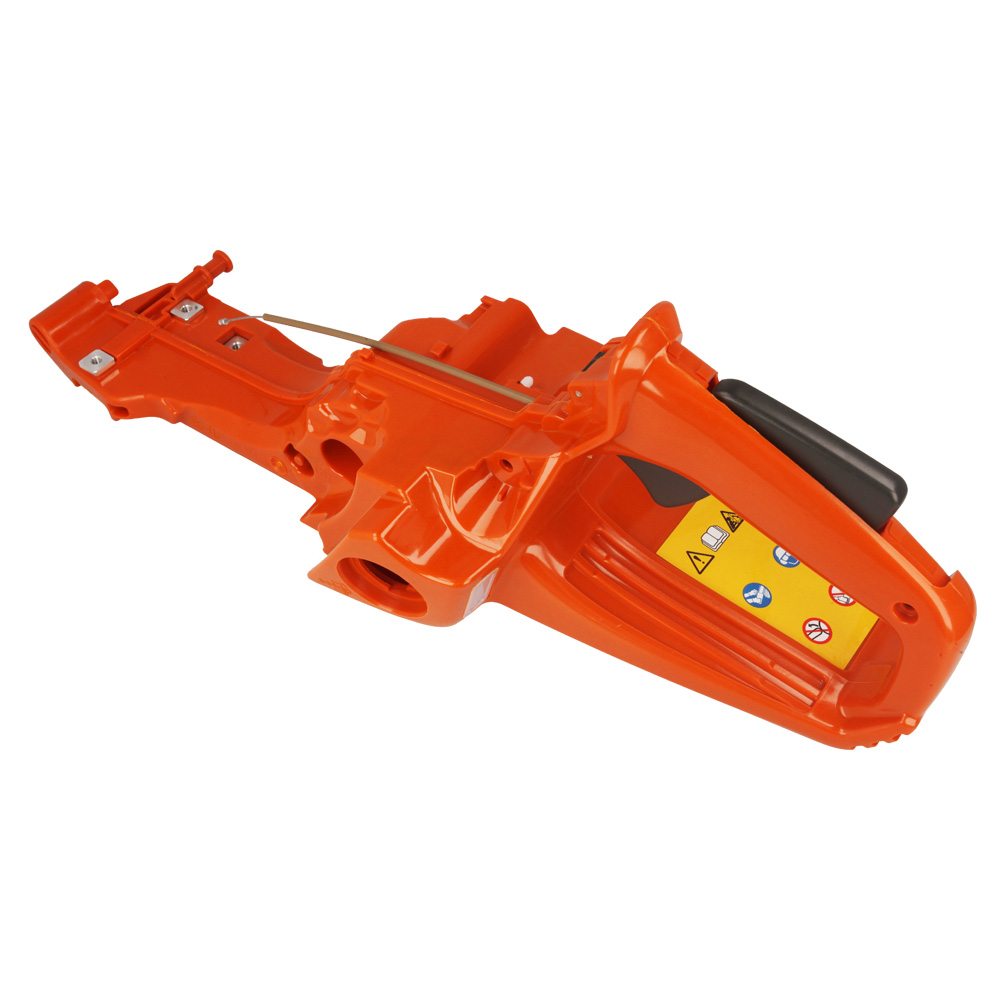

	1		HV578 20 07-01 Out of stock	Fuel Tank Assy		£170.52 £142.10
	2		HV501 15 29-01 Out of stock	Tank Vent Assy		£17.00 £14.17
	3		HV537 20 84-01 Out of stock	Throttle Lockout		£6.41 £5.34
	4		HV576 16 28-02 Out of stock	Throttle Cable Assy		£22.19 £18.49
	5		HV544 09 99-01 Out of stock	Spring		£3.31 £2.76
	6		HV576 95 67-01 Out of stock	Throttle		£6.72 £5.60
	7		HV720 18 25-20 Out of stock	Parallel Pin		£1.37 £1.14
	8		HV501 00 76-01 Out of stock	Support		£1.81 £1.51
	9		HV575 01 02-01 Out of stock	Wear Protection		£6.84 £5.70
	10		HV523 08 55-01 Out of stock	Deflection Limiter		£5.87 £4.89

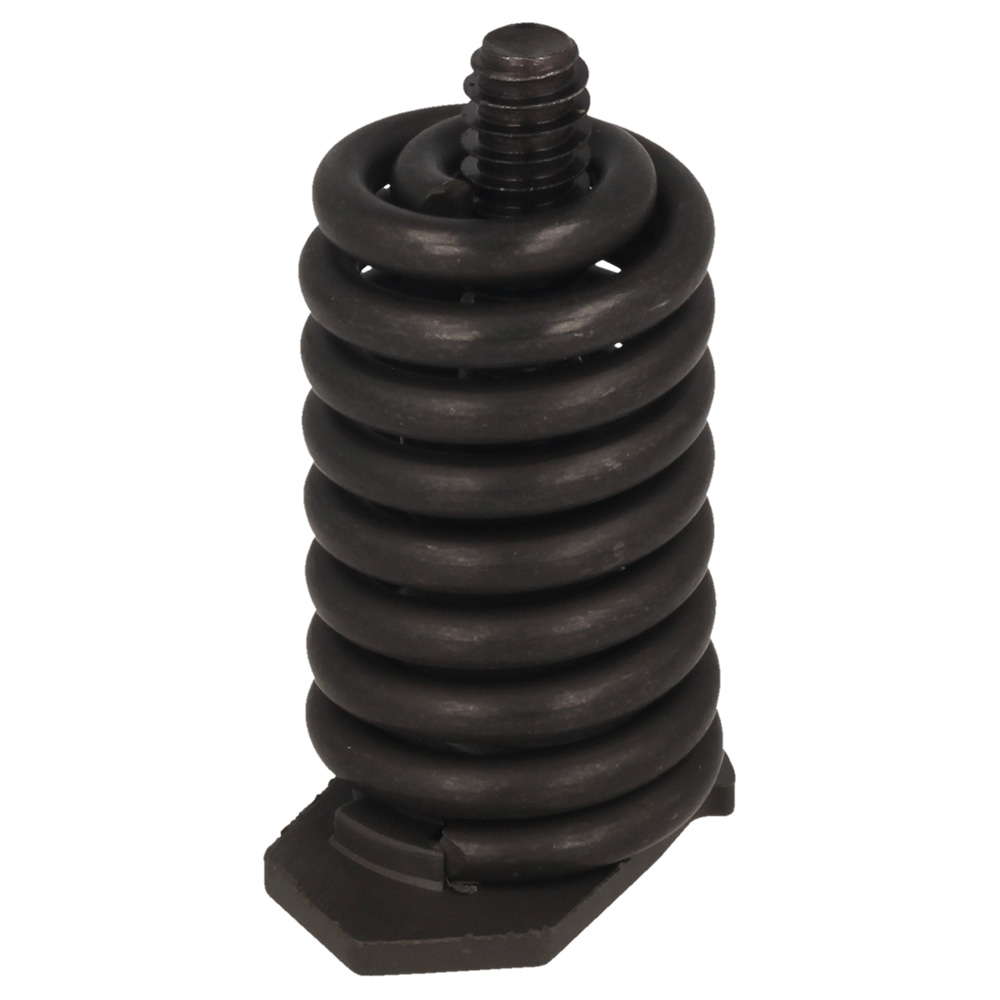

	11		HV577 06 27-01 Out of stock	Antivibration Elementhard		£18.23 £15.19
	11		HV577 06 27-02 Out of stock	Antivibration Element		£18.23 £15.19
	12		HV503 85 41-03 Out of stock	Antivibration Elementhard		£24.12 £20.10
	12		HV503 85 41-04 Out of stock	Antivibration Element		£18.73 £15.61
	13		HV577 50 41-01 Out of stock	Fuel Hose		£10.55 £8.79
	15		HV522 62 00-03 Out of stock	Tank Cap Assy		£8.81 £7.34
	16		HV589 24 11-01 Out of stock	Gasket		£5.06 £4.22
	17		HV503 57 89-01 Out of stock	Holder		£5.35 £4.46
	18		HV525 88 74-02 Out of stock	Screw Citxpant		£1.13 £0.94
	20		HV590 56 70-01 Out of stock	Decal		£6.46 £5.38

Description

Husqvarna 565

Model Year -

Fuel Tank - Parts Diagram
