Husqvarna 562XP - Clutch & Oil Pump

Husqvarna 562XP - Clutch & Oil Pump

Description

Husqvarna 562XP

Model Year -

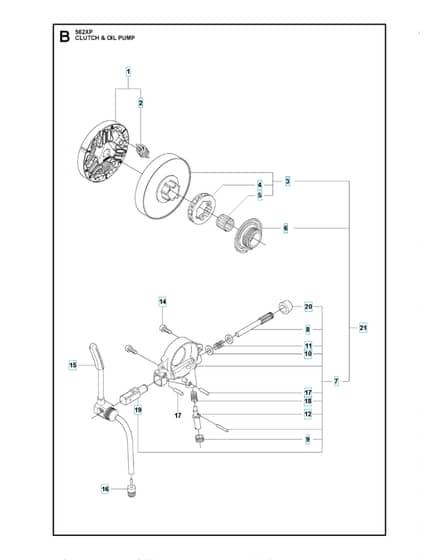

Clutch & Oil Pump - Parts Diagram

Be the first to review this product

0 product questions

Ref.		Img.	Part No.	Details
	2		HV580 65 35-02 Out of stock	Clutch Springs/N From 20133400001 - Up To S/N 20164100192		£5.59 £4.66
	2		HV502 16 47-01 Out of stock	Clutch Springs/N From 20164100193 -		£5.59 £4.66
	3		HV575 26 10-05 Out of stock	Clutch Drum Assy- Up To S/N 20202200048 ".325" X7"		£43.56 £36.30
	3		HV575 26 10-06 Out of stock	Clutch Drum- Up To S/N 20202200048 "3/8" X7"		£46.84 £39.03
	4		HV501 59 80-02 Out of stock	Rim"3/8""X7"		£13.60 £11.33
	5		HV503 25 34-01 Out of stock	Needle Bearing		£10.64 £8.87

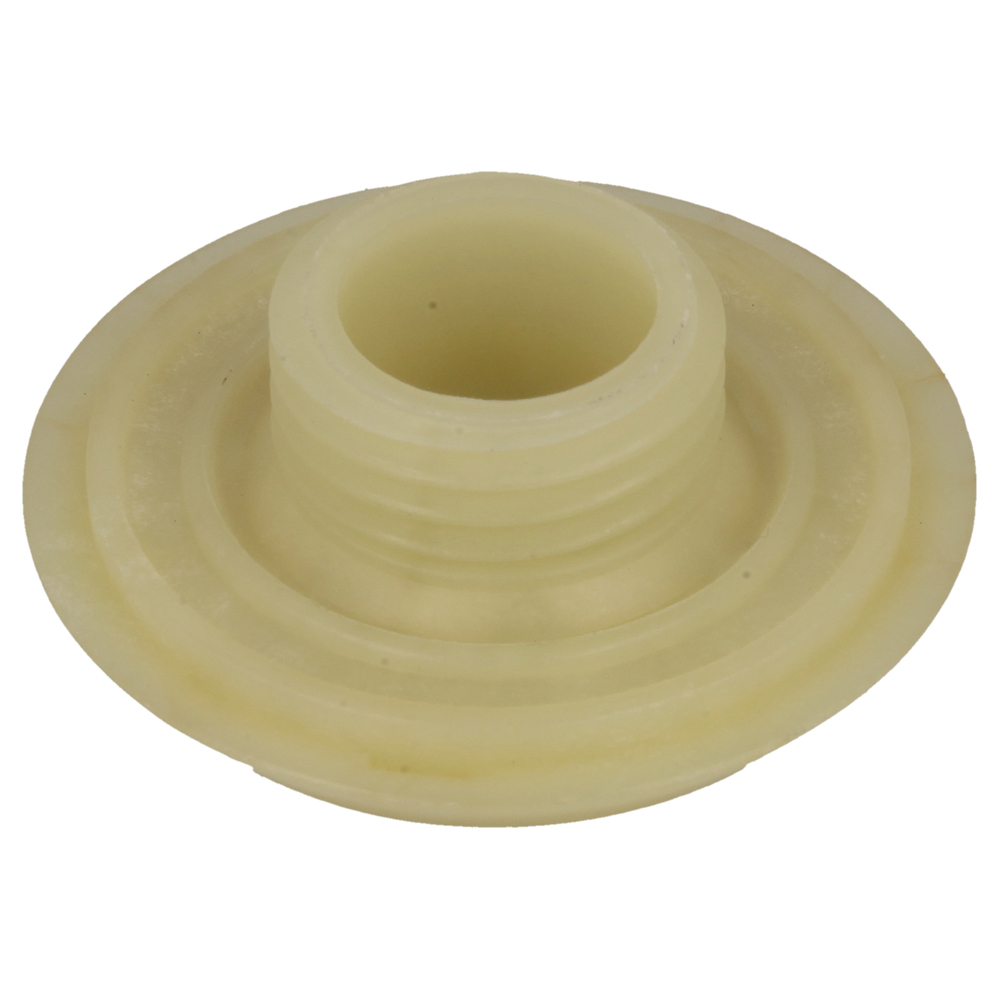

	6		HV577 60 11-01 Out of stock	Worm Wheel- Up To S/N 20202200048		£11.78 £9.82
	8		HV505 20 02-03 Out of stock	Pump Piston		£16.54 £13.78
	9		HV505 20 03-01 Out of stock	Casing		£5.53 £4.61
	10		HV503 23 00-60 Out of stock	Washer		£2.05 £1.71
	11		HV503 89 16-01 Out of stock	Spring		£3.20 £2.67
	12		HV505 15 70-01 Out of stock	Adjustment Screw		£6.05 £5.04
	14		HV526 81 81-02 Out of stock	Screw Itxscm		£0.74 £0.62

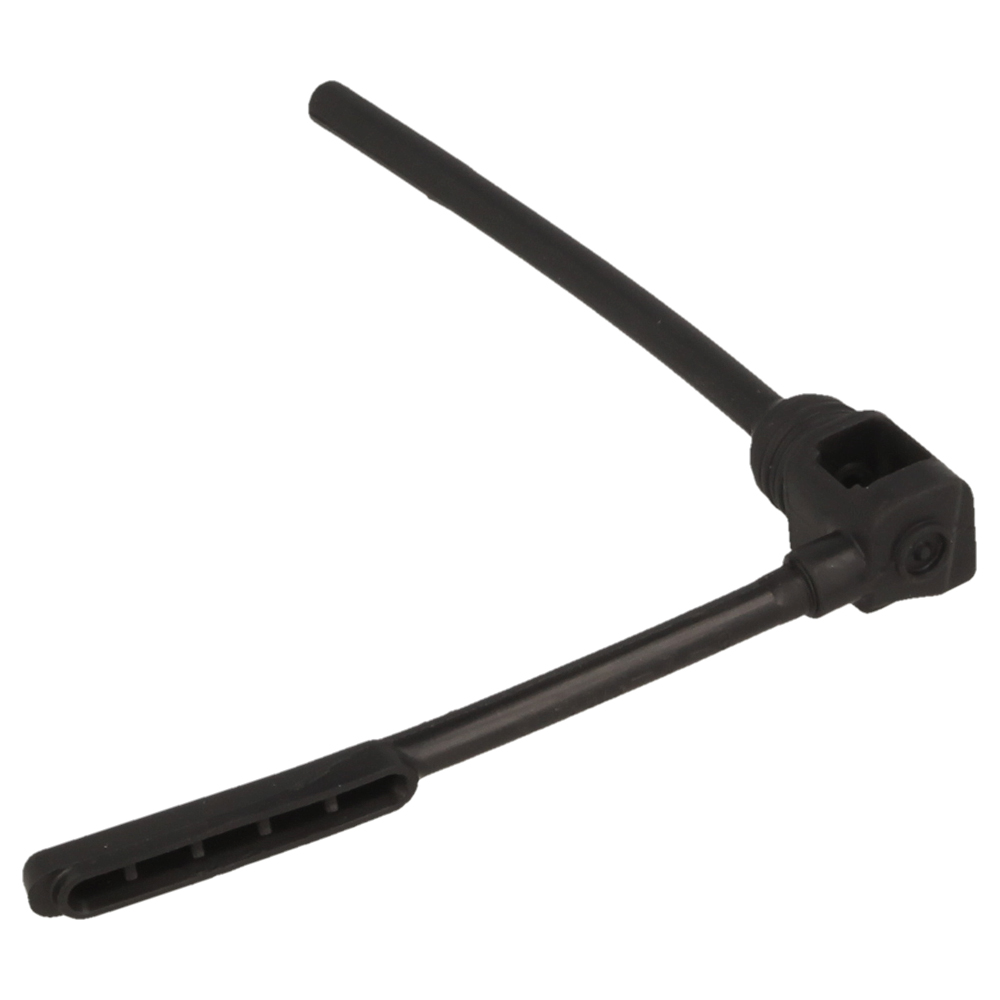

	15		HV575 84 78-01 Out of stock	Oil Hose		£13.74 £11.45
	16		HV504 71 00-03 Out of stock	Oil Plummet		£10.69 £8.91
	17		HV720 12 33-00 Out of stock	Parallel Pin		£1.21 £1.01
	18		HV503 89 15-01 Out of stock	Spring		£2.78 £2.32
	19		HV505 20 01-01 Out of stock	Pump Cylinder		£6.96 £5.80
	20		HV503 62 49-03 Out of stock	Sealing Plug		£3.31 £2.76

Description

Husqvarna 562XP

Model Year -

Clutch & Oil Pump - Parts Diagram
