Description

Husqvarna 560XPG

Model Year -

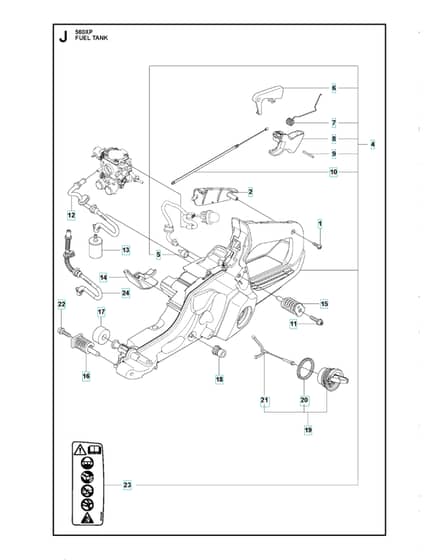

Fuel Tank - Parts Diagram

Ref. Img. Part No. Details
  1 Screw Citxpant HV525 88 74-02
Screw Citxpant
Out of stock
£1.20 £1.00

  2 Handle Insert HV504 10 63-01
Handle Insert
Out of stock
£6.80 £5.67

  4 Fuel Tank Assy HV575 38 22-05
Fuel Tank Assy
Out of stock
£167.16 £139.30

  5 Tank Vent Assy HV501 15 29-01
Tank Vent Assy
Out of stock
£17.11 £14.26

  6 Throttle Lockout HV544 09 98-01
Throttle Lockout
Out of stock
£6.80 £5.67

  7 Spring HV544 09 99-01
Spring
Out of stock
£3.49 £2.91

  8 Throttle HV505 15 77-01
Throttle
Out of stock
£6.38 £5.32

  9 Parallel Pin HV720 18 25-20
Parallel Pin
Out of stock
£1.48 £1.23

  10 Throttle Cable Assy HV521 88 79-01
Throttle Cable Assy
Out of stock
£22.14 £18.45

  11 Screw Itxscft HV525 79 81-02
Screw Itxscft
Out of stock
£2.02 £1.68

  12 Fuel Hose HV573 99 35-03
Fuel Hose
Out of stock
£10.73 £8.94

  14 Cover HV505 16 59-01
Cover
Out of stock
£6.70 £5.58

  15 Antivibration Element HV586 31 21-03
Antivibration Element
Out of stock
£21.01 £17.51

  16 Antivibration Element HV505 12 87-02
Antivibration Element
Out of stock
£22.87 £19.06

  17 Deflection Limiter HV523 08 55-01
Deflection Limiter
Out of stock
£5.92 £4.93

  18 Support HV501 00 76-01
Support
Out of stock
£1.93 £1.61

  19 Tank Cap Assy HV522 62 00-03
Tank Cap Assy
Out of stock
£9.30 £7.75

  20 Gasket HV589 24 11-01
Gasket
Out of stock
£5.36 £4.47

  21 Holder HV503 57 89-01
Holder
In stock
£5.35 £4.46

  22 Screw Itxscft HV525 79 81-03
Screw Itxscft
Out of stock
£0.83 £0.69

  23 Decal HV577 84 43-01
Decal
Out of stock
£2.92 £2.43

  24 Fuel Hosefrom S/N 20161000481 - HV577 50 41-01
Fuel Hosefrom S/N 20161000481 -
Out of stock
£11.15 £9.29


Description

Husqvarna 560XPG

Model Year -

Fuel Tank - Parts Diagram
