Husqvarna 556 - Clutch & Oil Pump

Husqvarna 556 - Clutch & Oil Pump
Husqvarna 556 - Clutch & Oil Pump

Description

Husqvarna 556

Model Year -

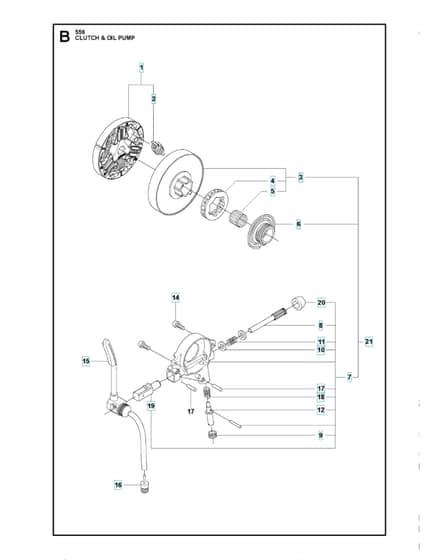

Clutch & Oil Pump - Parts Diagram

Ref. Img. Part No. Details
  2 Clutch Springs/N From 20164100193 -
Clutch Springs/N From 20164100193 -
HV502 16 47-01 Out of stock
Clutch Springs/N From 20164100193 -
£5.59 £4.66

  2 Clutch Springs/N From 20132500001 - Up To S/N 20164100192
Clutch Springs/N From 20132500001 - Up To S/N 20164100192
HV580 65 35-02 Out of stock
Clutch Springs/N From 20132500001 - Up To S/N 20164100192
£5.59 £4.66

  3 Clutch Drum
Clutch Drum
HV575 26 10-06 Out of stock
Clutch Drum"- Up To S/N 20202200048 ""3/8"" X7"""
£46.84 £39.03

  4 Rim
Rim
HV501 59 80-02 Out of stock
Rim"3/8""X7"
£13.60 £11.33

  5 Needle Bearing
Needle Bearing
HV503 25 34-01 Out of stock
Needle Bearing
£10.64 £8.87

  6 Worm Wheel- Up To S/N 20202200048
Worm Wheel- Up To S/N 20202200048
HV577 60 11-01 Out of stock
Worm Wheel- Up To S/N 20202200048
£11.78 £9.82

  8 Pump Piston
Pump Piston
HV505 20 02-03 Out of stock
Pump Piston
£16.54 £13.78

  9 Casing
Casing
HV505 20 03-01 Out of stock
Casing
£5.53 £4.61

  10 Washer
Washer
HV503 23 00-60 Out of stock
Washer
£2.05 £1.71

  11 Spring
Spring
HV503 89 16-01 Out of stock
Spring
£3.20 £2.67

  12 Adjustment Screw
Adjustment Screw
HV505 15 70-01 Out of stock
Adjustment Screw
£6.05 £5.04

  14 Screw Itxscm
Screw Itxscm
HV526 81 81-02 Out of stock
Screw Itxscm
£0.74 £0.62

  15 Oil Hose
Oil Hose
HV575 84 78-01 Out of stock
Oil Hose
£13.74 £11.45

  16 Oil Plummet
Oil Plummet
HV504 71 00-03 Out of stock
Oil Plummet
£10.69 £8.91

  17 Parallel Pin
Parallel Pin
HV720 12 33-00 Out of stock
Parallel Pin
£1.21 £1.01

  18 Spring
Spring
HV503 89 15-01 Out of stock
Spring
£2.78 £2.32

  19 Pump Cylinder
Pump Cylinder
HV505 20 01-01 Out of stock
Pump Cylinder
£6.96 £5.80

  20 Sealing Plug
Sealing Plug
HV503 62 49-03 Out of stock
Sealing Plug
£3.31 £2.76


Description

Husqvarna 556

Model Year -

Clutch & Oil Pump - Parts Diagram
