Husqvarna 555 - Carburetor Details

Husqvarna 555 - Carburetor Details
Husqvarna 555 - Carburetor Details

Description

Husqvarna 555

Model Year -

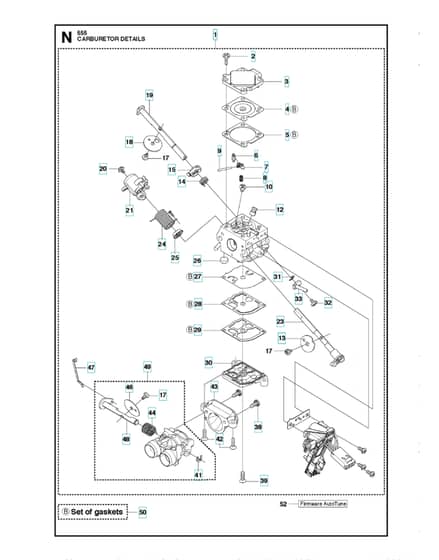

Carburetor Details - Parts Diagram

Ref. Img. Part No. Details
  1 Carburettors/N Up To - 20121499999 (Zama El44)
Carburettors/N Up To - 20121499999 (Zama El44)
HV579 19 41-01 Out of stock
Carburettors/N Up To - 20121499999 (Zama El44)
£146.04 £121.70

  1 Carburettor Kitzama140059A
Carburettor Kitzama140059A
HV501 46 33-06 Out of stock
Carburettor Kitzama140059A
£121.68 £101.40

  4 Diaphragm
Diaphragm
HV522 51 74-01 Out of stock
Diaphragm
£20.08 £16.73

  5 Gasket
Gasket
HV522 51 75-01 Out of stock
Gasket
£5.60 £4.67

  6 Valve
Valve
HV503 47 97-01 Out of stock
Valve
£14.08 £11.73

  7 Lever
Lever
HV503 66 59-01 Out of stock
Lever
£5.47 £4.56

  9 Pin Retaining Screw
Pin Retaining Screw
HV503 48 00-01 Out of stock
Pin Retaining Screw
£4.50 £3.75

  13 Throttle Valves/N 20142500001 - (Zamael49/140056A)
Throttle Valves/N 20142500001 - (Zamael49/140056A)
HV583 97 49-01 Out of stock
Throttle Valves/N 20142500001 - (Zamael49/140056A)
£9.36 £7.80

  13 Throttle Valves/N 20121401173 - 20142499999 (Zama El47)
Throttle Valves/N 20121401173 - 20142499999 (Zama El47)
HV579 05 91-01 Out of stock
Throttle Valves/N 20121401173 - 20142499999 (Zama El47)
£9.36 £7.80

  15 Lever
Lever
HV522 51 77-01 Out of stock
Lever
£8.08 £6.73

  17 Screw
Screw
HV503 48 18-01 Out of stock
Screw
£1.15 £0.96

  21 Throttle Lever
Throttle Lever
HV522 51 78-01 Out of stock
Throttle Lever
£6.71 £5.59

  23 Throttle Shaft
Throttle Shaft
HV522 51 85-01 Out of stock
Throttle Shaft
£20.22 £16.85

  24 Spring
Spring
HV502 07 87-01 Out of stock
Spring
£3.38 £2.82

  26 Strainer
Strainer
HV503 53 57-01 Out of stock
Strainer
£5.04 £4.20

  27 Diaphragm Pump
Diaphragm Pump
HV537 38 31-01 Out of stock
Diaphragm Pump
£11.77 £9.81

  28 Diaphragm
Diaphragm
HV537 40 33-01 Out of stock
Diaphragm
£13.60 £11.33

  29 Gasket
Gasket
HV537 02 01-01 Out of stock
Gasket
£4.45 £3.71

  31 Circlip
Circlip
HV504 02 67-01 Out of stock
Circlip
£4.50 £3.75

  32 Screw
Screw
HV503 47 90-01 Out of stock
Screw
£1.04 £0.87

  33 Choke Lever
Choke Lever
HV522 51 76-01 Out of stock
Choke Lever
£23.57 £19.64

  38 Screw
Screw
HV506 39 66-01 Out of stock
Screw
£1.55 £1.29

  41 Clip
Clip
HV537 38 52-01 Out of stock
Clip
£1.00 £0.83

  43 Inlet
Inlet
HV575 54 44-01 Out of stock
Inlet
£15.95 £13.29

  46 Valve
Valve
HV537 17 70-01 Out of stock
Valve
£19.57 £16.31

  47 Rod
Rod
HV522 51 79-01 Out of stock
Rod
£4.91 £4.09

  49 Throttle Valve Assy
Throttle Valve Assy
HV578 22 78-01 Out of stock
Throttle Valve Assy
£31.31 £26.09

  50 Kitb
Kitb
HV522 51 89-01 Out of stock
Kitb
£12.41 £10.34


Description

Husqvarna 555

Model Year -

Carburetor Details - Parts Diagram
