Husqvarna 550XP Mark II - Crankcase

Husqvarna 550XP Mark II - Crankcase
Husqvarna 550XP Mark II - Crankcase

Description

Husqvarna 550XP Mark II

Model Year -

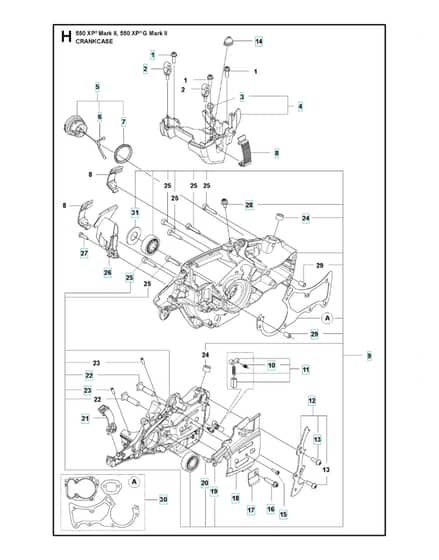

Crankcase - Parts Diagram

Ref. Img. Part No. Details
  1 Screw Itxscfm
Screw Itxscfm
HV575 88 57-03 Out of stock
Screw Itxscfm
£0.73 £0.61

  2 Support
Support
HV503 86 93-01 Out of stock
Support
£5.57 £4.64

  3 Guide Pin
Guide Pin
HV544 33 16-01 Out of stock
Guide Pin
£3.91 £3.26

  4 Carburettor Area Base
Carburettor Area Base
HV582 28 52-01 Out of stock
Carburettor Area Base
£13.93 £11.61

  5 Tank Cap Assy
Tank Cap Assy
HV522 62 00-03 Out of stock
Tank Cap Assy
£8.81 £7.34

  6 Holder
Holder
HV503 57 89-01 Out of stock
Holder
£5.35 £4.46

  7 Gasket
Gasket
HV589 24 11-01 Out of stock
Gasket
£5.06 £4.22

  8 Snap Locking
Snap Locking
HV503 89 47-03 In stock
Snap Locking
£4.27 £3.56

  10 Pin
Pin
HV503 75 18-01 Out of stock
Pin
£1.30 £1.08

  11 Catch
Catch
HV596 35 14-01 Out of stock
Catch
£14.76 £12.30

  12 Spike
Spike
HV596 35 13-01 Out of stock
Spike
£7.91 £6.59

  13 Screw Itxpanm
Screw Itxpanm
HV575 79 35-01 Out of stock
Screw Itxpanm
£0.83 £0.69

  14 Bellows
Bellows
HV581 55 92-01 Out of stock
Bellows
£4.27 £3.56

  16 Screw Itxscft
Screw Itxscft
HV525 79 81-03 Out of stock
Screw Itxscft
£0.77 £0.64

  17 Chain Catcher
Chain Catcher
HV537 37 79-02 Out of stock
Chain Catcher
£4.70 £3.92

  18 Chain Guide Plate
Chain Guide Plate
HV589 72 19-01 Out of stock
Chain Guide Plate
£9.38 £7.82

  19 Filter
Filter
HV537 40 35-01 Out of stock
Filter
£4.15 £3.46

  20 Check Valve
Check Valve
HV530 02 61-19 Out of stock
Check Valve
£6.28 £5.23

  21 Deflection Limiter
Deflection Limiter
HV505 12 58-01 Out of stock
Deflection Limiter
£6.79 £5.66

  22 Bar Bolt
Bar Bolt
HV505 21 73-01 Out of stock
Bar Bolt
£3.89 £3.24

  23 Parallel Pin
Parallel Pin
HV720 12 69-52 Out of stock
Parallel Pin
£3.56 £2.97

  24 Sleeve
Sleeve
HV589 33 13-01 Out of stock
Sleeve
£5.59 £4.66

  26 Air Nozzle
Air Nozzle
HV582 28 59-01 Out of stock
Air Nozzle
£7.02 £5.85

  27 Screw Itxscm
Screw Itxscm
HV526 81 81-01 Out of stock
Screw Itxscm
£0.66 £0.55

  28 Screw Itxscm
Screw Itxscm
HV525 82 44-01 Out of stock
Screw Itxscm
£1.87 £1.56

  29 Guide Bushing
Guide Bushing
HV501 27 08-02 Out of stock
Guide Bushing
£5.33 £4.44

  30 Gasket Kit
Gasket Kit
HV595 89 76-01 Out of stock
Gasket Kit
£8.45 £7.04


Description

Husqvarna 550XP Mark II

Model Year -

Crankcase - Parts Diagram
