Husqvarna 545 - Carburetor & Air Filter

Name: Husqvarna 545 - Carburetor & Air Filter
SKU: 545_carburetor_air_filter-group
Price: 0.55 GBP
Availability: InStock

Description

Husqvarna 545

Model Year -

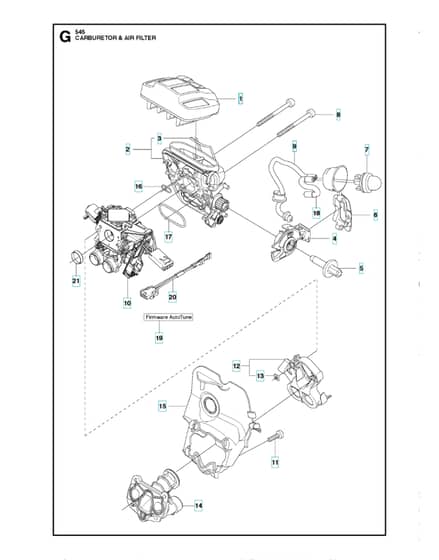

Carburetor & Air Filter - Parts Diagram

	Part No.	Details

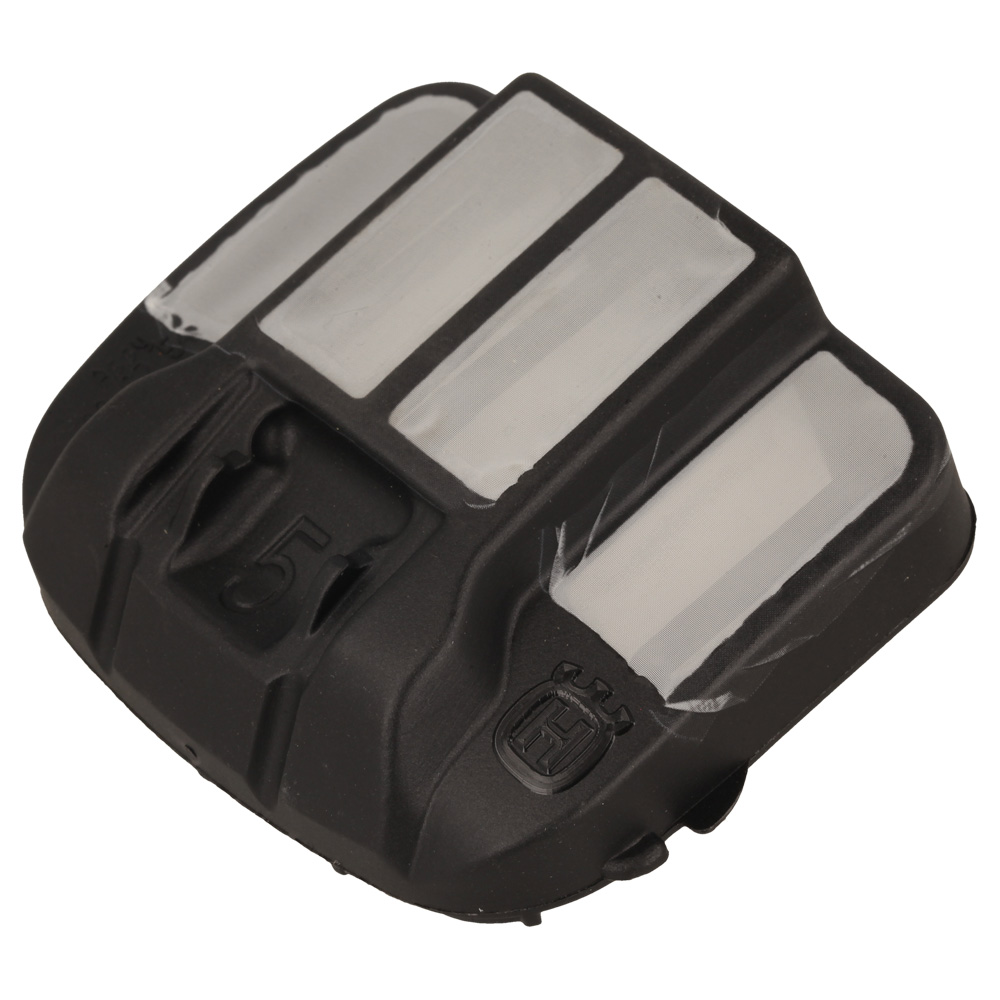

1	HV522 67 54-04 Out of stock	Air Filter Assynylon 80 Μm Black	£20.78 £17.32
1	HV522 67 54-07 Out of stock	Air Filter Assynylon 25 Μm Orange	£21.96 £18.30
1	HV522 67 54-05 Out of stock	Air Filter Assynylon 44 Μm Yellow	£21.96 £18.30
1	HV522 67 54-06 Out of stock	Air Filter Assyfelt White	£21.28 £17.73
2	HV574 19 89-03 Out of stock	Filter Holder Assy	£17.40 £14.50
3	HV522 90 73-01 Out of stock	Shackle	£4.76 £3.97
4	HV510 01 72-02 Out of stock	Choke Control Assy	£9.19 £7.66
5	HV505 15 62-01 Out of stock	Screw	£1.74 £1.45
6	HV525 58 81-01 Out of stock	Sealing	£5.96 £4.97
7	HV503 93 66-01 Out of stock	Purge	£13.72 £11.43
8	HV574 35 35-03 Out of stock	Screw Itxscm	£2.14 £1.78
9	HV587 64 54-04 Out of stock	Ventilating Hosefrom S/N 20153900097	£11.40 £9.50
9	HV589 35 71-01 Out of stock	Ventilating Hoseup To S/N 20153900096	£15.13 £12.61
10	HV587 08 48-07 Out of stock	Carburettor Kitat-7C	£147.13 £122.61
11	HV526 81 81-01 Out of stock	Screw Itxscm	£0.66 £0.55
12	HV523 06 40-02 Out of stock	Flange	£7.02 £5.85
13	HV503 22 65-03 Out of stock	Square Nut	£2.66 £2.22
14	HV525 50 00-03 Out of stock	Inlet Pipe Assy	£28.84 £24.03
15	HV522 95 10-01 Out of stock	Intermediate Wall	£6.28 £5.23
16	HV525 61 92-01 Out of stock	Sealing	£2.24 £1.87
17	HV525 61 90-01 Out of stock	Sealing	£6.31 £5.26
18	HV523 05 68-01 Out of stock	Fuel Hose	£4.36 £3.63
20	HV577 53 64-01 Out of stock	Wiring Assy	£12.54 £10.45
21	HV585 19 50-01 Out of stock	Support Sleeve	£5.33 £4.44
