Husqvarna 525RX - Bevel Gear

Husqvarna 525RX - Bevel Gear

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna 525RX - Bevel Gear

Husqvarna 525RX - Bevel Gear

Description

Husqvarna 525RX

Model Year -

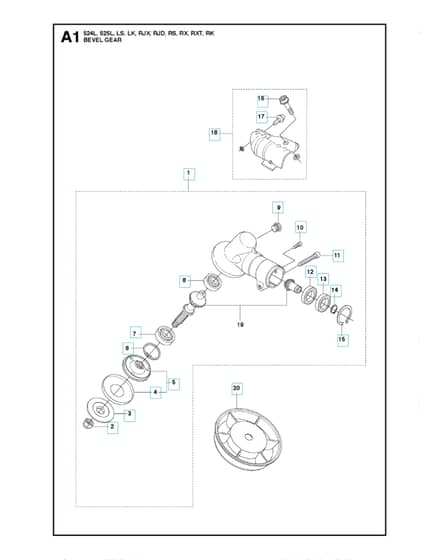

Bevel Gear - Parts Diagram

Be the first to review this product

0 product questions

Ref.		Img.	Part No.	Details
	2		HV503 85 63-01 In stock	Nut		£5.59 £4.66
	3		HV537 28 56-01 In stock	Support Flange		£11.59 £9.66
	4		HV537 29 26-01 Out of stock	Cup		£6.46 £5.38
	5		HV537 23 49-01 Out of stock	Driver Assy		£27.41 £22.84
	6		HV735 31 28-10 Out of stock	Circlip		£2.94 £2.45
	7		HV503 25 24-01 Out of stock	Ball Bearing		£8.03 £6.69
	8		HV738 21 98-00 Out of stock	Ball Bearing		£6.01 £5.01
	9		HV503 20 15-01 Out of stock	Screw		£5.51 £4.59
	10		HV503 20 14-12 Out of stock	Screw Ihscfmo		£1.39 £1.16
	11		HV503 20 07-25 Out of stock	Screw Ihscfm		£2.14 £1.78
	12		HV738 21 99-00 Out of stock	Ball Bearing		£6.01 £5.01
	13		HV738 21 99-02 Out of stock	Ball Bearing		£6.01 £5.01
	14		HV735 31 11-00 Out of stock	Circlip		£0.66 £0.55
	15		HV735 31 25-10 Out of stock	Circlip		£0.68 £0.57
	16		HV544 21 84-20 Out of stock	Screw Itxscm		£2.24 £1.87
	17		HV501 98 10-01 Out of stock	Screw Itxscm		£1.81 £1.51
	18		HV574 30 69-03 Out of stock	Clamp		£9.04 £7.53
	20		HV503 89 01-01 In stock	Support Cup		£10.22 £8.52

Description

Husqvarna 525RX

Model Year -

Bevel Gear - Parts Diagram
