Husqvarna 524L - Carburetor

Name: Husqvarna 524L - Carburetor
SKU: 524l_carburetor-group
Price: 1.48 GBP
Availability: InStock

Description

Husqvarna 524L

Model Year -

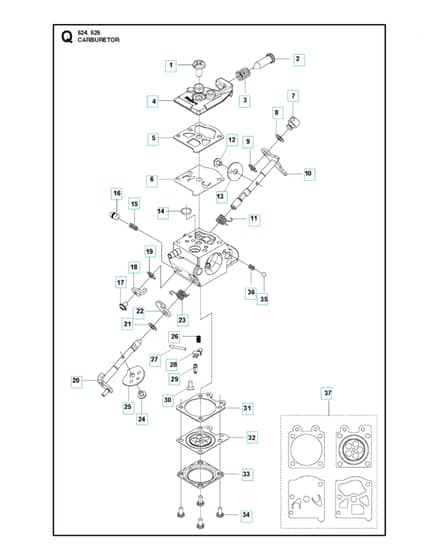

Carburetor - Parts Diagram

	Part No.	Details
2	HV577 81 57-01 Out of stock	Screw	£14.26 £11.88
3	HV513 59 32-01 Out of stock	Spring	£7.58 £6.32
4	HV579 19 06-01 Out of stock	Cover	£20.66 £17.22
5	HV520 95 48-01 Out of stock	Gasket	£7.80 £6.50
6	HV502 21 36-01 Out of stock	Diaphragm Pump	£7.56 £6.30
9	HV506 73 86-01 Out of stock	Retainer Ring	£1.78 £1.48
14	HV520 95 70-01 Out of stock	Screen	£2.58 £2.15
16	HV584 90 12-01 Out of stock	Piston Assy	£12.25 £10.21
18	HV579 19 08-01 Out of stock	Lever	£29.15 £24.29
20	HV579 19 10-01 Out of stock	Shaft	£31.15 £25.96
22	HV584 90 13-01 Out of stock	Lever	£29.00 £24.17
23	HV579 19 11-01 Out of stock	Spring	£8.34 £6.95
25	HV581 15 49-01 Out of stock	Valve	£13.56 £11.30
29	HV521 08 54-01 Out of stock	Valve.Inlet	£12.71 £10.59
31	HV516 97 21-01 Out of stock	Gasket	£6.84 £5.70
32	HV577 80 70-01 Out of stock	Diaphragm	£24.50 £20.42
37	HV580 68 48-01 Out of stock	Gasket Kitcoomopes By Item 5. 6. 31 And 32	£49.57 £41.31
