Husqvarna 440EII - Chain Brake & Clutch Cover 2

Name: Husqvarna 440EII - Chain Brake & Clutch Cover 2
SKU: 440eii_chain_brake_clutch_cover_2-group
Price: 0.58 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna 440EII - Chain Brake & Clutch Cover 2

Description

Husqvarna 440EII

Model Year -

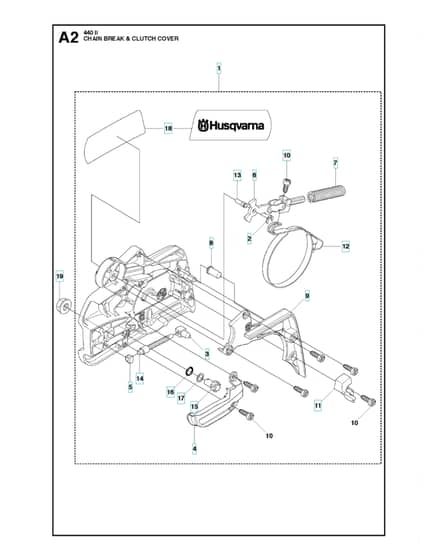

Chain Brake & Clutch Cover 2 - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
2	HV735 31 08-20 Out of stock	E-Clip	£0.70 £0.58
3	HV537 28 66-01 Out of stock	Pawl	£6.25 £5.21
4	HV540 06 33-01 Out of stock	Chain Guide	£5.58 £4.65
5	HV537 01 74-01 Out of stock	Bearing Sleeve	£5.60 £4.67
6	HV503 89 08-02 Out of stock	Knee Joint Assy	£26.59 £22.16
7	HV505 89 26-01 Out of stock	Brake Spring	£5.06 £4.22
8	HV503 85 52-01 Out of stock	Guide Bushing	£5.60 £4.67
9	HV544 24 85-01 Out of stock	Cover Lid	£8.32 £6.93
10	HV503 21 70-10 Out of stock	Screw Ccrpant	£1.45 £1.21
11	HV544 25 31-01 Out of stock	Wear Protection	£6.17 £5.14
12	HV544 30 60-03 In stock	Brake Band Assy	£11.02 £9.18
13	HV503 89 29-01 Out of stock	Pin	£1.37 £1.14
14	HV537 39 70-01 Out of stock	Worm Screw	£11.66 £9.72
15	HV537 07 94-02 Out of stock	Worm Wheel	£12.95 £10.79
16	HV740 48 07-02 Out of stock	O-Ring	£3.62 £3.02
17	HV503 23 00-63 Out of stock	Washer	£2.26 £1.88
18	HV544 37 68-01 Out of stock	Label	£3.04 £2.53
19	HV503 22 00-01 Out of stock	Hexagon Nut	£2.65 £2.21
