Husqvarna 372XP/XPG - Chain Brake & Clutch Cover

Name: Husqvarna 372XP/XPG - Chain Brake & Clutch Cover
SKU: 372xp_xpg_chain_brake_clutch_cover-group
Price: 0.57 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna 372XP/XPG - Chain Brake & Clutch Cover

Description

Husqvarna 372XP/XPG

Model Year -

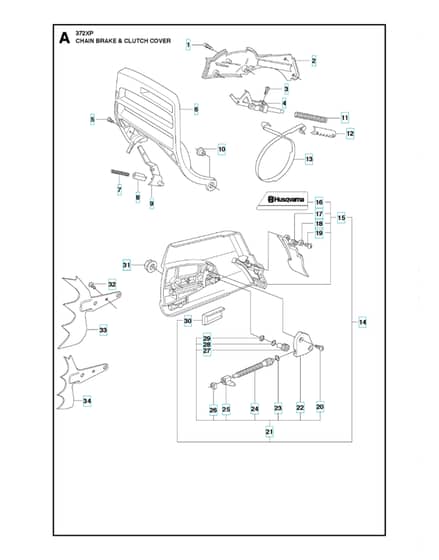

Chain Brake & Clutch Cover - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HV525 75 52-01 Out of stock	Screw Itxscfm	£0.68 £0.57
2	HV503 75 11-03 Out of stock	Hub Cap	£8.59 £7.16
5	HV586 43 85-01 Out of stock	Screw Itxscm	£0.73 £0.61
6	HV503 76 49-03 Out of stock	Hand Guard	£36.18 £30.15
7	HV503 43 65-01 Out of stock	Position Spring	£3.17 £2.64
8	HV503 83 81-02 Out of stock	Lock	£5.96 £4.97
9	HV537 00 87-01 Out of stock	Brake Lever	£12.47 £10.39
10	HV503 77 52-01 Out of stock	Bushing	£5.90 £4.92
11	HV503 70 99-02 Out of stock	Brake Spring	£6.37 £5.31
12	HV503 79 27-02 Out of stock	Support	£3.53 £2.94
13	HV503 75 22-02 Out of stock	Brake Band Assy	£12.60 £10.50
14	HV537 03 35-07 Out of stock	Clutch Cover Assy	£54.04 £45.03
15	HV537 03 35-71 Out of stock	Clutch Cover Assy	£52.70 £43.92
16	HV537 03 38-03 Out of stock	Label	£2.69 £2.24
17	HV503 76 29-02 Out of stock	Chip Guard	£7.46 £6.22
18	HV503 89 70-01 Out of stock	Sleeve	£5.33 £4.44
21	HV537 04 41-02 Out of stock	Chain Tensioner	£44.86 £37.38
22	HV537 01 68-01 Out of stock	Cover	£6.10 £5.08
23	HV503 23 00-66 Out of stock	Washer	£2.20 £1.83
24	HV537 07 95-02 Out of stock	Worm Screw	£12.26 £10.22
25	HV503 99 83-01 Out of stock	Pawl	£6.31 £5.26
26	HV537 01 74-01 Out of stock	Bearing Sleeve	£5.33 £4.44
27	HV537 07 94-02 Out of stock	Worm Wheel	£12.26 £10.22
28	HV503 23 00-63 Out of stock	Washer	£2.20 £1.83
29	HV740 48 07-02 Out of stock	O-Ring	£3.53 £2.94
30	HV501 51 72-01 Out of stock	Chain Guide	£4.15 £3.46
31	HV503 22 00-01 Out of stock	Hexagon Nut	£2.50 £2.08
32	HV525 88 74-02 Out of stock	Screw Citxpant	£1.13 £0.94
33	HV503 92 27-01 Out of stock	Spike372 Wrap	£29.53 £24.61
34	HV503 71 97-01 Out of stock	Spike	£18.22 £15.18
