Husqvarna 326Lx - Shaft & Handle

Name: Husqvarna 326Lx - Shaft & Handle
SKU: 326lx_shaft_handle-group
Price: 0.44 GBP
Availability: InStock

Description

Husqvarna 326Lx

Model Year -

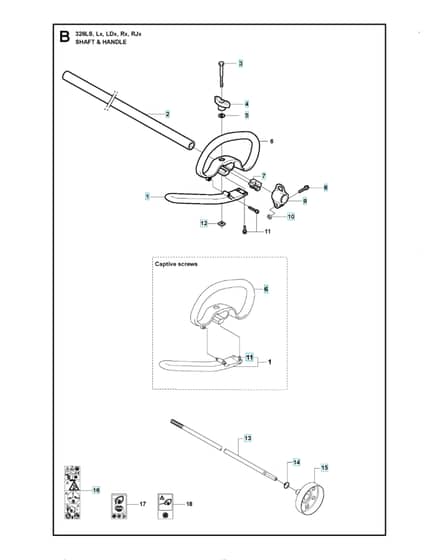

Shaft & Handle - Parts Diagram

	Part No.	Details
1	HV503 99 78-04 Out of stock	Handlecaptive Screws	£11.96 £9.97
2	HV503 88 88-01 Out of stock	Tube	£119.90 £99.92
3	HV725 23 78-51 Out of stock	Screw Ehhm326L. Ls	£3.43 £2.86
3	HV725 23 80-51 Out of stock	Screw Ehhm326Lx.	£2.96 £2.47
4	HV503 87 90-01 Out of stock	Knob326Lx	£4.72 £3.93
5	HV503 23 00-61 Out of stock	Washer326L. Ls	£2.46 £2.05
6	HV503 87 19-08 Out of stock	Handlecaptive Screws	£45.38 £37.82
7	HV503 94 03-01 Out of stock	Distance	£5.16 £4.30
8	HV503 20 07-16 Out of stock	Screw Ihscfm326Rjx	£1.87 £1.56
9	HV503 94 10-01 Out of stock	Hook326Rjx	£7.70 £6.42
10	HV731 23 14-01 In stock	Hexagon Nut326Rjx	£1.37 £1.14
11	HV574 18 15-01 Out of stock	Screw Ihscfto326Rjx Captive Screws	£1.36 £1.13
11	HV503 21 68-16 Out of stock	Screw Ihsct326Rjx	£1.39 £1.16
12	HV502 19 71-01 In stock	Square Nut	£4.62 £3.85
13	HV537 23 48-01 Out of stock	Drive Shaft	£58.20 £48.50
14	HV735 31 12-00 Out of stock	Circlip	£0.53 £0.44
15	HV537 23 75-01 Out of stock	Clutch Drum Assy	£45.22 £37.68
