Description

Husqvarna 3120XP

Model Year -

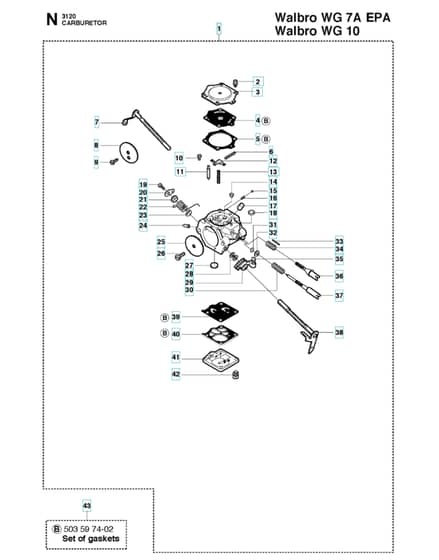

Carburetor - Parts Diagram

Ref. Img. Part No. Details
  1 Carburettorwg10
Carburettorwg10
HV503 28 20-01 Out of stock
Carburettorwg10
£166.07 £138.39

  1 Carburettorwg 7A Epa
Carburettorwg 7A Epa
HV503 28 12-16 Out of stock
Carburettorwg 7A Epa
£166.07 £138.39

  3 Cover
Cover
HV501 69 28-01 Out of stock
Cover
£6.11 £5.09

  4 Diaphragm Assy
Diaphragm Assy
HV503 63 28-01 Out of stock
Diaphragm Assy
£12.29 £10.24

  5 Gasket
Gasket
HV501 46 75-01 Out of stock
Gasket
£4.33 £3.61

  6 Pin
Pin
HV505 31 67-31 Out of stock
Pin
£4.26 £3.55

  7 Shaft Assy
Shaft Assy
HV503 52 57-01 Out of stock
Shaft Assy
£23.38 £19.48

  8 Valve Choke
Valve Choke
HV503 52 58-01 Out of stock
Valve Choke
£6.61 £5.51

  11 Valve -Inlet Needle
Valve -Inlet Needle
HV503 63 25-01 Out of stock
Valve -Inlet Needle
£17.65 £14.71

  12 Lever
Lever
HV505 31 67-34 Out of stock
Lever
£5.09 £4.24

  14 Jetepa
Jetepa
HV503 97 67-05 Out of stock
Jetepa
£10.02 £8.35

  15 Ball
Ball
HV501 46 85-01 Out of stock
Ball
£4.36 £3.63

  16 Spring
Spring
HV501 46 84-01 Out of stock
Spring
£2.78 £2.32

  17 Nozzle Assy
Nozzle Assy
HV503 97 66-01 Out of stock
Nozzle Assy
£6.90 £5.75

  18 Plug
Plug
HV503 57 42-01 Out of stock
Plug
£4.26 £3.55

  19 Screw
Screw
HV501 46 87-01 Out of stock
Screw
£1.13 £0.94

  20 Lever
Lever
HV503 59 56-01 Out of stock
Lever
£8.29 £6.91

  22 Spring Thrott Return
Spring Thrott Return
HV503 52 59-01 Out of stock
Spring Thrott Return
£3.20 £2.67

  23 Bushing
Bushing
HV502 10 31-01 Out of stock
Bushing
£4.66 £3.88

  24 Fitting
Fitting
HV503 59 84-01 Out of stock
Fitting
£5.09 £4.24

  25 Valve Throttle
Valve Throttle
HV503 63 24-01 Out of stock
Valve Throttle
£6.66 £5.55

  26 Screw
Screw
HV530 03 50-15 Out of stock
Screw
£1.13 £0.94

  27 Screen
Screen
HV501 66 61-01 Out of stock
Screen
£4.98 £4.15

  29 Lever
Lever
HV503 59 57-01 Out of stock
Lever
£6.78 £5.65

  30 Spring
Spring
HV505 31 67-37 Out of stock
Spring
£3.20 £2.67

  31 O-Ring
O-Ring
HV503 59 55-01 Out of stock
O-Ring
£3.65 £3.04

  32 Washer
Washer
HV503 59 72-01 Out of stock
Washer
£2.46 £2.05

  33 Pin Throttle Stop
Pin Throttle Stop
HV503 52 60-01 Out of stock
Pin Throttle Stop
£4.80 £4.00

  35 Screw
Screw
HV503 59 65-01 Out of stock
Screw
£1.87 £1.56

  36 Screw Idle Speed
Screw Idle Speed
HV503 63 29-01 Out of stock
Screw Idle Speed
£2.93 £2.44

  37 Needle Idle Speed
Needle Idle Speed
HV503 63 32-01 Out of stock
Needle Idle Speed
£12.18 £10.15

  38 Shaft Assy
Shaft Assy
HV503 59 59-01 Out of stock
Shaft Assy
£12.80 £10.67

  39 Diaphragm Pump
Diaphragm Pump
HV503 11 73-01 Out of stock
Diaphragm Pump
£8.39 £6.99

  40 Gasket
Gasket
HV503 11 72-01 Out of stock
Gasket
£7.10 £5.92

  41 Cover
Cover
HV503 59 58-01 Out of stock
Cover
£30.10 £25.08

  42 Screw
Screw
HV503 11 75-01 Out of stock
Screw
£2.14 £1.78

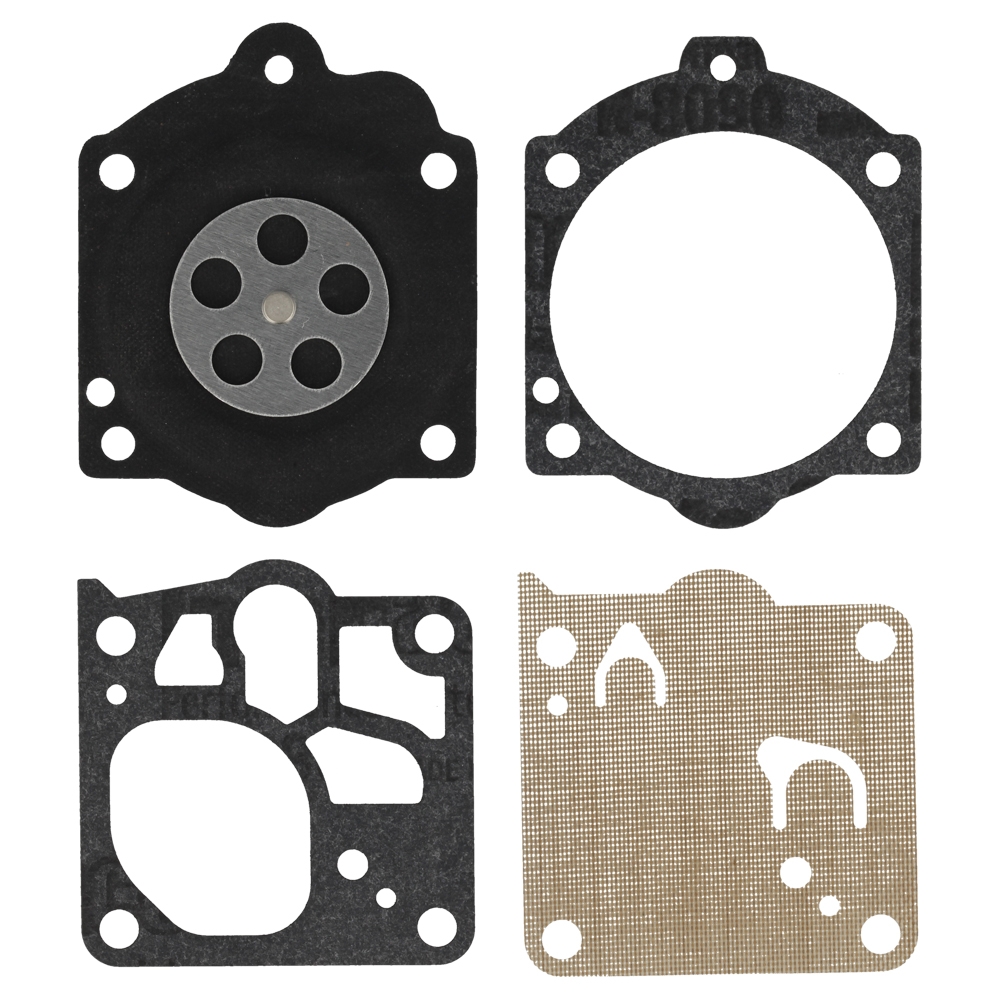

  43 Gasket Kitset Of Gaskets
Gasket Kitset Of Gaskets
HV503 59 74-02 Out of stock
Gasket Kitset Of Gaskets
£19.74 £16.45


Description

Husqvarna 3120XP

Model Year -

Carburetor - Parts Diagram
