Husqvarna 232R - 2002-2006 - Bevel Gear

Husqvarna 232R - 2002-2006 - Bevel Gear
Husqvarna 232R - 2002-2006 - Bevel Gear

Description

Husqvarna 232R

Model Year - 2002-2006

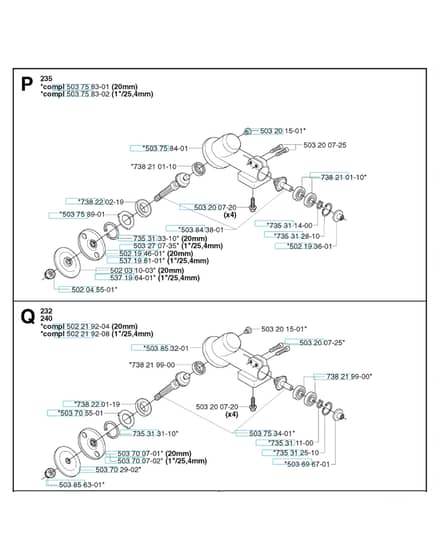

Bevel Gear - Parts Diagram

Ref. Img. Part No. Details
  502 Support Flange20mm
Support Flange20mm
HV502 03 10-03 Out of stock
Support Flange20mm
£26.24 £21.87

  502 Nut
Nut
HV502 04 55-01 Out of stock
Nut
£2.75 £2.29

  502 Gear1/25.4mm
Gear1/25.4mm
HV502 21 92-08 Out of stock
Gear1/25.4mm
£248.68 £207.23

  503 Gear Wheel
Gear Wheel
HV503 84 38-01 Out of stock
Gear Wheel
£70.01 £58.34

  503 Screw Ihscfm
Screw Ihscfm
HV503 20 07-25 Out of stock
Screw Ihscfm
£2.14 £1.78

  503 Driver1/25.4mm
Driver1/25.4mm
HV503 70 07-02 Out of stock
Driver1/25.4mm
£48.54 £40.45

  503 Gear Housing
Gear Housing
HV503 75 84-01 Out of stock
Gear Housing
£91.00 £75.83

  503 Gear Housing
Gear Housing
HV503 85 32-01 Out of stock
Gear Housing
£80.11 £66.76

  503 Screw
Screw
HV503 20 15-01 Out of stock
Screw
£5.51 £4.59

  503 Support Flange
Support Flange
HV503 70 29-02 Out of stock
Support Flange
£20.57 £17.14

  503 Cover Washer
Cover Washer
HV503 75 89-01 Out of stock
Cover Washer
£2.20 £1.83

  503 Nut
Nut
HV503 85 63-01 In stock
Nut
£5.59 £4.66

  503 Driver20mm
Driver20mm
HV503 70 07-01 Out of stock
Driver20mm
£48.54 £40.45

  503 Gear1/25.4mm
Gear1/25.4mm
HV503 75 83-02 Out of stock
Gear1/25.4mm
£286.20 £238.50

  537 Driver1/25.4mm
Driver1/25.4mm
HV537 19 61-01 Out of stock
Driver1/25.4mm
£32.33 £26.94

  537 Support Flange1/25.4mm
Support Flange1/25.4mm
HV537 19 64-01 Out of stock
Support Flange1/25.4mm
£20.57 £17.14

  735 Circlip
Circlip
HV735 31 14-00 Out of stock
Circlip
£0.54 £0.45

  735 Circlip
Circlip
HV735 31 31-10 Out of stock
Circlip
£0.71 £0.59

  735 Circlip
Circlip
HV735 31 25-10 Out of stock
Circlip
£0.68 £0.57

  735 Circlip20mm
Circlip20mm
HV735 31 33-10 Out of stock
Circlip20mm
£0.74 £0.62

  735 Circlip
Circlip
HV735 31 11-00 Out of stock
Circlip
£0.66 £0.55

  735 Circlip
Circlip
HV735 31 28-10 Out of stock
Circlip
£2.94 £2.45

  738 Ball Bearing
Ball Bearing
HV738 21 99-00 Out of stock
Ball Bearing
£6.01 £5.01

  738 Ball Bearing
Ball Bearing
HV738 22 01-19 Out of stock
Ball Bearing
£7.02 £5.85

  738 Ball Bearing
Ball Bearing
HV738 21 01-10 Out of stock
Ball Bearing
£6.01 £5.01

  738 Ball Bearing
Ball Bearing
HV738 22 02-19 Out of stock
Ball Bearing
£7.36 £6.13


Description

Husqvarna 232R

Model Year - 2002-2006

Bevel Gear - Parts Diagram
