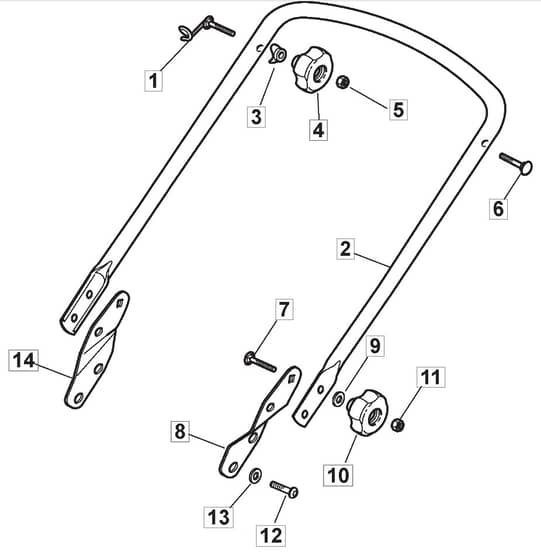

HP470 - 2007 - 299174628/BQ - Mountfield Rotary Mower Lower Handle Diagram

Name: HP470 - 2007 - 299174628/BQ - Mountfield Rotary Mower Lower Handle Diagram
SKU: hp470_299174628_bq_lower_handle-group
Price: 1.24 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

HP470 - 2007 - 299174628/BQ - Mountfield Rotary Mower Lower Handle Diagram

Description

Mountfield HP470 Parts Diagram

Product Name - MOUNTFIELD HP470

Model Year - 2007

Model Type - ES 464

Art.N - 299174628/BQ

Be the first to review this product

0 product questions

	Part No.	Details
1	MO181003801/1 Out of stock	Guide Spring	£3.25 £2.71
2	MO381006686/0 In stock	Handle Lower Part	£40.63 £33.86
3	MO122680006/1 In stock	Washer	£1.75 £1.46
6	MO112819201/0 Out of stock	Screw	£2.70 £2.25
7	MO112818900/0 Out of stock	Screw	£1.49 £1.24
8	MO322778425/0 Out of stock	Left Bracket From 01-9-2007	£9.55 £7.96
9	MO122671653/0 Out of stock	Washer	£1.49 £1.24
10	MO122399900/0 In stock	Black Knob	£1.49 £1.24
11	MO112293200/0 In stock	Nut	£1.49 £1.24
12	MO112760605/0 In stock	Screw	£3.25 £2.71
13	MO112521350/0 In stock	Washer	£1.49 £1.24
14	MO322778423/0 Out of stock	Right Bracket From 01-9-2007	£10.94 £9.12
