HP470 - 2006 - 299164623/BQ - Mountfield Rotary Mower Main Assembly Diagram

HP470 - 2006 - 299164623/BQ - Mountfield Rotary Mower Main Assembly Diagram
HP470 - 2006 - 299164623/BQ - Mountfield Rotary Mower Main Assembly Diagram

Description

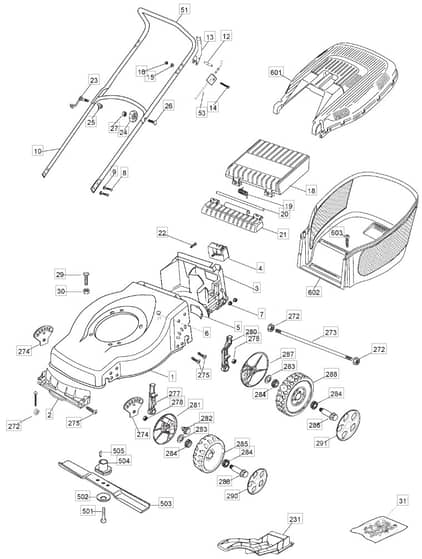

Mountfield HP470 Parts Diagram

Product Name - HP 470

Model Year - 2006

Model Type - ES 464

Art.N - 299164623/BQ

Ref. Img. Part No. Details
  2 Front Baffle HP470
Front Baffle HP470
MO322108271/0 Out of stock
Front Baffle HP470
£12.73 £10.61

  3 Rear Baffle HP470
Rear Baffle HP470
MO322108272/2 Out of stock
Rear Baffle HP470
£20.34 £16.95

  4 Battery Holder HP470
Battery Holder HP470
MO322109531/0 Out of stock
Battery Holder HP470
£14.34 £11.95

  5 Cap HP470
Cap HP470
MO322109532/0 Out of stock
Cap HP470
£1.40 £1.17

  8 Bolt HP470
Bolt HP470
MO112760605/0 In stock
Bolt HP470
£3.22 £2.68

  9 Washer HP470
Washer HP470
MO9699-0028-02 Out of stock
Washer HP470
£1.66 £1.38

  10 Handle-Lower HP470
Handle-Lower HP470
MO381006686/0 In stock
Handle-Lower HP470
£39.47 £32.89

  12 Locating Pin HP470
Locating Pin HP470
MO112645710/0 In stock
Locating Pin HP470
£2.00 £1.67

  13 Opc Lever (Red) HP470
Opc Lever (Red) HP470
MO322321700/1 In stock
Opc Lever (Red) HP470
£3.31 £2.76

  14 Screw HP470
Screw HP470
MO112674700/0 Out of stock
Screw HP470
£1.48 £1.23

  15 Washer HP470
Washer HP470
MO112521330/0 Out of stock
Washer HP470
£1.48 £1.23

  16 Nut HP470
Nut HP470
MO112292100/0 Out of stock
Nut HP470
£1.34 £1.12

  18 Rear Flap (Black) HP470
Rear Flap (Black) HP470
MO322600099/2 Out of stock
Rear Flap (Black) HP470
£4.58 £3.82

  19 Spring-Rear Flap HP470
Spring-Rear Flap HP470
MO122450431/0 Out of stock
Spring-Rear Flap HP470
£6.96 £5.80

  20 Shaft For Rear Flap HP470
Shaft For Rear Flap HP470
MO122517858/0 Out of stock
Shaft For Rear Flap HP470
£5.09 £4.24

  21 Rear Flap Holder (Black) HP470
Rear Flap Holder (Black) HP470
MO322785136/1 In stock
Rear Flap Holder (Black) HP470
Was £3.18 £2.65 Special Price £2.04 £1.70

  23 Screw HP470
Screw HP470
MO181003801/1 In stock
Screw HP470
£3.18 £2.65

  24 Knob HP470
Knob HP470
MO122399900/0 In stock
Knob HP470
£1.48 £1.23

  25 Washer HP470
Washer HP470
MO122680006/1 In stock
Washer HP470
£1.74 £1.45

  26 Screw HP470
Screw HP470
MO112819201/0 Out of stock
Screw HP470
£2.68 £2.23

  27 Nut HP470
Nut HP470
MO112293200/0 In stock
Nut HP470
£1.48 £1.23

  29 Screw HP470
Screw HP470
MO112793701/0 Out of stock
Screw HP470
£1.48 £1.23

  30 Nut HP470
Nut HP470
MO112293201/0 In stock
Nut HP470
£1.61 £1.34

  31 Assy Kit HP470
Assy Kit HP470
MO381008648/1 Out of stock
Assy Kit HP470
£12.73 £10.61

  53 Cable. Thread Engine Brake HP470
Cable. Thread Engine Brake HP470
MO181000681/0 In stock
Cable. Thread Engine Brake HP470
£13.39 £11.16

  231 Mulch Plug (Yellow) HP470
Mulch Plug (Yellow) HP470
MO322140226/0 In stock
Mulch Plug (Yellow) HP470
£19.73 £16.44

  272 Nut HP470
Nut HP470
MO122131750/0 In stock
Nut HP470
£1.87 £1.56

  273 Reinforcement HP470
Reinforcement HP470
MO122033364/0 Out of stock
Reinforcement HP470
£24.11 £20.09

  274 Sector HP470
Sector HP470
MO322735557/0 Out of stock
Sector HP470
£3.31 £2.76

  277 Lever. Height Adjustment HP470
Lever. Height Adjustment HP470
MO381003306/0 In stock
Lever. Height Adjustment HP470
£5.99 £4.99

  278 Lock Nut HP470
Lock Nut HP470
MO112155000/0 In stock
Lock Nut HP470
£1.48 £1.23

  280 Lever. Height Adjustment HP470
Lever. Height Adjustment HP470
MO381003307/0 In stock
Lever. Height Adjustment HP470
£12.60 £10.50

  281 Wheel Plate HP470
Wheel Plate HP470
MO322600170/0 In stock
Wheel Plate HP470
£9.55 £7.96

  282 Shoulder Bolt HP470
Shoulder Bolt HP470
MO122524324/0 Out of stock
Shoulder Bolt HP470
£4.02 £3.35

  283 Washer HP470
Washer HP470
MO325670011/0 Out of stock
Washer HP470
£1.66 £1.38

  284 Bushing HP470
Bushing HP470
MO122034508/0 In stock
Bushing HP470
£1.48 £1.23

  285 Wheel HP470
Wheel HP470
MO322686091/1 In stock
Wheel HP470
£6.42 £5.35

  286 Wheel Bolt HP470
Wheel Bolt HP470
MO122524341/0 In stock
Wheel Bolt HP470
£7.15 £5.96

  287 Wheel Plate HP470
Wheel Plate HP470
MO322600098/0 Out of stock
Wheel Plate HP470
£7.76 £6.47

  288 Wheel HP470
Wheel HP470
MO322686092/0 Out of stock
Wheel HP470
£5.60 £4.67

  290 Hub Cap-Grey HP470
Hub Cap-Grey HP470
MO322110721/0 Out of stock
Hub Cap-Grey HP470
£2.28 £1.90

  291 Hub Cap-Grey HP470
Hub Cap-Grey HP470
MO322110687/0 Out of stock
Hub Cap-Grey HP470
£2.42 £2.02

  501 Screw HP470
Screw HP470
MO112735698/0 In stock
Screw HP470
£1.74 £1.45

  502 Spring Washer HP470
Spring Washer HP470
MO112369600/0 Out of stock
Spring Washer HP470
£3.89 £3.24

  503 Blade HP470
Blade HP470
MO181004121/0 In stock
Blade HP470
£12.72 £10.60

  505 Key HP470
Key HP470
MO112139100/0 In stock
Key HP470
£1.48 £1.23

  601 Grassbag-Upper (Black) HP470
Grassbag-Upper (Black) HP470
MO322486122/0 In stock
Grassbag-Upper (Black) HP470
£25.21 £21.01

  602 Lower Grass Bag (Black) HP470
Lower Grass Bag (Black) HP470
MO322486128/0 Out of stock
Lower Grass Bag (Black) HP470
£31.82 £26.52
