HP465 R - 2011-2013 - 294486038/UM8 - Mountfield Rotary Mower Deck Diagram

Name: HP465 R - 2011-2013 - 294486038/UM8 - Mountfield Rotary Mower Deck Diagram
SKU: hp465_r_294486038_um8_deck-group
Price: 1.23 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

HP465 R - 2011-2013 - 294486038/UM8 - Mountfield Rotary Mower Deck Diagram

Description

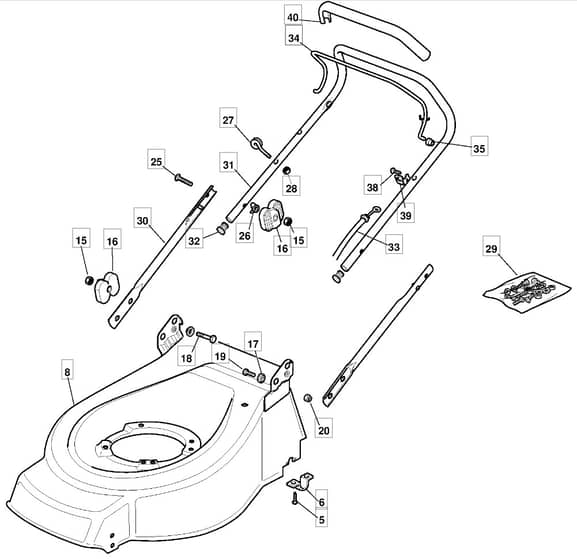

Mountfield HP465 R Parts Diagram

Product Name - HP465R

Model Year - 2011-2013

Model Type - TD 484

Art.N - 294486038/UM8

Be the first to review this product

0 product questions

	Part No.	Details
1	MO112731350/0 Out of stock	Screw To 31-August-2004	£1.48 £1.23
6	MO322545154/0 Out of stock	Plate	£1.66 £1.38
15	MO112293202/0 Out of stock	Nut	£1.87 £1.56
16	MO122399803/0 Out of stock	Knob	£1.61 £1.34
17	MO322041955/0 Out of stock	Bushing	£1.66 £1.38
19	MO112792610/0 Out of stock	Screw	£1.66 £1.38
20	MO112155000/0 In stock	Nut	£1.48 £1.23
25	MO112819125/0 Out of stock	Screw	£1.48 £1.23
26	MO122680006/1 In stock	Washer	£1.74 £1.45
27	MO122430309/0 Out of stock	Spring	£2.94 £2.45
28	MO112154330/0 Out of stock	Nut	£1.48 £1.23
31	MO381006977/1 Out of stock	Handle Lower Part	£33.10 £27.58
32	MO118566112/0 Out of stock	Polyethylene Push Road D.20Inch	£1.48 £1.23
33	MO181000641/0 Out of stock	Cable. Thread Engine Brake Honda Engine	£14.06 £11.72
34	MO181003291/3 Out of stock	Lever. Engine Brake From 01-9-2006	£14.14 £11.78
35	MO122041966/0 In stock	Bushing	£1.48 £1.23
38	MO112728518/0 Out of stock	Screw	£1.48 £1.23
39	MO322806612/0 Out of stock	Support	£3.06 £2.55
40	MO122291050/0 Out of stock	Soft Hand Grip [Black]	£13.52 £11.27
