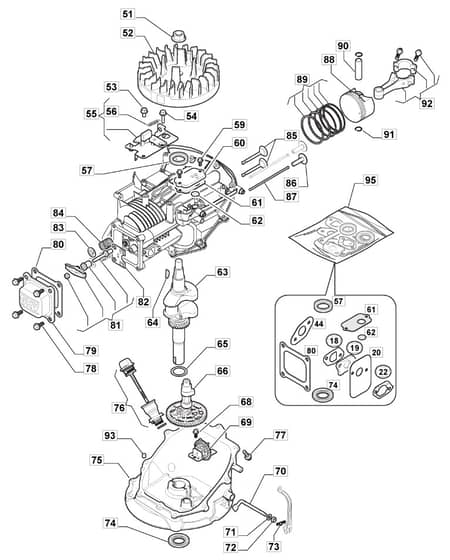

HP454 - 2016-2018 - 299024643/BQ - Mountfield Rotary Mower Cylinder Diagram

Name: HP454 - 2016-2018 - 299024643/BQ - Mountfield Rotary Mower Cylinder Diagram
SKU: hp454_299024643_bq_cylinder-group
Price: 1.23 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

HP454 - 2016-2018 - 299024643/BQ - Mountfield Rotary Mower Cylinder Diagram

Description

Mountfield HP454 Parts Diagram

Product Name - HP454

Model Year - 2016-2018

Model Type - ESL 464

Art.N - 299024643/BQ

Engine Model - WB45

Be the first to review this product

0 product questions

	Part No.	Details
1	MO118550929/0 In stock	Gasket	£1.48 £1.23
19	MO118550928/0 In stock	Insulator. Carburettor	£2.81 £2.34
20	MO118550927/0 In stock	Gasket	£4.55 £3.79
22	MO118550924/0 In stock	Gasket	£1.61 £1.34
44	MO118550898/0 Out of stock	Gasket. Muffler	£2.28 £1.90
51	MO118550336/0 Out of stock	Nut	£5.76 £4.80
52	MO118550905/0 Out of stock	Flywheel Ass.Y	£79.67 £66.39
55	MO118551483/0 Out of stock	Flywheel Brake.Stop Switch Assy	£37.49 £31.24
57	MO118550300/0 Out of stock	Oil Seal	£6.90 £5.75
62	MO118550902/0 Out of stock	Valve	£1.87 £1.56
63	MO118550889/0 Out of stock	Crankshaft	£93.73 £78.11
64	MO118550288/0 Out of stock	Woodruff Key	£5.89 £4.91
65	MO118550283/0 Out of stock	Washer	£3.22 £2.68
66	MO118550890/0 Out of stock	Camshaft Assy	£29.46 £24.55
68	MO112789000/0 Out of stock	Screw	£1.48 £1.23
69	MO118550888/0 Out of stock	Speed Governor Assy	£15.80 £13.17
70	MO118550936/0 Out of stock	Shaft. Governor Arm	£6.16 £5.13
74	MO118550379/0 Out of stock	Oil Seal	£6.43 £5.36
76	MO118550887/0 Out of stock	Tank Cap	£10.44 £8.70
77	MO112791500/0 Out of stock	Screw	£1.48 £1.23
78	MO118551276/0 Out of stock	Bolt	£3.22 £2.68
79	MO118550891/0 Out of stock	Cover Comp. Head	£12.79 £10.66
80	MO118550892/0 Out of stock	Packing Head Cover	£3.08 £2.57
81	MO118550893/0 Out of stock	Valve Arm Set	£12.52 £10.43
85	MO118550910/0 Out of stock	Valve Assy. Intake + Exhaust	£20.48 £17.07
86	MO118550291/0 Out of stock	Valve Lifter Assy	£9.24 £7.70
87	MO118550912/0 Out of stock	Push Rod	£6.83 £5.69
88	MO118551216/0 Out of stock	Piston	£31.82 £26.52
89	MO118550913/0 Out of stock	Piston. Ring Set	£20.76 £17.30
90	MO118550915/0 Out of stock	Piston Pin	£5.09 £4.24
91	MO118550914/0 Out of stock	Washer. Piston Pin	£1.48 £1.23
92	MO118550916/0 Out of stock	Connecting Rod Assy	£23.96 £19.97
95	MO118550940/0 Out of stock	Engine Gasket Set	£24.11 £20.09
