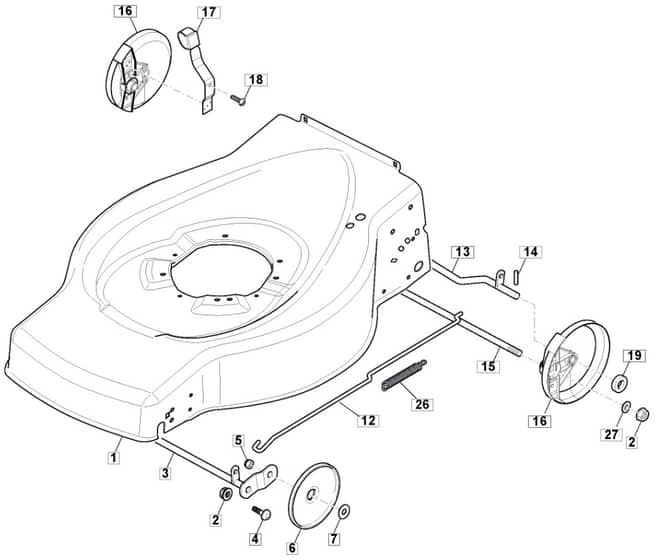

HP45 H - 2016-2017 - 299014633/BQ - Mountfield Rotary Mower Height Adjusting Diagram

HP45 H - 2016-2017 - 299014633/BQ - Mountfield Rotary Mower Height Adjusting Diagram
HP45 H - 2016-2017 - 299014633/BQ - Mountfield Rotary Mower Height Adjusting Diagram

Description

Mountfield HP45 H Parts Diagram

Product Name - HP45H

Model Year - 2016-2017

Model Type - ESL 464

Art.N - 299014633/BQ

Engine Model - Honda GCV 160

Be the first to review this product
0 product questions
Ref. Img. Part No. Details
  1 Grey Deck MO381004745/0
Grey Deck
 Out of stock
£96.52 £80.43

  2 Nut MO122131750/0
Nut
 In stock
£1.90 £1.58

  3 Front Wheel Axle MO381000153/0
Front Wheel Axle
 Out of stock
£51.47 £42.89

  4 Screw MO112760600/1
Screw
 Out of stock
£2.17 £1.81

  5 Nut MO112155000/0
Nut
 In stock
£1.49 £1.24

  6 Protection. Wheel MO322600095/0
Protection. Wheel
 Out of stock
£1.49 £1.24

  7 Antifriction Washer From 01-9-2006 MO325670011/0
Antifriction Washer From 01-9-2006
 Out of stock
£1.49 £1.24

  7 Washer To 31-8-2006 MO122671651/0
Washer To 31-8-2006
 In stock
£1.90 £1.58

  12 Adjustment Rod MO122033317/0
Adjustment Rod
 Out of stock
£18.01 £15.01

  13 Rear Wheel Axle From 01-9-2006 MO381000159/0
Rear Wheel Axle From 01-9-2006
 Out of stock
£23.16 £19.30

  14 Pin MO122753001/0
Pin
 Out of stock
£1.49 £1.24

  15 Rear Stiffening Axle MO122033369/0
Rear Stiffening Axle
 Out of stock
£19.04 £15.87

  16 Protection MO322600106/1
Protection
 Out of stock
£6.50 £5.42

  17 Lever. Height Adjustment MO381003303/0
Lever. Height Adjustment
 Out of stock
£16.79 £13.99

  18 Screw MO112728689/0
Screw
 Out of stock
£1.36 £1.13

  19 Spacer From 01-9-2006 MO322170622/0
Spacer From 01-9-2006
 Out of stock
£1.36 £1.13

  19 Washer To 31-8-2006 MO112521370/0
Washer To 31-8-2006
 Out of stock
£1.49 £1.24

  26 Spring Only for 534 Models MO122446186/0
Spring Only for 534 Models
 Out of stock
£5.15 £4.29

  27 Washer D.12.6 X 24 X 0.6 MO122675100/0
Washer D.12.6 X 24 X 0.6
 Out of stock
£1.75 £1.46


Description

Mountfield HP45 H Parts Diagram

Product Name - HP45H

Model Year - 2016-2017

Model Type - ESL 464

Art.N - 299014633/BQ

Engine Model - Honda GCV 160
