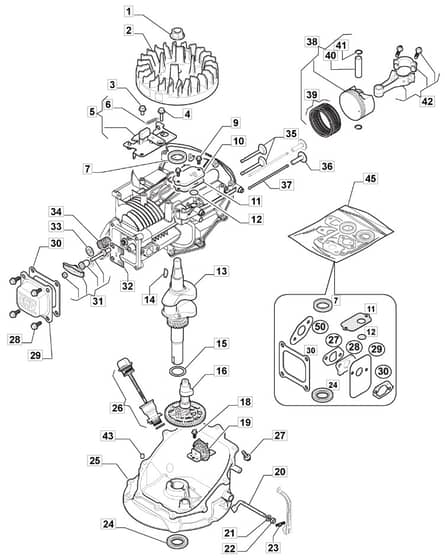

HP41 - 2021 - 297411043/MC - Mountfield Rotary Mower Crankshaft Diagram

HP41 - 2021 - 297411043/MC - Mountfield Rotary Mower Crankshaft Diagram
HP41 - 2021 - 297411043/MC - Mountfield Rotary Mower Crankshaft Diagram

Description

Mountfield HP41 Parts Diagram

Model Year - 2021

Model Type - EP 414

Art.N - 297411043/MC

Engine Model - ST 120 OHV Autochoke

Be the first to review this product
0 product questions
Ref. Img. Part No. Details
  1 Nut MO118550336/0
Nut
 Out of stock
£5.82 £4.85

  2 Flywheel Ass.Y MO118550905/0
Flywheel Ass.Y
 Out of stock
£77.86 £64.88

  5 Flywheel Brake.Stop Switch Assy MO118551483/0
Flywheel Brake.Stop Switch Assy
 Out of stock
£37.93 £31.61

  7 Oil Seal MO118550300/0
Oil Seal
 Out of stock
£6.97 £5.81

  12 Valve MO118550902/0
Valve
 Out of stock
£1.90 £1.58

  13 Crankshaft MO118551488/0
Crankshaft
 Out of stock
£102.94 £85.78

  14 Woodruff Key MO118550288/0
Woodruff Key
 Out of stock
£5.96 £4.97

  15 Washer MO118550283/0
Washer
 Out of stock
£3.25 £2.71

  16 Camshaft Assy MO118550890/0
Camshaft Assy
 Out of stock
£29.80 £24.83

  18 Screw MO112789000/0
Screw
 Out of stock
£1.49 £1.24

  19 Speed Governor Assy MO118550888/0
Speed Governor Assy
 Out of stock
£15.98 £13.32

  20 Shaft. Governor Arm MO118550936/0
Shaft. Governor Arm
 Out of stock
£6.23 £5.19

  24 Oil Seal MO118550379/0
Oil Seal
 Out of stock
£6.50 £5.42

  26 Tank Cap MO118550887/0
Tank Cap
 Out of stock
£10.56 £8.80

  27 Screw MO112791500/0
Screw
 Out of stock
£1.49 £1.24

  28 Bolt MO118551276/0
Bolt
 Out of stock
£3.25 £2.71

  29 Cover Comp. Head MO118550891/0
Cover Comp. Head
 Out of stock
£12.94 £10.78

  30 Packing Head Cover MO118550892/0
Packing Head Cover
 Out of stock
£3.12 £2.60

  31 Valve Arm Set MO118550893/0
Valve Arm Set
 Out of stock
£12.66 £10.55

  35 Valve Assy. Intake + Exhaust MO2135030
Valve Assy. Intake + Exhaust
 In stock
£1.36 £1.13

  36 Valve Lifter Assy MO118550291/0
Valve Lifter Assy
 Out of stock
£9.35 £7.79

  37 Push Rod MO118550912/0
Push Rod
 Out of stock
£6.91 £5.76

  38 Piston MO118551482/0
Piston
 Out of stock
£64.27 £53.56

  39 Piston. Ring Set MO118551445/0
Piston. Ring Set
 Out of stock
£26.00 £21.67

  40 Piston Pin MO118550915/0
Piston Pin
 Out of stock
£5.15 £4.29

  41 Washer. Piston Pin MO118550914/0
Washer. Piston Pin
 Out of stock
£1.49 £1.24

  42 Connecting Rod Assy MO118551487/0
Connecting Rod Assy
 Out of stock
£37.93 £31.61

  45 Engine Gasket Set MO118550940/0
Engine Gasket Set
 Out of stock
£24.38 £20.32


Description

Mountfield HP41 Parts Diagram

Model Year - 2021

Model Type - EP 414

Art.N - 297411043/MC

Engine Model - ST 120 OHV Autochoke
