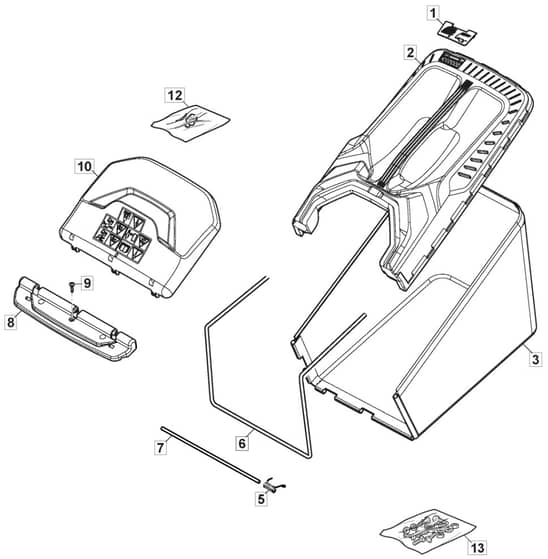

HP185 - 2019-2022 - 2L0481023/MC - Mountfield Rotary Mower Grass Bag Diagram

Name: HP185 - 2019-2022 - 2L0481023/MC - Mountfield Rotary Mower Grass Bag Diagram
SKU: hp185_2l0481023_mc_grass_bag-group
Price: 1.23 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

HP185 - 2019-2022 - 2L0481023/MC - Mountfield Rotary Mower Grass Bag Diagram

Description

Mountfield HP185 Parts Diagram

Product Name - HP185

Model Year - 2019-2022

Model Type - CP1 484

Art.N - 2L0481023/MC

Engine Model - Briggs & Stratton 300 Series

Be the first to review this product

0 product questions

	Part No.	Details
1	MO322486497/0 Out of stock	Rear Door	£1.66 £1.38
2	MO322486496/0 Out of stock	Grass-Box. Upper Part Grey	£30.55 £25.46
3	MO181102422/0 In stock	Black Fabric Box Black without Logo	£39.47 £32.89
5	MO122450479/0 Out of stock	Spring	£3.22 £2.68
6	MO122608525/2 Out of stock	Lower Stiffening	£12.85 £10.71
7	MO122517884/0 Out of stock	Pin	£4.82 £4.02
8	MO322109594/0 Out of stock	Stone Guard Support. Black Black	£5.72 £4.77
9	MO112728697/0 In stock	Screw	£1.48 £1.23
10	MO322600355/1 Out of stock	Stone Guard. Black Black	£11.58 £9.65
12	MO381008735/0 In stock	Outfit. Plastic Pin Only Plastic Pin - Plastic Pin is also available on the screw pocket	£1.79 £1.49
13	MO381008639/0 In stock	Grasscatcher Screw Pack	£1.66 £1.38
