HP185 - 2015-2019 - 299164623/SF - Mountfield Rotary Mower Deck Diagram

Description

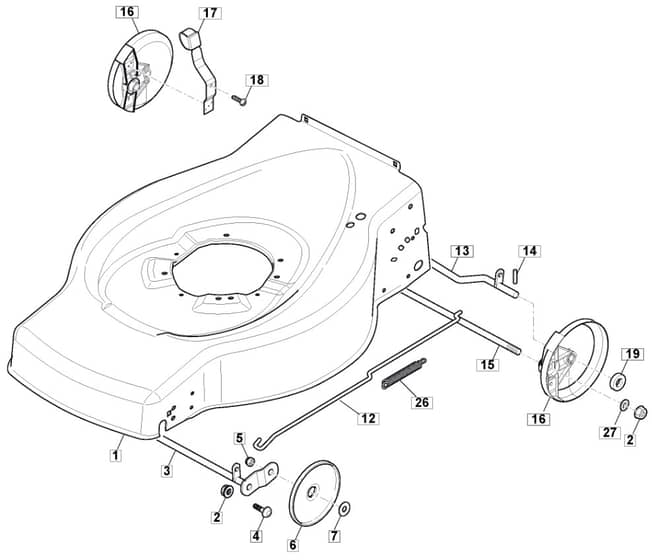

Mountfield HP185 Parts Diagram

Product Name - HP185

Model Year - 2015-2019

Model Type - ESL 464

Art.N - 299164623/SF

Engine Model - Briggs & Stratton 300 Series

Be the first to review this product

0 product questions

	Part No.	Details
1	MO381002538/0 Out of stock	Red Deck	£103.12 £85.93
2	MO122131750/0 In stock	Nut	£1.87 £1.56
3	MO381000153/0 Out of stock	Front Wheel Axle	£50.93 £42.44
4	MO112760600/1 Out of stock	Screw	£2.15 £1.79
5	MO112155000/0 In stock	Nut	£1.48 £1.23
6	MO322600095/0 Out of stock	Protection. Wheel	£1.66 £1.38
7	MO325670011/0 Out of stock	Antifriction Washer From 01-9-2006	£1.66 £1.38
7	MO122671651/0 In stock	Washer To 31-8-2006	£1.87 £1.56
12	MO122033317/0 Out of stock	Adjustment Rod	£17.81 £14.84
13	MO381000159/0 Out of stock	Rear Wheel Axle From 01-9-2006	£23.04 £19.20
14	MO122753001/0 In stock	Pin	£1.48 £1.23
15	MO122033369/0 Out of stock	Rear Stiffening Axle	£7.76 £6.47
16	MO322600106/1 Out of stock	Protection	£6.36 £5.30
17	MO381003303/0 Out of stock	Lever. Height Adjustment	£16.43 £13.69
18	MO112728689/0 Out of stock	Screw	£1.34 £1.12
19	MO322170622/0 Out of stock	Spacer From 01-9-2006	£1.40 £1.17
19	MO112521370/0 Out of stock	Washer To 31-8-2006	£1.48 £1.23
26	MO122446186/0 Out of stock	Spring Only for 534 Models	£5.09 £4.24
27	MO122675100/0 Out of stock	Washer D.12.6 X 24 X 0.6	£1.74 £1.45
