HP180 R - 2016-2018 - 299484043/M16 - Mountfield Rotary Mower Deck Diagram

Description

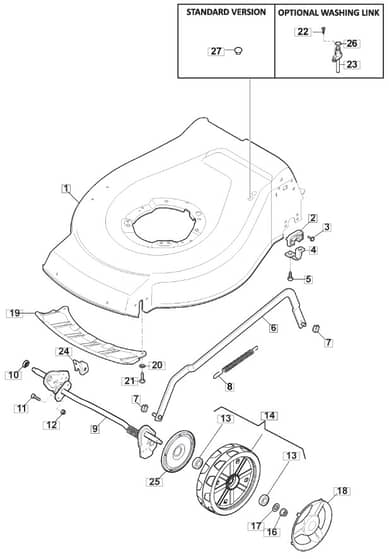

Mountfield HP180 R Parts Diagram

Product Name - HP180R

Model Year - 2016-2018

Model Type - NTL 484-R

Art.N - 299484043/M16

Engine Model - RS100 OHV

Be the first to review this product

0 product questions

	Part No.	Details
1	MO381004619/0 Out of stock	Red Deck	£184.60 £153.83
2	MO322785304/1 Out of stock	Support	£2.29 £1.91
4	MO322545154/0 Out of stock	Plate	£1.66 £1.38
5	MO112728697/0 In stock	Screw	£1.48 £1.23
6	MO381002041/0 Out of stock	Rod. Height Adjustment To 31-8-2017	£31.82 £26.52
6	MO381002051/0 Out of stock	Rod. Height Adjustment From 01-9-2017	£34.37 £28.64
7	MO112436050/0 In stock	Plate	£1.74 £1.45
8	MO122446193/0 Out of stock	Spring	£4.55 £3.79
9	MO381302925/0 Out of stock	Rear Wheel Axle	£26.74 £22.28
10	MO122171002/0 Out of stock	Spacer	£1.48 £1.23
11	MO112727803/0 Out of stock	Screw	£1.48 £1.23
12	MO112154510/0 In stock	Nut	£1.48 £1.23
13	MO119216035/0 Out of stock	Bearing	£3.35 £2.79
14	MO381007448/1 Out of stock	Wheel - Short Hub	£10.94 £9.12
16	MO112155000/0 In stock	Nut	£1.48 £1.23
17	MO112521350/0 In stock	Washer	£1.48 £1.23
18	MO322110687/0 Out of stock	Hub Cap Grey	£2.42 £2.02
19	MO322500102/0 Out of stock	Front Combi	£4.84 £4.03
20	MO112523000/1 Out of stock	Washer	£1.48 £1.23
21	MO112728124/0 Out of stock	Screw	£1.48 £1.23
22	MO112728450/0 In stock	Screw Only With Muclhing	£1.48 £1.23
23	MO322034002/0 Out of stock	Washing Connection Only With Muclhing	£1.66 £1.38
24	MO325755031/2 Out of stock	Bracket	£4.84 £4.03
25	MO322600247/0 Out of stock	Protection. Wheel	£4.33 £3.61
26	MO119035000/0 Out of stock	Or Ring	£4.82 £4.02
27	MO322820077/1 Out of stock	Pvc Deck Cap	£1.66 £1.38
