HP164 - 2013-2019 - 297411048/SF - Mountfield Rotary Mower Deck Diagram

Name: HP164 - 2013-2019 - 297411048/SF - Mountfield Rotary Mower Deck Diagram
SKU: hp164_297411048_sf_deck-group
Price: 1.23 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

HP164 - 2013-2019 - 297411048/SF - Mountfield Rotary Mower Deck Diagram

Description

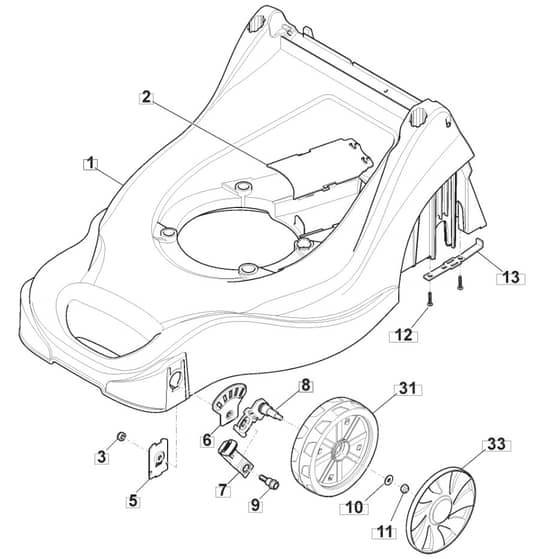

Mountfield HP164 Parts Diagram

Product Name - HP164

Model Year - 2013-2019

Model Type - EP 414

Art.N - 297411048/SF

Be the first to review this product

0 product questions

	Part No.	Details
1	MO322066750/0 Out of stock	Red Deck	£72.56 £60.47
1	MO322066752/0 Out of stock	Red Deck Dark Red	£72.56 £60.47
2	MO322060245/0 Out of stock	Belt Protection	£3.18 £2.65
3	MO112154210/0 In stock	Nut	£1.61 £1.34
5	MO322785361/0 Out of stock	Support. Wheel	£2.29 £1.91
6	MO322735599/0 Out of stock	Sector. Height Adjustment	£3.95 £3.29
7	MO381003352/0 Out of stock	Lever. Height Adjustment	£7.00 £5.83
8	MO381005163/0 Out of stock	Wheel Support	£6.62 £5.52
9	MO122519811/0 Out of stock	Pin	£1.48 £1.23
10	MO112521350/0 In stock	Washer	£1.48 £1.23
11	MO112155000/0 In stock	Nut	£1.48 £1.23
12	MO112728690/0 Out of stock	Screw	£1.48 £1.23
13	MO322608563/0 Out of stock	Deck Rear Stiffening	£2.54 £2.12
31	MO322686100/0 In stock	Wheel Ø 175	£5.99 £4.99
33	MO322110642/0 Out of stock	Hub Cap D.175 [Grey]	£2.29 £1.91
