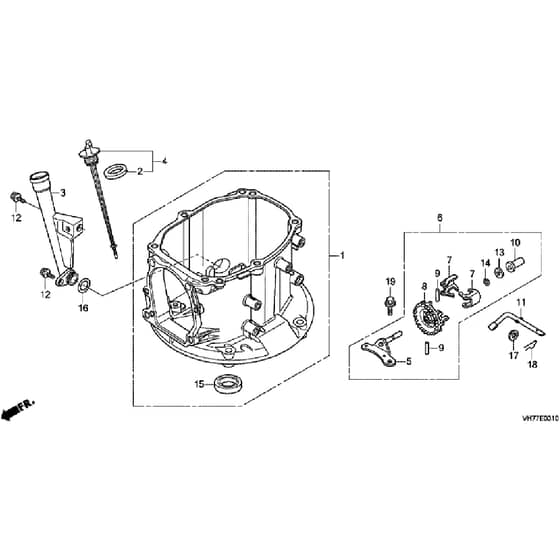

Honda HRX537C6 - VYEA - Crankcase Diagram

Honda HRX537C6 - VYEA -  Crankcase Diagram
Honda HRX537C6 - VYEA -  Crankcase Diagram

Description

Honda HRX537C6 - VYEA Rotary Mower Parts Diagram

Ref. Img. Part No. Details
  1 Crankcase Assy
Crankcase Assy
HP11100-Z9L-417 Out of stock
Crankcase Assy
£332.24 £276.87

  2 Gasket
Gasket
HP15625-ZE6-000 Out of stock
Gasket
£3.16 £2.63

  3 Oil Filler
Oil Filler
HP15631-Z9L-000 Out of stock
Oil Filler
£19.73 £16.44

  4 Oil Level Gauge Assy
Oil Level Gauge Assy
HP15650-Z9L-000 Out of stock
Oil Level Gauge Assy
£11.09 £9.24

  5 Governor Holder Shaft
Governor Holder Shaft
HP16508-ZM0-010 Out of stock
Governor Holder Shaft
£7.31 £6.09

  6 Governor Assy
Governor Assy
HP16510-ZM0-010 Out of stock
Governor Assy
£23.15 £19.29

  7 Governor Weight
Governor Weight
HP16511-ZL8-000 Out of stock
Governor Weight
£1.80 £1.50

  8 Governor Weight Holder
Governor Weight Holder
HP16512-ZM0-000 Out of stock
Governor Weight Holder
£6.34 £5.28

  9 Governor Weight Pin
Governor Weight Pin
HP16513-ZE1-000 Out of stock
Governor Weight Pin
£2.32 £1.93

  10 Governor Slider
Governor Slider
HP16531-ZE1-000 Out of stock
Governor Slider
£4.96 £4.13

  10 Governor Slider
Governor Slider
HP16531-Z1T-000 Out of stock
Governor Slider
£4.73 £3.94

  11 Governor Arm Saft
Governor Arm Saft
HP16541-Z9L-000 Out of stock
Governor Arm Saft
£4.56 £3.80

  12 Flange Bolt 6X14 Ct200
Flange Bolt 6X14 Ct200
HP90013-ZL8-000 Out of stock
Flange Bolt 6X14 Ct200
£1.30 £1.08

  13 Thrust Washer 6Mm
Thrust Washer 6Mm
HP90451-ZE1-000 Out of stock
Thrust Washer 6Mm
£2.16 £1.80

  13 Washer
Washer
HP90451-Z1T-000 Out of stock
Washer
£2.08 £1.73

  14 Governor Holder Clip
Governor Holder Clip
HP90602-ZE1-000 Out of stock
Governor Holder Clip
£3.91 £3.26

  15 Oil Seal 28 X 41.25 X 6
Oil Seal 28 X 41.25 X 6
HP91202-ZM0-V31 Out of stock
Oil Seal 28 X 41.25 X 6
£9.73 £8.11

  15 Oil Seal 28 X 41.25 X 6
Oil Seal 28 X 41.25 X 6
HP91202-Z9L-003 In stock
Oil Seal 28 X 41.25 X 6
£15.68 £13.07

  15 Oil Seal
Oil Seal
HP91202-Z9R-003 Out of stock
Oil Seal
£14.72 £12.27

  16 O-Ring 19.1X2.2
O-Ring 19.1X2.2
HP91301-Z9L-000 Out of stock
O-Ring 19.1X2.2
£1.76 £1.47

  17 Plain Washer 6Mm
Plain Washer 6Mm
HP94101-06800 Out of stock
Plain Washer 6Mm
£1.09 £0.91

  18 Lock Pin 8Mm
Lock Pin 8Mm
HP94251-08000 Out of stock
Lock Pin 8Mm
£1.75 £1.46

  19 Flange Bolt 6 X 14
Flange Bolt 6 X 14
HP95701-0601408 Out of stock
Flange Bolt 6 X 14
£1.50 £1.25


Description

Honda HRX537C6 - VYEA Rotary Mower Parts Diagram
