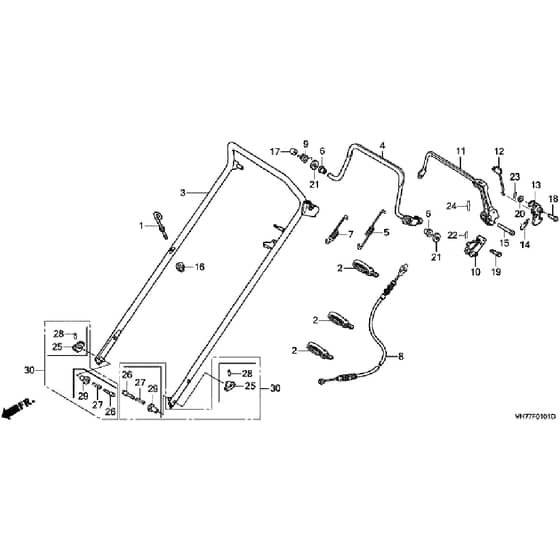

Honda HRX537C6 - HYEA - Handle Pipe Diagram

Name: Honda HRX537C6 - HYEA - Handle Pipe Diagram
SKU: hrx537c6_hyea_handle_pipe-group
Price: 0.52 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Honda HRX537C6 - HYEA - Handle Pipe Diagram

Description

Honda HRX537C6 - HYEA Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HP28475-VL0-S00 Out of stock	Rope Guide	£4.86 £4.05
2	HP32901-VB5-A00 Out of stock	Cable Tie	£5.29 £4.41
3	HP53110-VH7-E00ZA Out of stock	Handle	£136.08 £113.40
4	HP54410-VE1-R00 Out of stock	Clutch Lever	£29.93 £24.94
5	HP54411-VB3-800 In stock	Clutch Spring	£9.92 £8.27
6	HP54412-952-770 Out of stock	Clutch Lever Bush	£4.62 £3.85
7	HP54414-VA3-P00 In stock	Clutch Lever Return Spring	£6.12 £5.10
8	HP54530-VH7-000 In stock	Roto-Stop Cable	£24.32 £20.27
9	HP75118-VA3-J00 In stock	Stop Return Spring R H	£7.56 £6.30
10	HP75128-VE1-R00 Out of stock	Roto-Stop Arm	£14.84 £12.37
11	HP75161-VE0-L01 Out of stock	Roto-Stop Lever Assy	£58.56 £48.80
12	HP75165-VE0-L00 Out of stock	Ratchet Push Rod	£9.96 £8.30

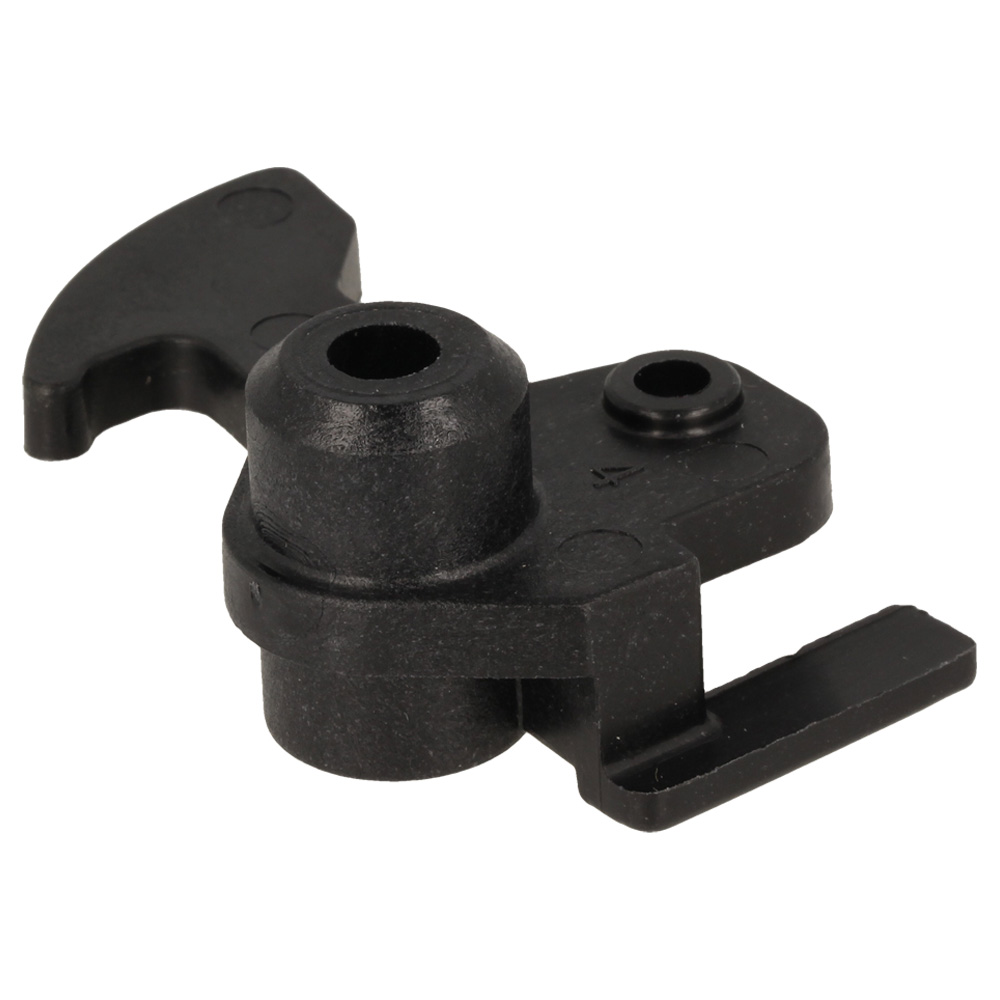

13	HP75166-VE1-R00 Out of stock	Lever Lock	£3.94 £3.28
14	HP75168-VA4-000 Out of stock	Pawl Spring	£5.51 £4.59
15	HP90106-VA4-800 Out of stock	Clutch Lever Pin	£9.95 £8.29
16	HP90303-VG3-000 Out of stock	Lock Nut 6Mm	£0.62 £0.52
17	HP90552-VA3-J00 Out of stock	Collar 8 X 11 X 13.5	£5.89 £4.91
18	HP90753-VA3-J00 In stock	Lever Hinge Lock Pin	£4.80 £4.00
19	HP90754-VA9-P40 Out of stock	Cable Joint Pin	£3.08 £2.57
20	HP94101-06800 Out of stock	Plain Washer 6Mm	£1.09 £0.91
21	HP94101-08000 Out of stock	Plain Washer 8Mm	£1.09 £0.91
22	HP94201-16120 Out of stock	Split Pin	£1.24 £1.03
23	HP94251-06000 Out of stock	Lock Pin 6Mm	£1.45 £1.21
24	HP94251-08000 Out of stock	Lock Pin 8Mm	£1.75 £1.46
25	HP53125-VL0-B00ZA Out of stock	Handle Grip	£17.17 £14.31
26	HP53158-VL0-B01 Out of stock	Pin 8Mm	£2.32 £1.93
27	HP53367-VL0-B00 Out of stock	Handle Adjusting Spring	£1.26 £1.05
28	HP90751-VL0-B00 Out of stock	Pin	£1.16 £0.97
29	HP91551-VL0-B00 Out of stock	Handle Height Collar	£3.95 £3.29
