Honda HRX537C2 - HZEA - MAGA 1700001- Rear Wheel Diagram

Description

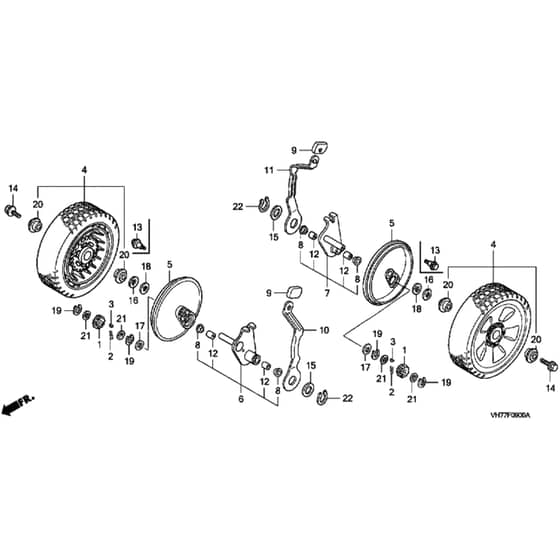

Honda HRX537C2 - HZEA Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HP42661-VH7-000 In stock	Pinion Gear	£7.66 £6.38
2	HP42668-VE2-800 In stock	Pawl Spring	£1.10 £0.92
3	HP42672-VE2-800 In stock	Ratchet Key	£3.84 £3.20
4	HP42710-VH7-010ZA Out of stock	Rear Wheel	£47.96 £39.97
5	HP42866-VH7-000 Out of stock	Cover	£12.60 £10.50
6	HP42930-VH7-010 Out of stock	Arm	£29.80 £24.83
7	HP42940-VH7-010 Out of stock	Adjuster Arm Front L H	£29.46 £24.55
8	HP42944-VE2-801 In stock	Dust Seal 12.7Mm	£9.66 £8.05
9	HP42952-VG3-000ZA In stock	Adjuster Grip	£1.56 £1.30
10	HP42961-VH7-000 Out of stock	Rear Adjuster Plate R H	£17.33 £14.44
11	HP42966-VH7-000 Out of stock	Height Adjuster Lever	£15.90 £13.25
12	HP44327-VE2-801 In stock	Drive Shaft Bush	£8.35 £6.96
14	HP90110-VA4-000 Out of stock	Wheel Bolt	£4.97 £4.14
15	HP90403-952-770 Out of stock	Plain Washer 22Mm	£3.32 £2.77
16	HP90455-VA2-000 In stock	Wheel Washer	£3.18 £2.65
17	HP90502-VE2-800 Out of stock	Thrust Washer 13Mm	£3.96 £3.30
18	HP90505-VG3-000 Out of stock	Thrust Washer 13 X 27 X 1	£0.85 £0.71
19	HP90651-VE2-800 In stock	External Circlip 12.7Mm	£1.46 £1.22
20	HP91056-VL0-B00 In stock	Wheel Bearing	£4.44 £3.70
21	HP91559-VE2-800 In stock	Pinion Gear Collar	£2.08 £1.73
22	HP94511-22000 Out of stock	External Circlip 22Mm	£2.34 £1.95
