Honda HRX537C2 - HZEA - MAGA 1700001- Battery/ Main Harness Diagram

Name: Honda HRX537C2 - HZEA - MAGA 1700001- Battery/ Main Harness Diagram
SKU: hrx537c2_hzea_maga_1700001_battery_main_harness-group
Price: 1.13 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

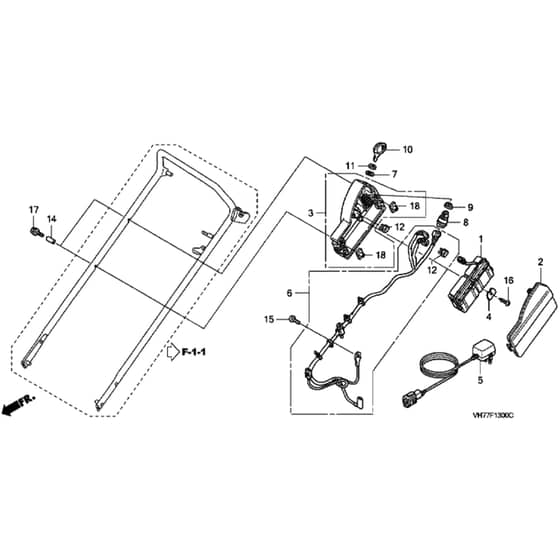

Honda HRX537C2 - HZEA - MAGA 1700001- Battery/ Main Harness Diagram

Description

Honda HRX537C2 - HZEA Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HP31500-VH7-B01 Out of stock	Battery Assy	£115.80 £96.50
2	HP31510-VH7-B00 Out of stock	Battery Cover	£30.60 £25.50
3	HP31550-VH7-B00 Out of stock	Battery Box	£124.68 £103.90
4	HP31552-VH7-B00 Out of stock	Battery Plate	£2.26 £1.88
5	HP31570-VH7-B53 Out of stock	Battery Charger	£46.45 £38.71
6	HP32100-VH7-B00 Out of stock	Wiring Harness	£74.72 £62.27
7	HP33650-KAF-000 Out of stock	Collar	£5.02 £4.18
8	HP35100-VH7-B01 Out of stock	Ignition Switch Assy	£61.32 £51.10
9	HP35102-772-000 Out of stock	Combination Switch Base	£12.60 £10.50

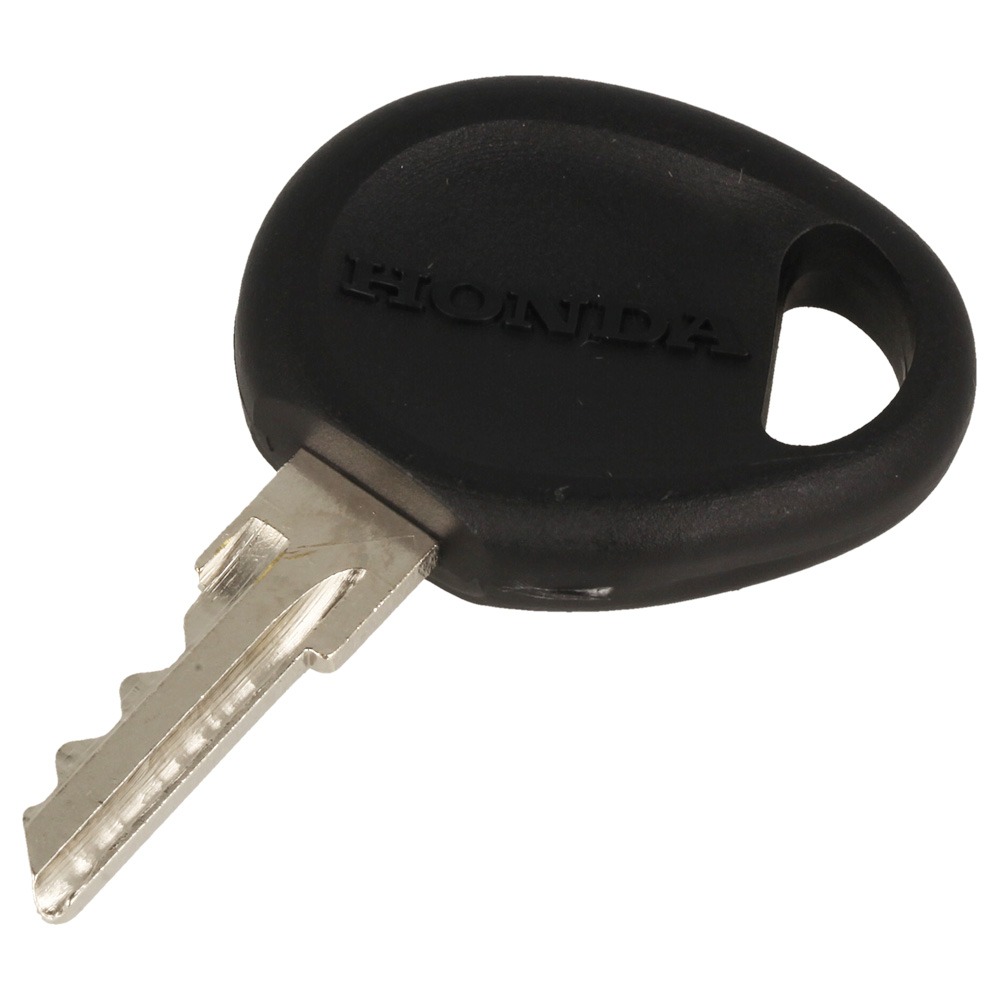

10	HP35110-772-013 Out of stock	Ignition Key	£8.47 £7.06
11	HP35114-VH7-B00 Out of stock	Switch Nut	£2.72 £2.27
12	HP38201-VH7-B00 Out of stock	Fuse	£1.56 £1.30
14	HP91559-VH7-B00 Out of stock	Collar	£2.70 £2.25
15	HP93500-050080A Out of stock	Screw	£1.69 £1.41
16	HP93911-15220 Out of stock	Tapping Screw	£1.80 £1.50
17	HP95701-06035-07 Out of stock	Bolt	£1.36 £1.13
18	HP61304-958-003 Out of stock	Nut	£6.37 £5.31
