Description

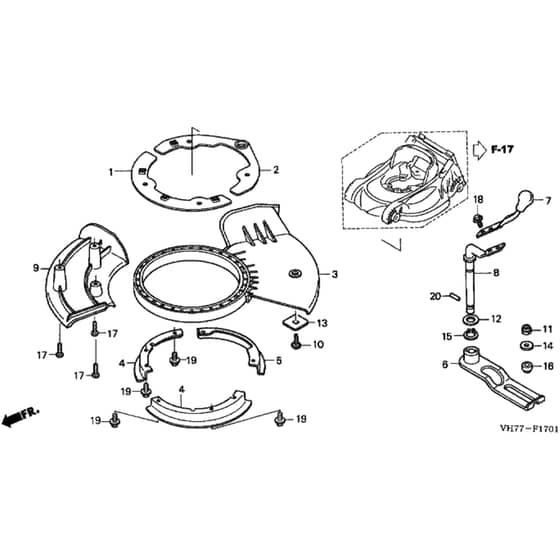

Honda HRX537C1 - HXEA Rotary Mower Parts Diagram

Ref. Img. Part No. Details
  1 Base Plate
Base Plate
HP76256-VH7-000 Out of stock
Base Plate
£14.17 £11.81

  2 Plate
Plate
HP76257-VH7-000 Out of stock
Plate
£40.96 £34.13

  3 Shutter
Shutter
HP76262-VH7-010 Out of stock
Shutter
£32.08 £26.73

  4 Shutter Holder
Shutter Holder
HP76263-VH7-000 Out of stock
Shutter Holder
£12.41 £10.34

  5 Shutter Holder
Shutter Holder
HP76264-VH7-000 Out of stock
Shutter Holder
£12.41 £10.34

  6 Shutter Arm Assy
Shutter Arm Assy
HP76265-VH7-010 In stock
Shutter Arm Assy
£71.44 £59.53

  7 Shutter Lever Assy
Shutter Lever Assy
HP76270-VH7-000ZA Out of stock
Shutter Lever Assy
£32.35 £26.96

  8 Lever Arm
Lever Arm
HP76275-VH7-010 Out of stock
Lever Arm
£27.48 £22.90

  9 Scroll Ramp
Scroll Ramp
HP76286-VH7-010 Out of stock
Scroll Ramp
£31.97 £26.64

  10 Special Bolt 6 X 19
Special Bolt 6 X 19
HP90101-VH7-000 Out of stock
Special Bolt 6 X 19
£2.02 £1.68

  11 Lock Nut 6Mm
Lock Nut 6Mm
HP90303-VG3-000 Out of stock
Lock Nut 6Mm
£0.62 £0.52

  12 Thrust Washer 13Mm
Thrust Washer 13Mm
HP90502-VE2-800 Out of stock
Thrust Washer 13Mm
£3.96 £3.30

  13 Arm Washer
Arm Washer
HP90502-VH7-000 Out of stock
Arm Washer
£14.29 £11.91

  14 Washer 6.568
Washer 6.568
HP90503-VH7-000 Out of stock
Washer 6.568
£1.20 £1.00

  15 External Circlip 12.7Mm
External Circlip 12.7Mm
HP90651-VE2-800 Out of stock
External Circlip 12.7Mm
£1.46 £1.22

  16 Arm Collar
Arm Collar
HP91557-VH7-000 Out of stock
Arm Collar
£3.32 £2.77

  17 Tapping Screw
Tapping Screw
HP93913-25420 Out of stock
Tapping Screw
£1.80 £1.50

  18 Flange Bolt 6X8
Flange Bolt 6X8
HP95701-0600800 In stock
Flange Bolt 6X8
£1.45 £1.21

  19 Flange Bolt 8 X 10
Flange Bolt 8 X 10
HP95701-0801000 Out of stock
Flange Bolt 8 X 10
£1.75 £1.46

  20 Roller
Roller
HP96220-40198 Out of stock
Roller
£1.14 £0.95


Description

Honda HRX537C1 - HXEA Rotary Mower Parts Diagram
